Eltek FP2 48/2000HE 48Vdc 2000W AC / DC module high effciency Part No. 241115.105
Product Discription:The combination of innovative design, efficiency and reliabi...
Product Discription:The combination of innovative design, efficiency and reliabi...
Prduct Name | Flatpack2 48/2000 HE |
Part No. | 241115.105 |
AC input | |
Voltage | 85-300vAC (nominal 185-275Vac) |
Frequency | 45 /66hz |
Maximum Current | 11.6a max atnomial input and full load |
Power Factor | >0.99 at 50% load or more |
Input Proection | Varistors for transletn ; Mains fuse in both lines ; Disconnect |
DC output | |
Voltage | 53.5Vdc (Range:43.5-57.6Vdc) |
Output power | 2000W at nominal input |
Maximum current | 41.7A at 48Vdc |
Current Sharing | ±5% of max current from 10% to 100% |
Output Protection | Overvoltage shundown ; Hot plug in ;Short circult ; High temperature protection |

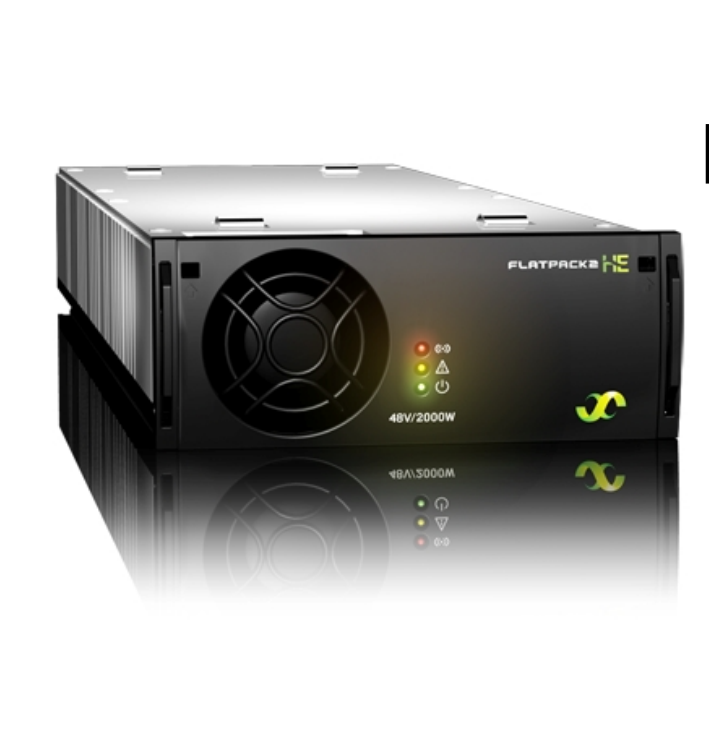

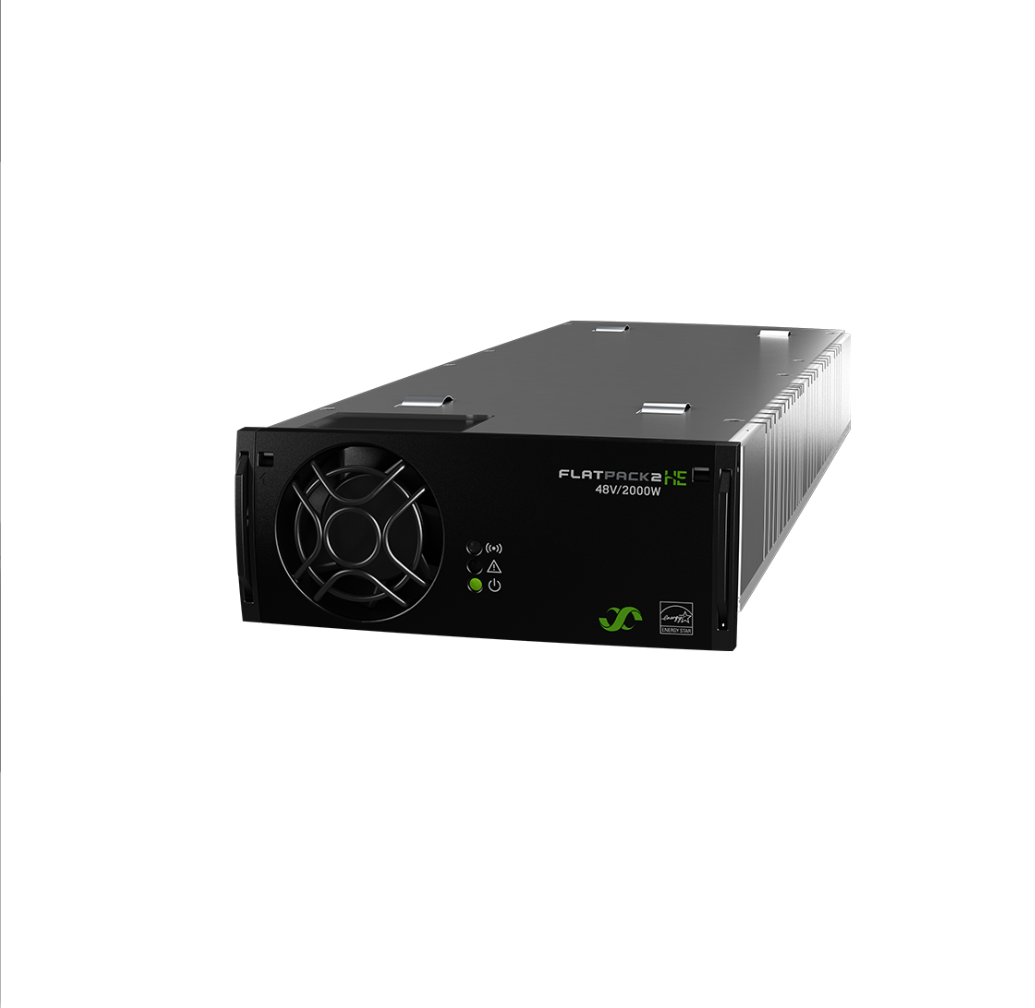

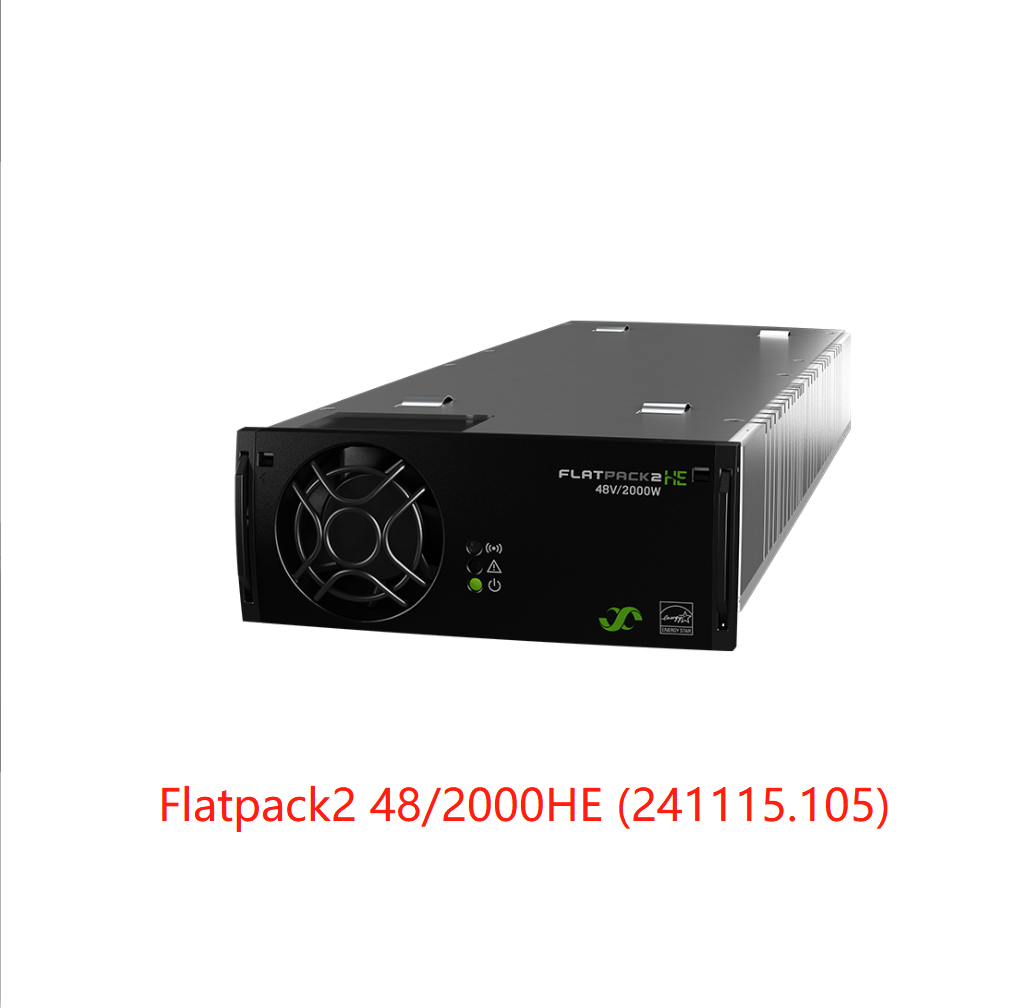

Product Display:
