Eltek Rectifier Flatpack2 48V/3000W HE 95.5% PN.241119.903

Product Description:

The Flatpack2 48/ 3000 HE is installed in vast numbers all over the globe and has an unmatched proven field performance. This, in combination with an efficiency exceeding 95% and its high power density, provides a low total cost of ownership.

Power systems for the Flatpack2 48/ 3000 HE can be designed with output power from 3kW to

3 MW and can hence power any application in your network.

Specrification:

Model	48/ 3000
Part number	241119.903
INPUT DATA
Voltage (nominal)	176 - 275 V AC
Voltage (operating range)	85 - 300 V AC
Frequency	45 - 66 Hz
Current (maximum)	19 A RMS
Power Factor	> 0.99 at 50-100% load
Protection	Fuse in L & N, Varistor, Shutdown above 300 V AC
OUTPUT DATA
Voltage (default)	53.5 V DC
Voltage (adjustable range)	43.2 - 57.6 V DC
Power @ 230 VAC	3000 W
Power @ 85 VAC	1380 W
Current	62.5 A (@ 48 V DC)
Current sharing (10 - 100% load)	±5% of maximum current from 10 to 100% load
Static Voltage regulation (10 - 100% load)	±0.5%
Dynamic Voltage regulation	±5.0% for 10-90% or 90-10% load variation, regulation time < 50ms
Hold up time, 1500 W / 3000 W output power	>20ms / >10ms ; output voltage > 43 V DC
Ripple	< 150 mV peak to peak, 30 MHz bandwidth
Protection	Fuse, Short circuit proof, High temperature protection, Overvoltage shutdown, Hot plug-in inrush current limiting

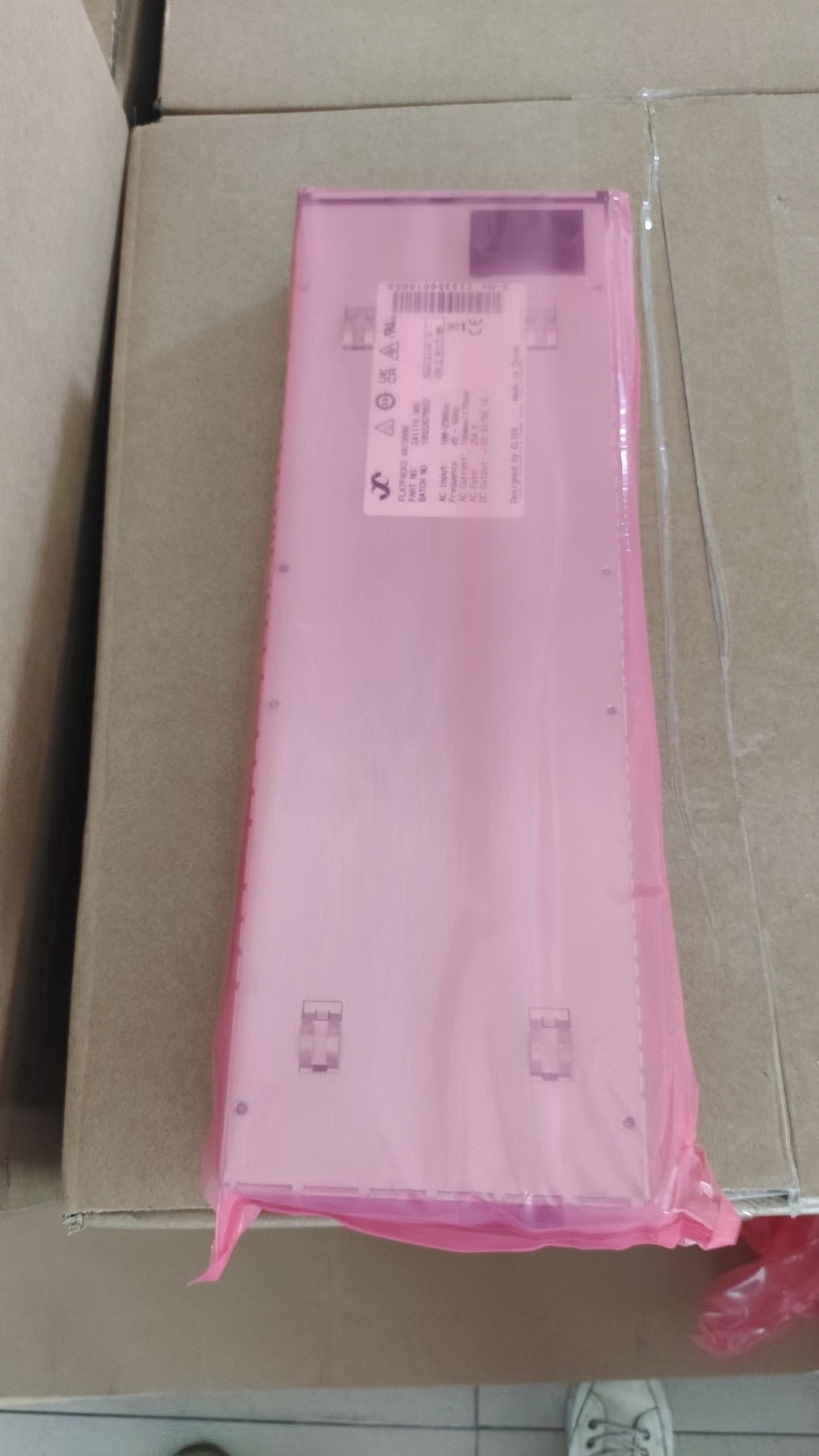

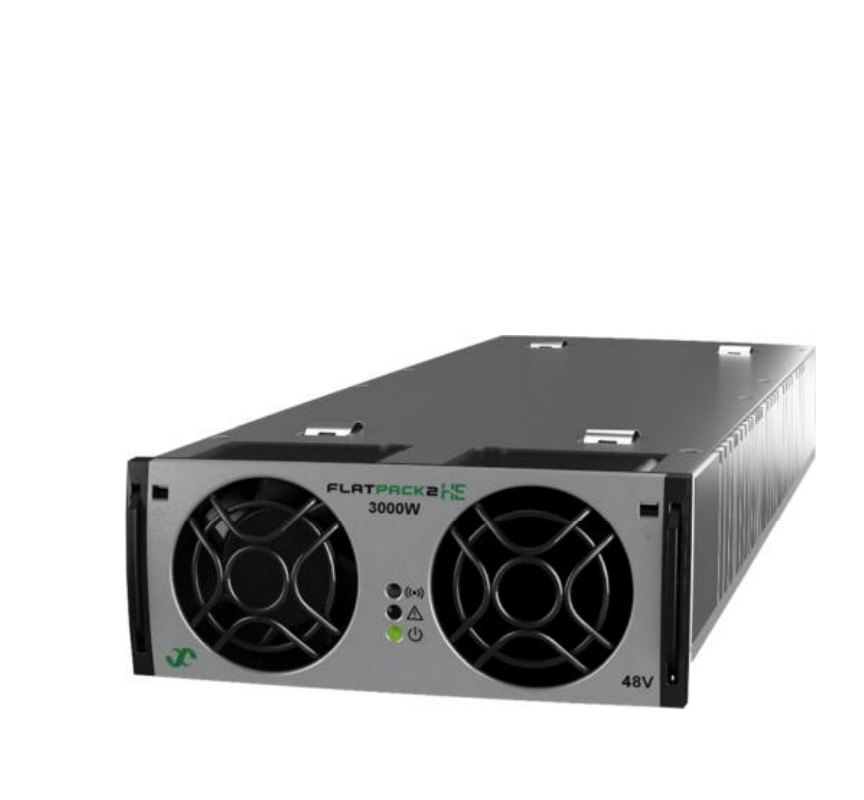

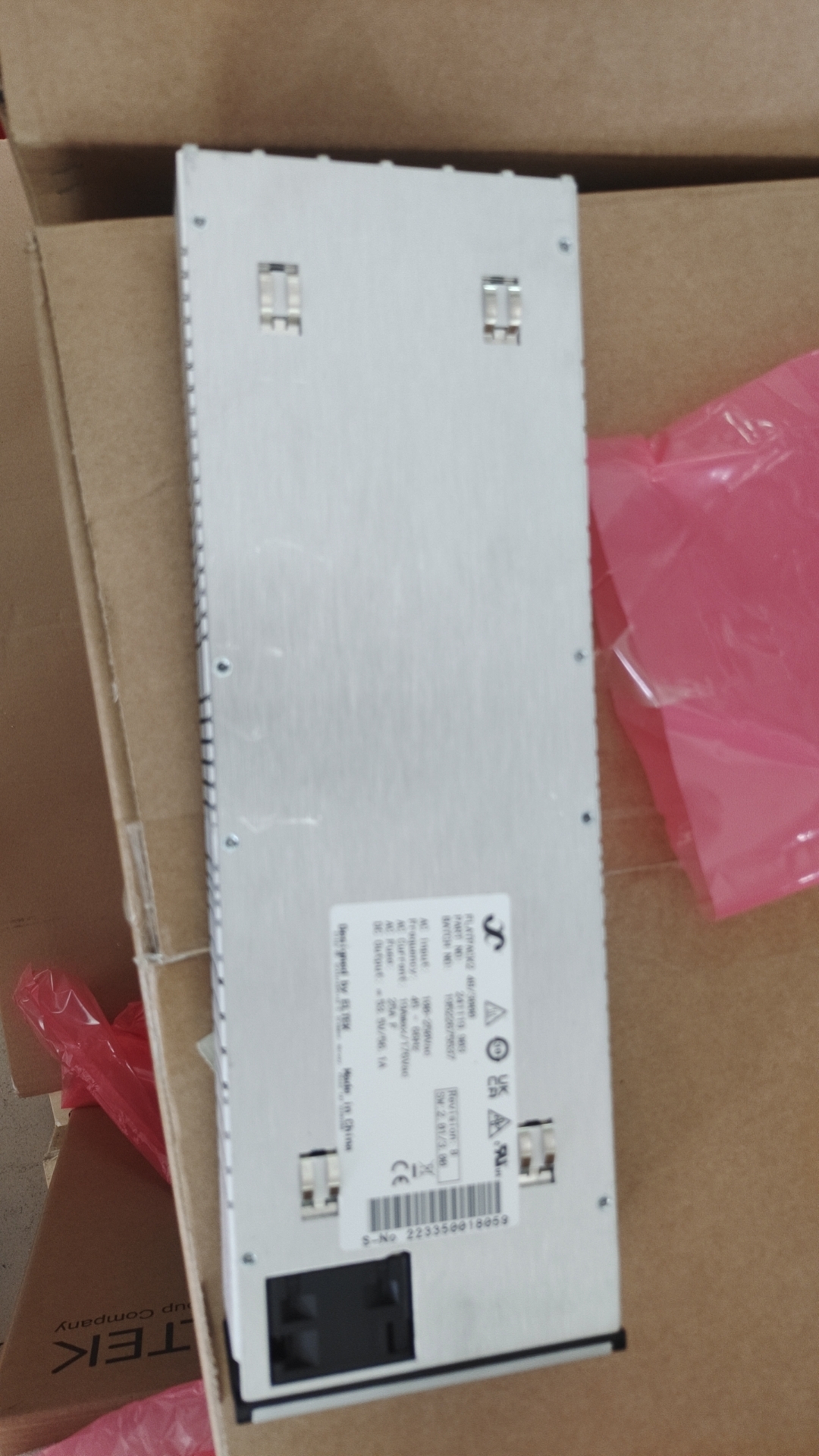

Product Display:

Flatpack 2 483000HE (2).jpg

241119.903 .jpg

241119.903 (4).jpg

241119.903 (3).jpg

241119.903 (2).jpg

video:

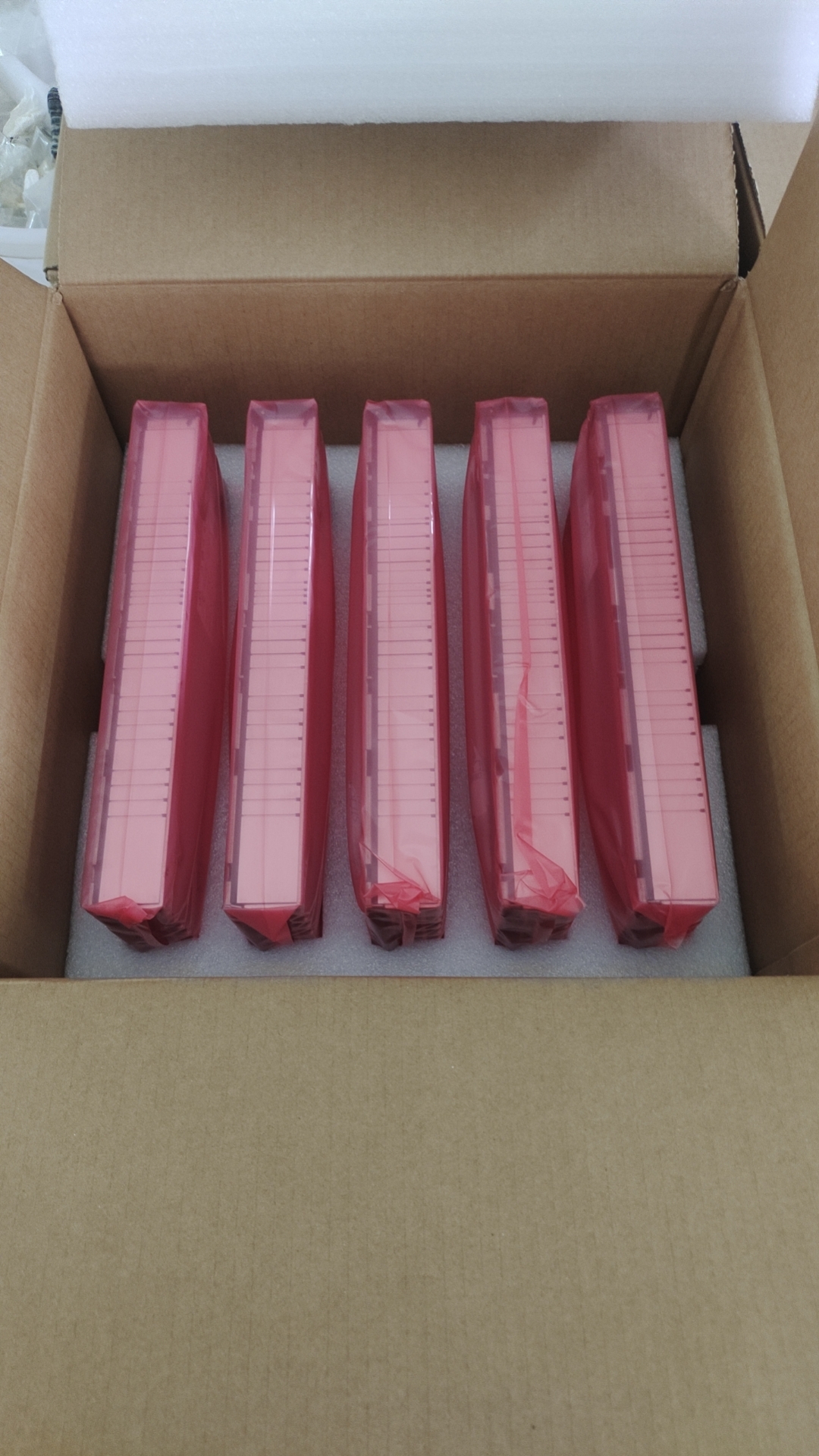

Packing & Deliver:

solutions:

We provide a complete solutions including site survey, propose professional plan according to customer’s request ,technical support, and maintenance service for Telecommunication Companies in and out of China. We have a competent team and a network of trusted Partners around the world.

FAQ :

1. How do you control the quality?

A:All products before the shipment are simulated usage scenarios, load and full load and current sharing test to ensure the quality of the product.

2. What is your minimum order quantity?

A:There is no minimum order quantity, and one can also be done. The only difference is the price and schedule.

3. Can you introduce your company?

A:I am very honored. I will send you the company’s introduction document later to give you a more comprehensive and direct introduction to our company’s information.

4. What are the advantages of your company?

A:Adequate inventory, and supply guarantee for the subsequent renewal of supply, flexible provided according to different to different needs of customers, providing different solutions.

5. Can i send samples?Report it to me along with the price?

A:You can send samples, the samples are subject to large pride, and the freight needs to be borne by you.

6. How do your company deal with the problem on quality?

A:Our company has been doing this industry for almost 10 years. It has already had a certain reputation. We will carefully analyze it. If it is indeed our quality problem, you can rest assured that it will do things according to the contract agreement and will never let you have any after the worries, our service team will be happy to serve you.

7 What about the quality ?

A:100% original with new package. we will test each item before posted to make sure each item with good quality.

8 How many months for guarantee ?

A: 1 year quality guarantee

9 How to deal with any inferior -quality goods ?

A: Goods can be post by with our charge of post fee for any bad quality products within guarantee time.
