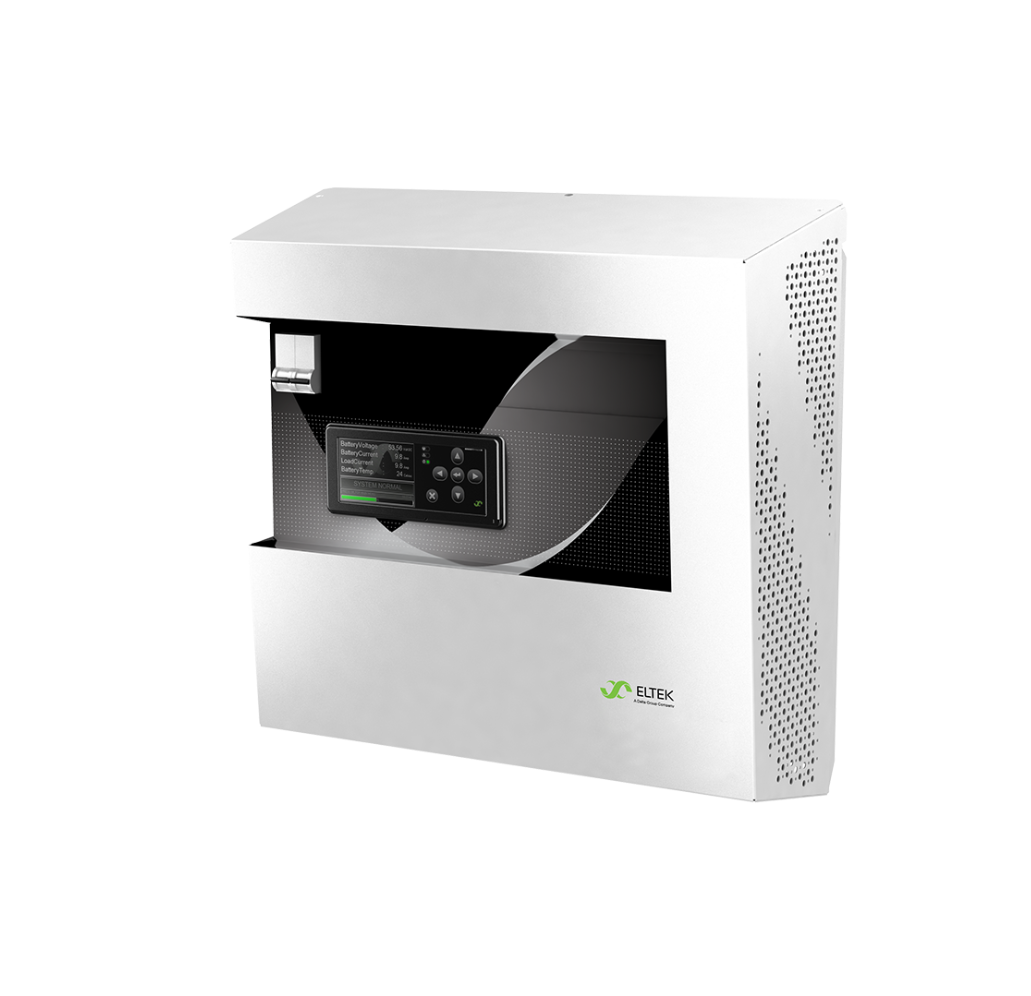

Eltek Compact Wall Mounted Bulk Feed 24-60V Power Supply System CTO30210.000
Product Description:The Flatpack2 Wallbox is built around the Flatpack2 rectifie...
Product Description:The Flatpack2 Wallbox is built around the Flatpack2 rectifie...
| Model | Bulk Feed 24-60V |
| Part number | CTO30210.000 |
| INPUT DATA | |
| Voltage (range) | 85 - 300 VAC |
| Recommended input breaker | 16A for 1 FP2 rectifier in system or 2 FP2 rectifiers with individual feed 25A for 2 FP2 rectifiers in system |
| Protection | Individual fuse in rectifier modules |
| Connection | Directly on input MCB, up to 25mm2 PE screw terminal, max 10 mm2 and M5 cable lug directly to chassis |
| OUTPUT DATA | |
| Voltage (default) | 24-60 VDC |
| NiCad, number of cells supported | 18-40 |
| Pb, number of cells supported | 12-30 |
| Power (maximum) @ nominal input | 4000 W |
| Current (maximum) @ nominal input | See previous page or applicable Flatpack2 rectifier datasheet |
