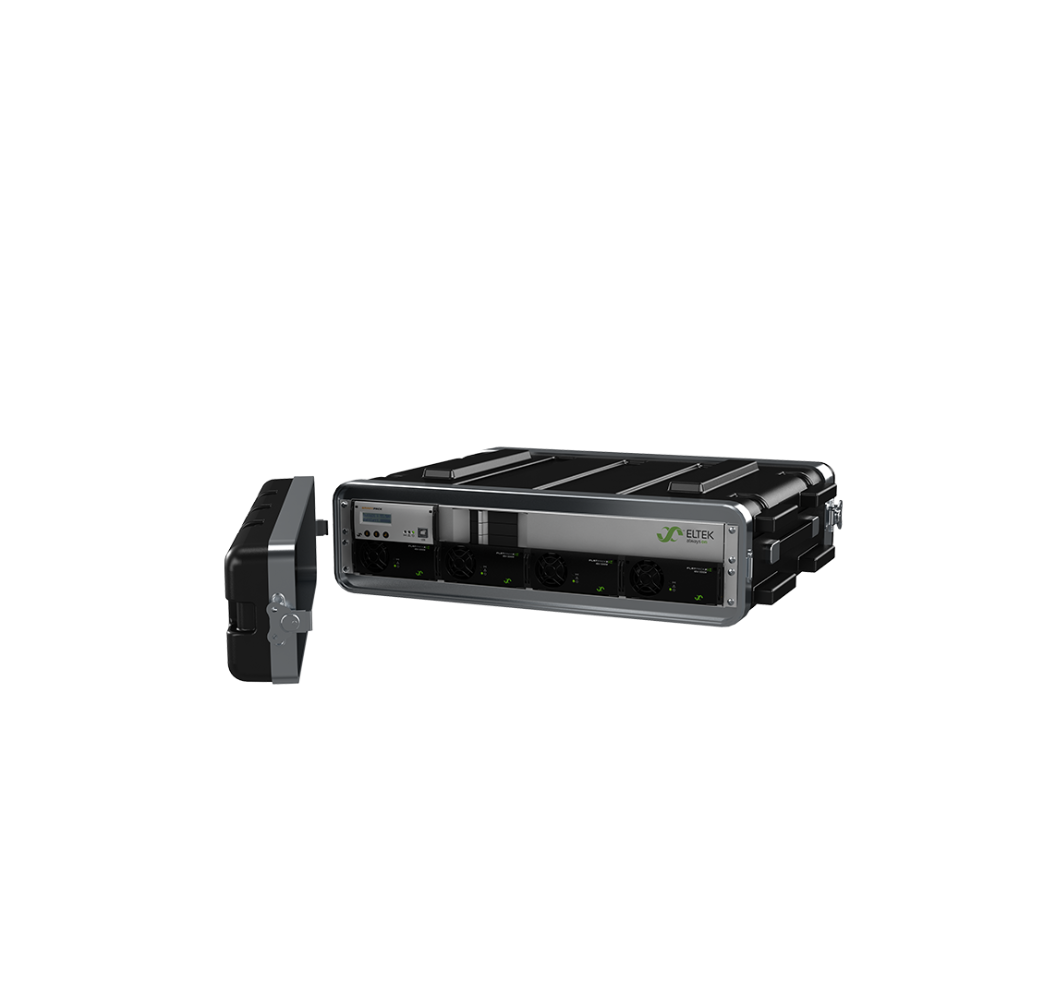

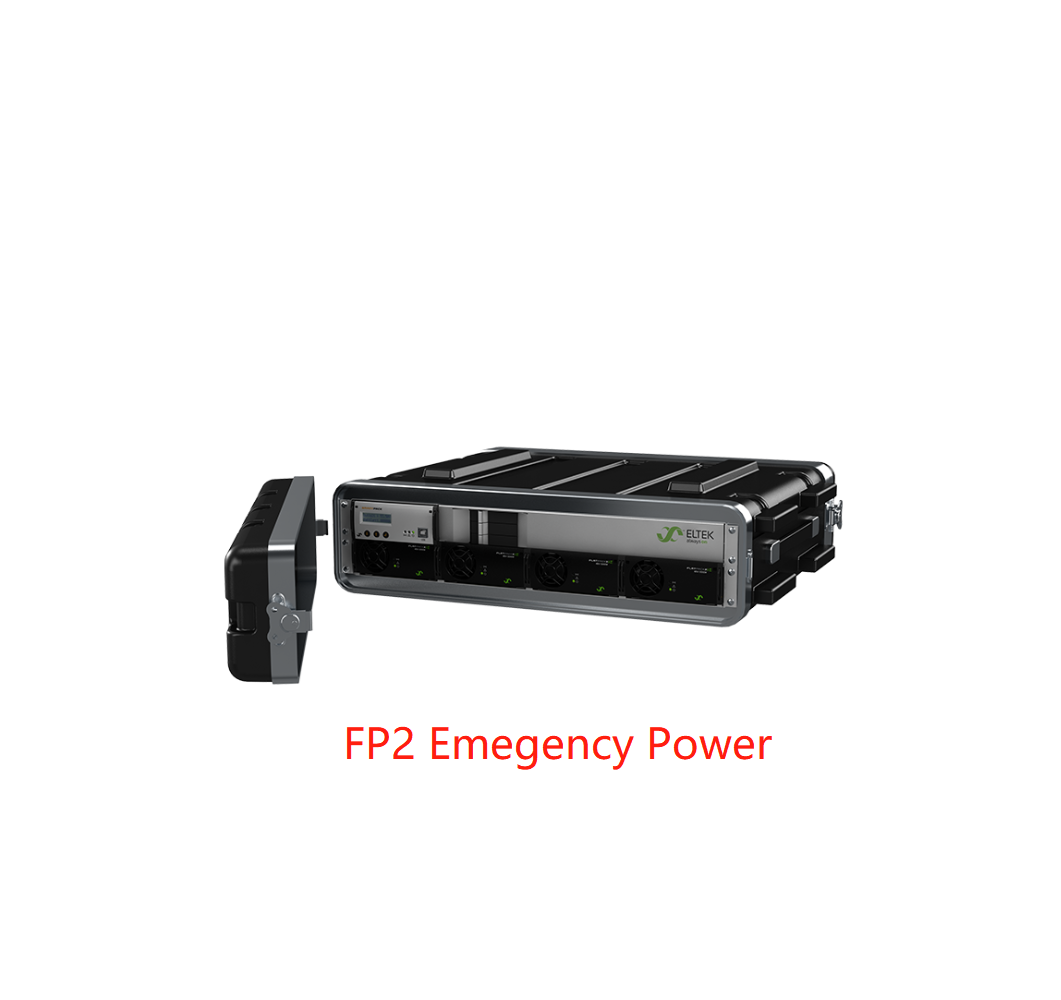

Eltek FP2 Emergency Power FP2 24V to 48V 60V/ 2kW to 3kW M204EP.000
Product Description:The Portable Emergency Unit is configurable with up to four...
Product Description:The Portable Emergency Unit is configurable with up to four...
Model | Portable Emergency Unit |
Part number | M204EP.0001) |
INPUT DATA | |
Voltage | 85-300VAC single phase (individual feed) 230VAC 3 phase IT network 230/400VAC 3 phase TN network |
Connections | Individual feed by terminal blocks 10mm2 |
Current (maximum) | See datasheet for selected modules |
AC upstream fuse (not included) | See Quick Start Guide for selected modules |
OUTPUT DATA | FP2 2kW |
Voltage | 24/48/60VDC |
Power (maximum) | 8kW |
Current (maximum) | 250A |
Connections | Busbars with 8mm2 cable lugs |
Protection | One output (negative) protected by 150A MCB (See datasheet for selected modules) |
