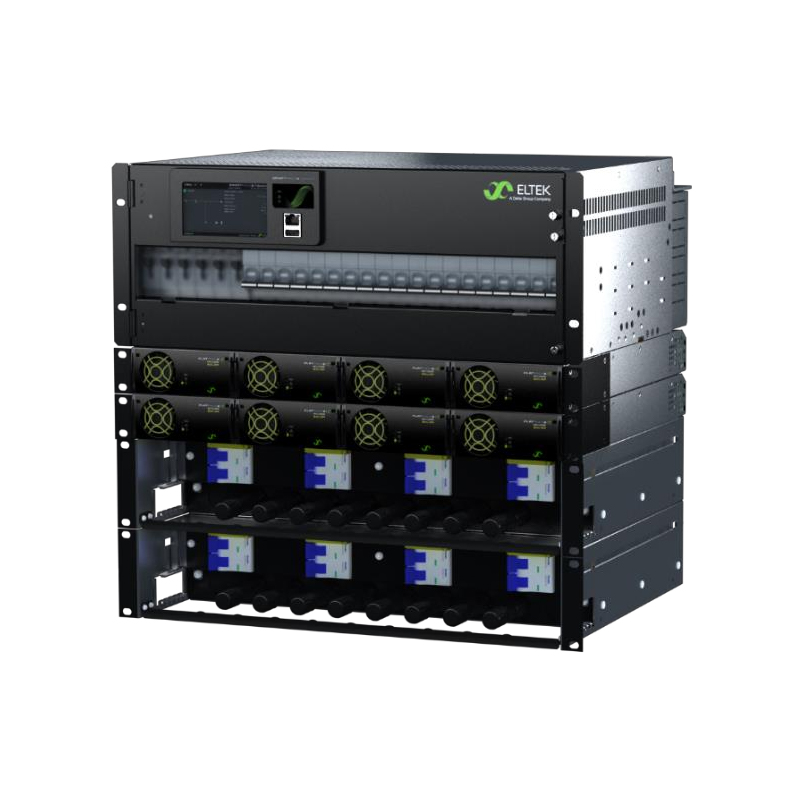

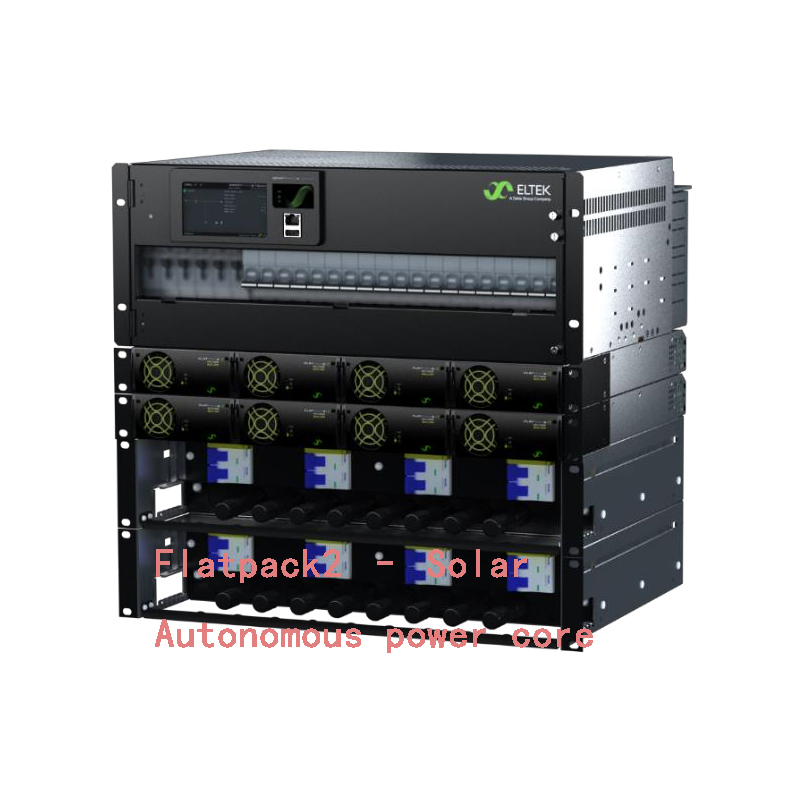

Eltek Flatpack2 Solar Autonomous power core Power supply system
Product Description:Eltek‘s Solar Autonomous power core is based on the Flat...
Product Description:Eltek‘s Solar Autonomous power core is based on the Flat...
| MODEL | 300A DISTRIBUTION |
| Part number (configured power systems) | CTOA0407S.4xxx |
| POWER MODULES | |
| Flatpack2 Solar Charger 1) | Flatpack2 48/3200 HE Solar |
| INPUT DATA (SOLAR CHARGER) | |
| Voltage (range) | 85-420 VDC (operating range) 100-380 VDC (MPPT range) |
| Voltage (start-up) | 150 VDC |
| Maximum current | 20 ADC |
| PV CONNECTION PANEL | |
| Service switches for PV arrays | 4 pcs 2-pole |
| DC SPD Type 2 (option) | Up to 4 pcs |
| OUTPUT DATA | |
| Voltage | -48 VDC |
| Current (maximum) | 300 A |
