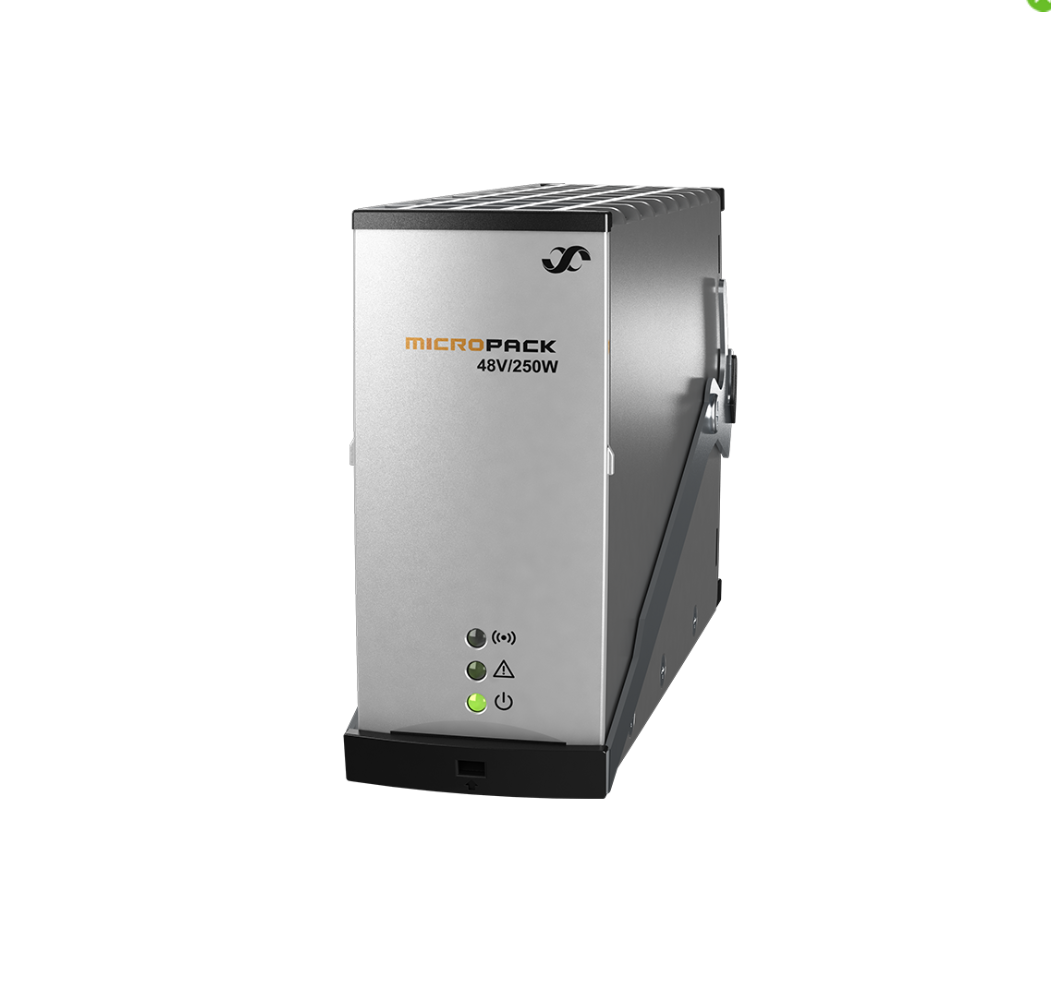

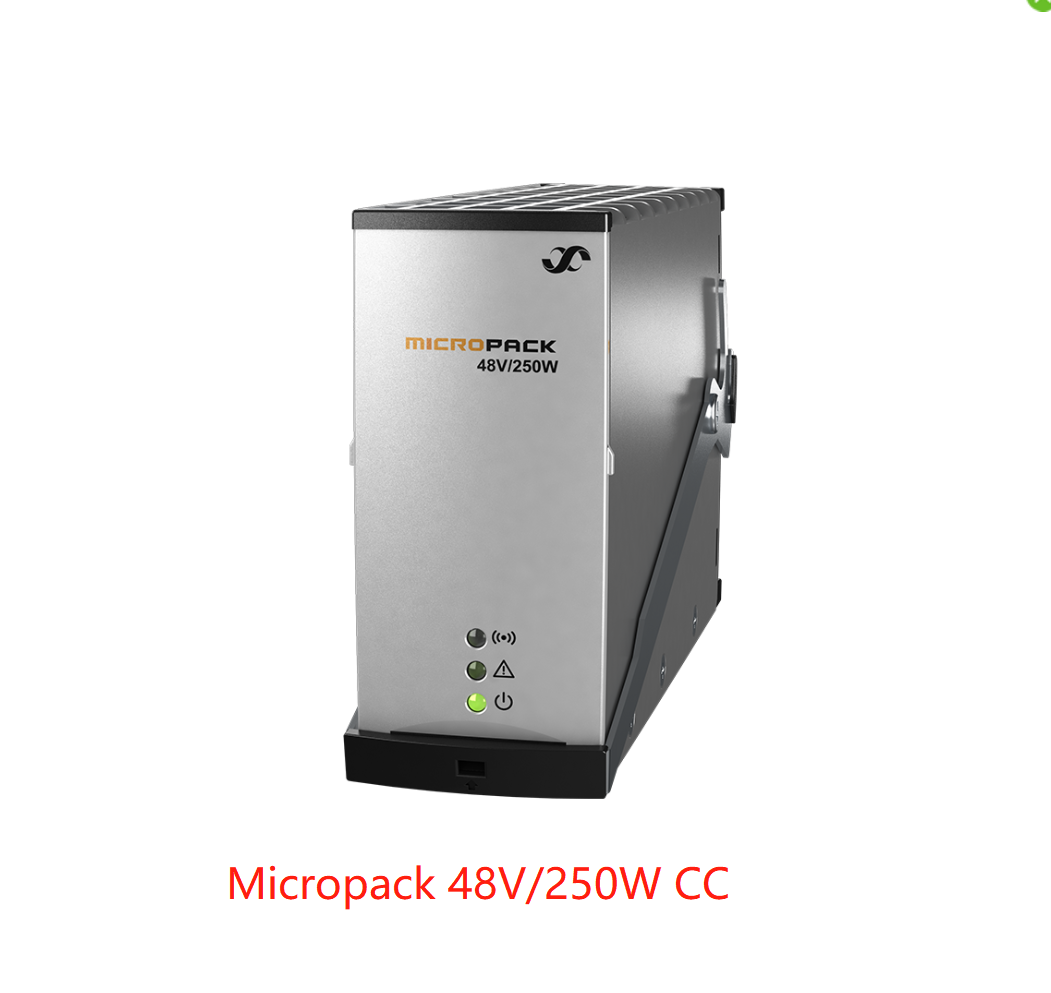

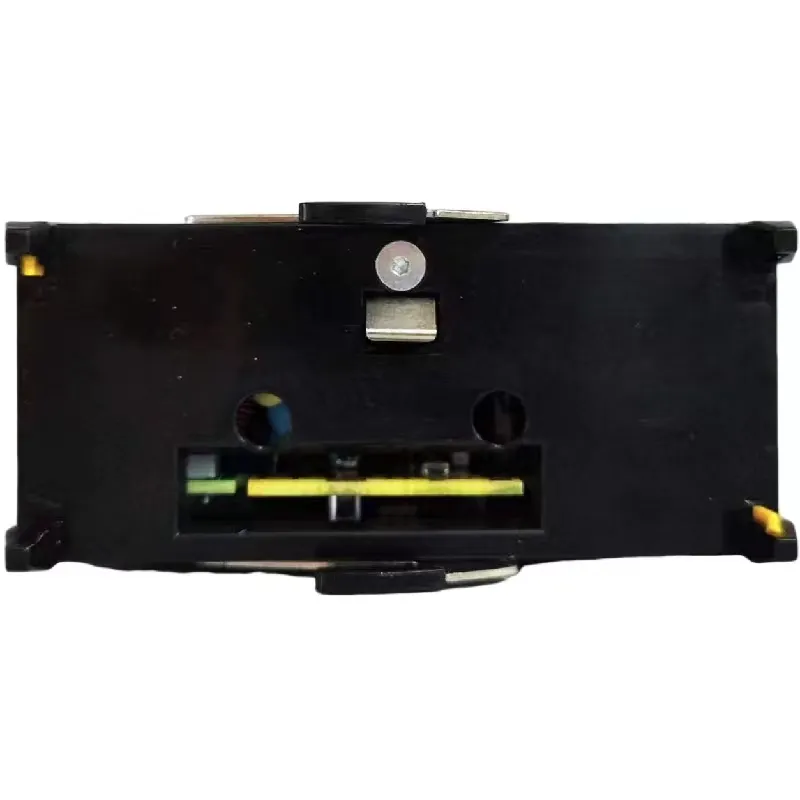

Eltek Micropack Rectifier 48V Telecom Power 250W Rectifier Module 241120.100

Product Description:

The Micropack System is convection cooled, designed for less power hungry applications, but still with system functionality options to match any requirements. Use as stand alone or in a flexible off the shelf configurable system.

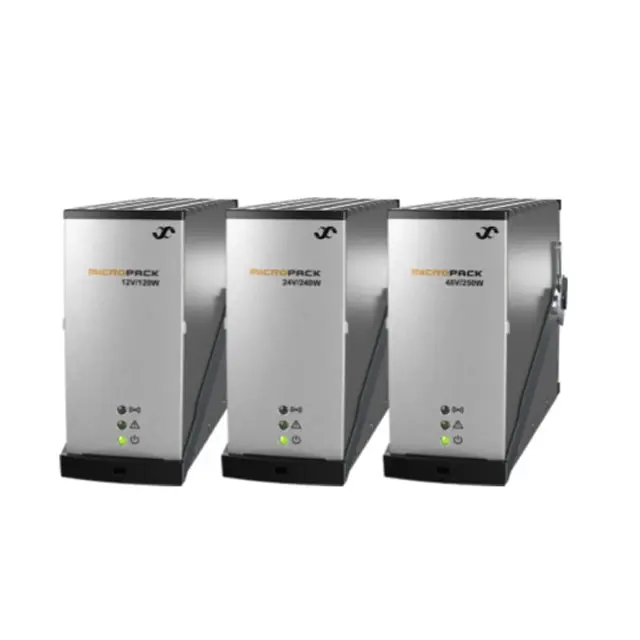

The Micropack Power System extends your network one step further. With load ranges typically between 120W and 1000W, and in 12, 24 and 48V options, the system is perfect for a great variety of applications.

Specification:

Model	12V / 120W	24V / 240W	48V / 250W

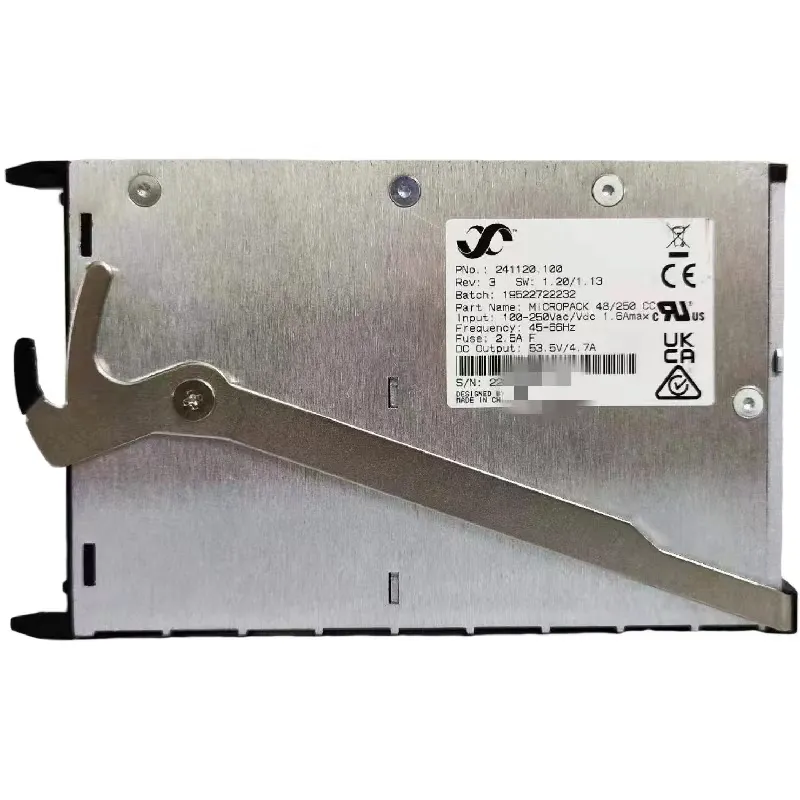

Part number	241120.300	241120.200	241120.100
INPUT DATA
Voltage range	85 - 300 VAC/DC 1)
Voltage range (nominal)	130 - 275 VAC/DC	185 - 275 VAC/DC 1)
Frequency	0 - 66 Hz 1)
Maximum current, 230V input / overall (boost)	0.6 A / 2.0 A	1.2 A / 2.0 A	1.2 A / 1.9 A
Maximum earth leakage current	2.0 mA (@ 250VAC/50Hz)
Power Factor	0.97 (@ 70 - 100 % load)	0.98 (@ 55 - 100 % load)	0.98 (@ 50 - 100 % load)
THD (@ 230 VAC)	< 5 % (@ 80 - 100 % load)	< 5 % (@ 50 - 100 % load)	< 5 % (@ 50 - 100 % load)
Protection	Varistor for transient protection, fuse in both lines (2x 2.0 A), shutdown above 300 VAC/DC
OUTPUT DATA
Default voltage	13.6 VDC	27.2 VDC	53.5 VDC
Voltage range	10.7 - 18.0 VDC	21.5 - 36 VDC	43.5 - 57.6 VDC
Voltage range without controller	10.7 - 15.0 VDC	21.5 - 30 VDC	43.5 - 57.6 VDC
# Pb cell supported (1.8 - 2.4 VDC/cell)	6 - 7	12 - 15	24
# NiCad cell supported (1.05 - 1.65 VDC/cell)	10 - 112)	20 - 222)	-
Max power, nominal / 60s boost	120 W/ 160 W	240 W/ 315 W	250 W/ -
Max current, @ 12/24/48VDC / boost / QT3)	10 A / 15 A / 55 A	10 A / 15 A / 55 A	5 A / - / -
Current sharing	±5% of maximum current from 10 to 100% load
Static voltage regulation	±0.5% from 10% to 100% load and nominal input
Dynamic voltage regulation	± 5 % < 10ms, load step 10% to 90% or opposite at nominal output voltage
Hold-up time, default voltage and full power	20 ms, VOUT > 10.7 VDC	20 ms, VOUT > 21.5 VDC	20 ms, VOUT > 43 VDC
Rippel and noise, 30 MHz b.w. / psophometric	< 200 mVPP / 5 mVRMS	< 200 mVPP / 5 mVRMS	< 150 mVPP / 2 mVRMS
Protection	Overvoltage shutdown, short circuit proof, high temperature, hot plug-in inrush current limiting, fuse
OTHER SPECIFICATIONS
Efficiency @ nominal input/output, peak/range	89.5% / >88%, 50-100% load	93.0% / >92%, 50-100% load	93.6% / >93%, 50-100% load
Isolation	3.0 kVAC – input and output, 1.5 kVAC – input earth, 0.5 kVDC – output earth
Alarms: Red LED 'on'	Low mains shutdown, High and low temperature shutdown, Rectifier Failure, Overvoltage shutdown on output, Fan failure, Low voltage alarm, CAN bus failure
Warnings: Yellow LED 'on'	Rectifier in power derate mode, Remote battery current limit activated, Input voltage out of range, flashing at overvoltage
Normal (module running): Green LED 'on'
Alarm output (isolated)	NO (+positive terminal), COM (-negative terminal). 60 V / 100 mA max
MTBF (Telcordia SR-332 Issue I method III (a))	>480 000h (@TAMBIENT= 25 °C)	>480 000h (@TAMBIENT= 25 °C)	>500 000h (@TAMBIENT= 25 °C)
Operating temperature (5 - 95% RH non-cond.) Output power de-rates above temp / to	-40 to +70°C [-40 — +158 °F] +55 °C / 50W @ +70°C	-40 to +60°C [-40 to +142 °F] +45 °C / 80W @ +60°C	-40 to +75°C [-40 to +167 °F] +55 °C / 140W@ +75°C
Storage temperature	-40 to +85°C (-40 to +185 ° F), humidity 0 - 99% RH non-condensing
Dimensions [WxHxD] / Weight	39.0 x 88.5 x 149mm [1.54 x 3.48 x 5.87"] / 0.5 kg [1.1 lbs]
DESIGN STANDARDS
Electrical safety	UL 60950-1, EN 60950-1, CSA 22.2
EMC	ETSI EN 300 386 V.1.3.2 EN 61000-6-1 / -2 / -3 / -4 / -54)
Mains Harmonics	EN 61000-3-2
Environment	ETSI EN 300 019: 2-1 (Class 1.2), 2-2 (Class 2.3) & 2-3 (Class 3.2) ETSI EN 300 132-2 2002/95/EC (RoHS) & 2002/96/EC (WEEE)
Marine compliance (EMC class B with AC filter)	DnV Rules for Classification of Ships, High Speed & Light Craft and DnV Offshore Standards
