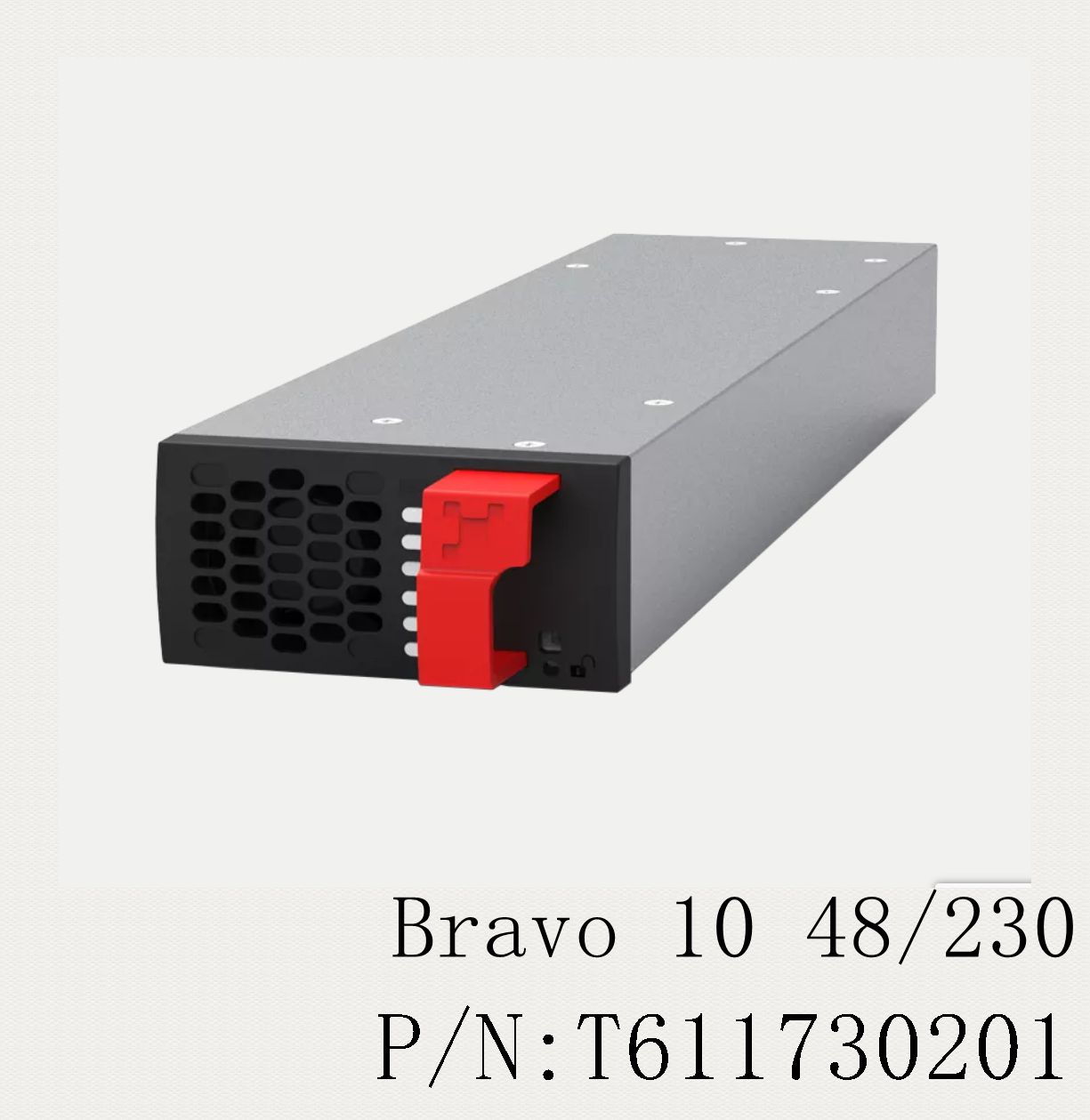

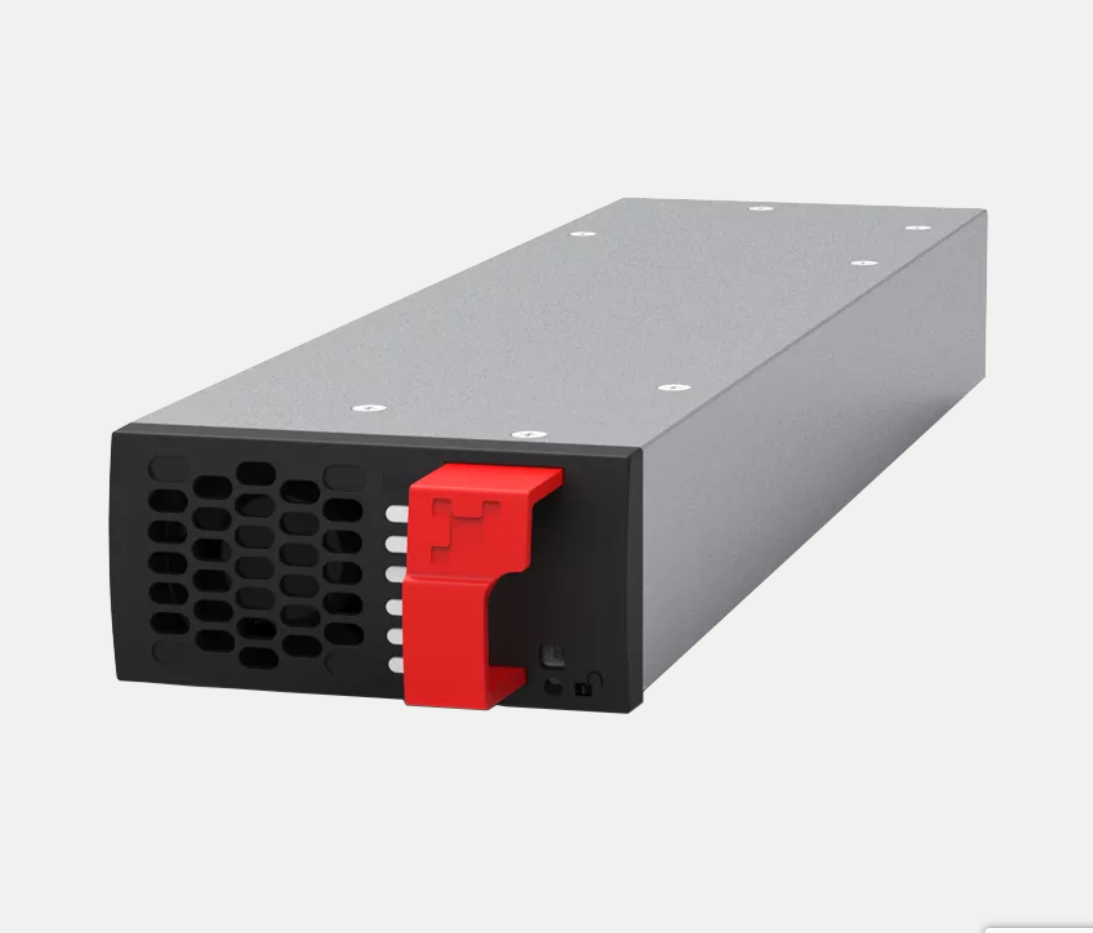

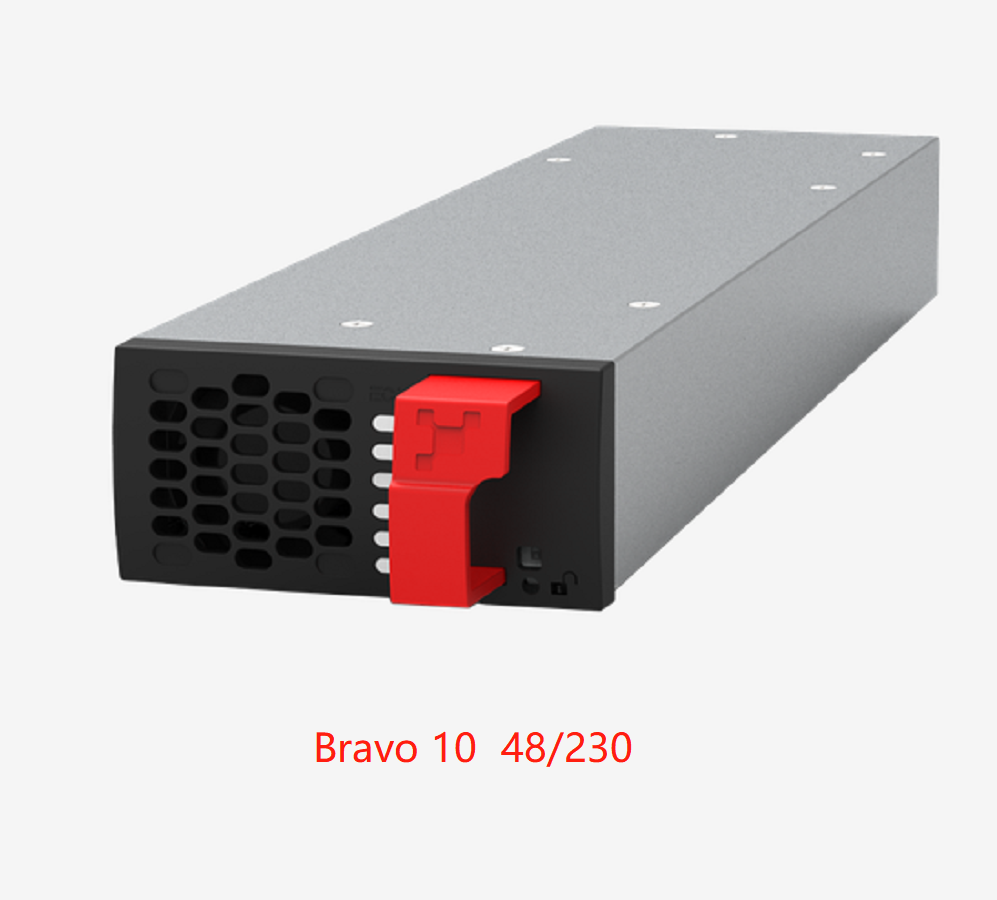

CE+T inverter Bravo 10– 48/230 1.5kva 48Vdc 230Vac Inverter for Modular Inverter System (P/N:T611730201)

Bravo 10 – 48/230 is a compact modular inverter that converts a 48 Vdc power source into 230 Vac. By using at least three modules, we can offer solutions for three-phase infrastructures (3x400Vac + N).

An additional AC input is used under normal conditions to achieve an overall conversion efficiency of 96%. In the event of a grid failure, it automatically switches to the DC to secure the loads.

The modularity is maximum thanks to increments of 1.25 kVA / 1 kW only! Different configurations are possible such as monitoring integrated in the shelf or not, and for single-phase or three-phase systems.

Key features:

· Extra AC input for increased efficiency

· All-in-one solution with monitoring included

· From 1.25 to 40 kVA

· 1P or 3P configuration

· Compact

Parameters:

In: DC voltage (input range)	48 Vdc (40-60)
In/Out: AC voltage (input range)	230 Vac (150-265)
Output power	1.25 kVA / 1 kW
Efficiency: DC/AC	92.5%
Efficiency: AC/AC	96%
Temperature	-20°C to 65°C
Dimension	1U x 87 mm x 346 mm
Part number	T611730201
