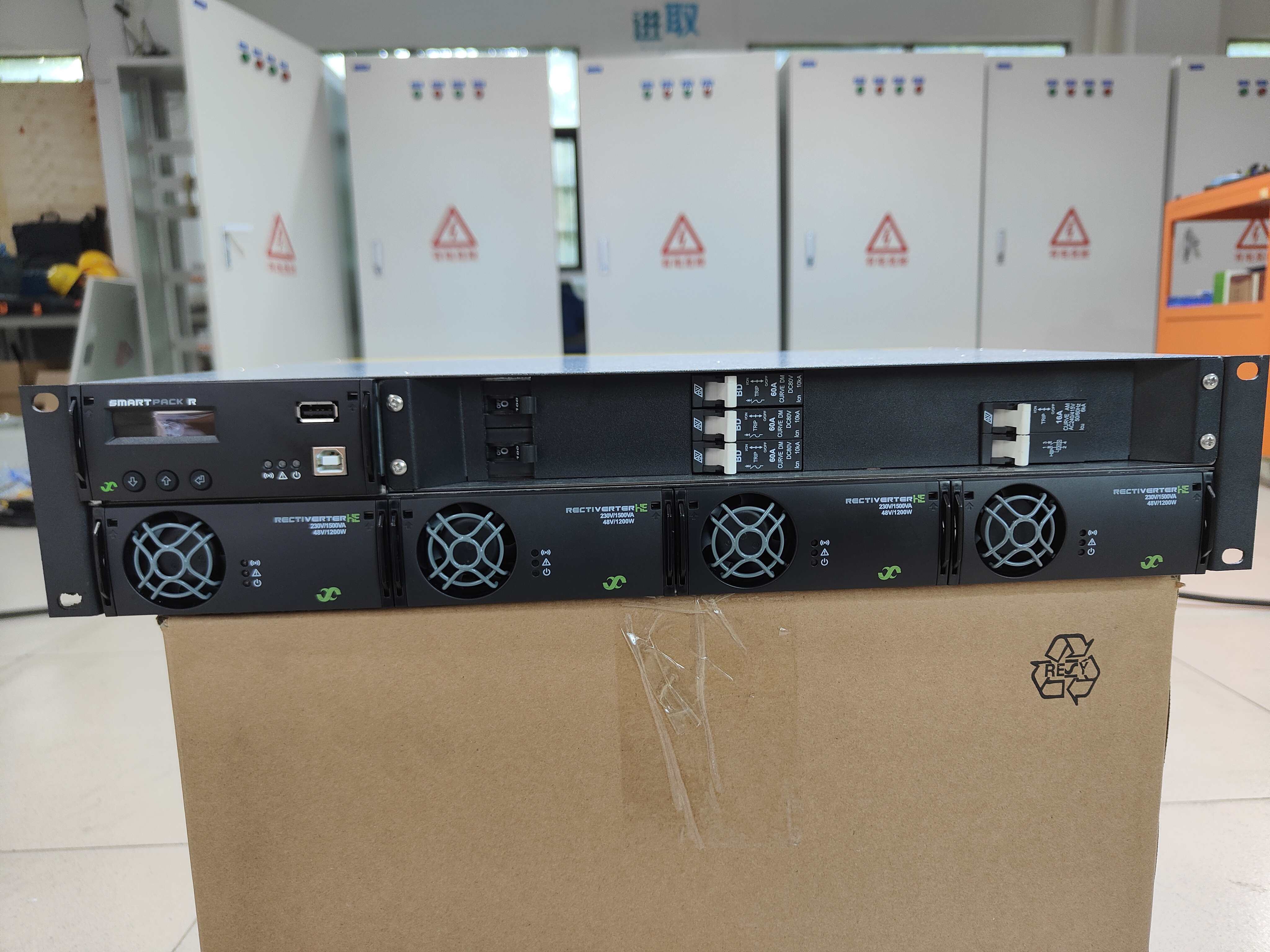

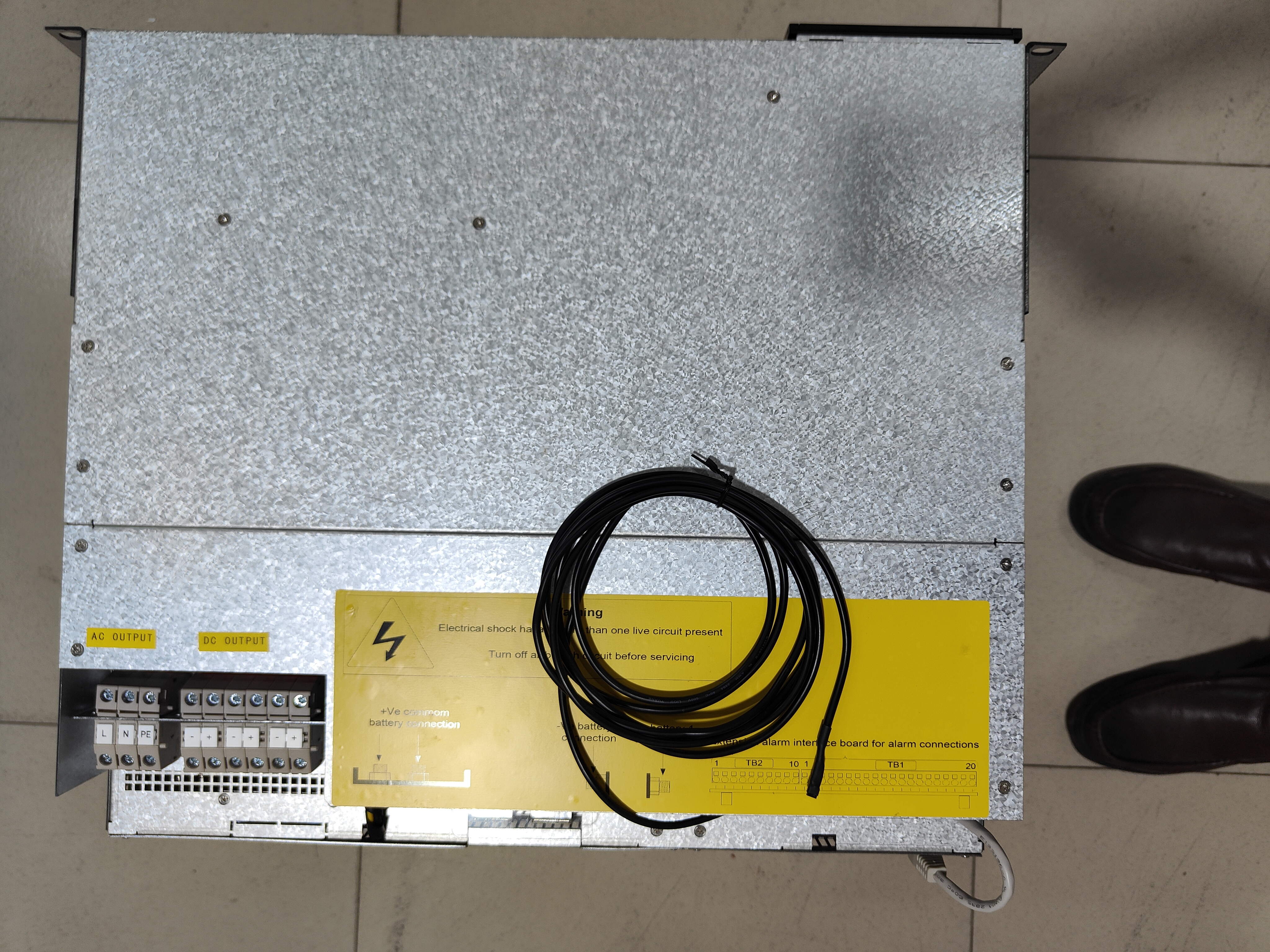

Eltek Rectifier Integrated 2U 48VDC 6KVA 1ph Systems With Smartpack2 Touch And Basic Part No.CIOR0402
Product Description:The Rectiverter 2U 19” Integrated System can be used as a s...
Product Description:The Rectiverter 2U 19” Integrated System can be used as a s...
Models | 8 kW, 230 VAC | 4 kW, 115 VAC |
Product family | CIOR0402.1xxx | CIOR0402.1xxx |
AC OUTPUT DATA | ||
Voltage (default) / (adjustable range) 1) | 230 VAC / 200-240 VAC | 115 VAC / 100-127 VAC |
Frequency (inverter mode – default) | 50 Hz (adaptive) | 60 Hz (adaptive) |
Frequency (inverter mode – settable) | 50 Hz, 60 Hz or last synced 50 / 60 Hz (adaptive) | |
Power maximum (continuous / overload <15s) | 4800 W (6000 VA) / 8000 VA | 2400 W (3000 VA) / 4000 VA |
Current maximum (continuous / overload <15s) | 26 ARMS / 34,8 ARMS | |
Current (maximum) quick trip (20ms) | 128 A (6 x nominal) | |
Hold up (Voltage dips) (before switching to battery) | 5 ms | 5 ms |
THD | < 1,5 % at resistive load | |
Protection | Fuse in L, Hot pluggable, Varistor | |
DC OUTPUT DATA | ||
Voltage (default) / (adjustable range) | 53,5 VDC / 43-58 VDC | |
Power (maximum @nominal input) | 4800 W 2) | 2400 W 2) |
Current (maximum @VOUT ≤ 48 VDC) | 100 A 2) | 50 A 2) |
Current sharing (10 - 100% load) | ±5 % of maximum current from 10 to 100 % load | |
Protection | Short circuit proof, Over voltage shutdown, Reversed polarity and Fuse | |
INPUT DATA | ||
AC Mains Input Voltage (range / LV disconnect) | 185-275 VAC / 170 VAC | 95-140 VAC / 85 VAC |
AC Current (maximum - depends on module type) | 32,8-46 ARMS 3) | 36,8-45,2 ARMS 3) |
Frequency (default: sync range) | 47-53 & 57-63 Hz | 57-63 & 47-53 Hz |
Frequency (settable: sync range) | 47-53 Hz, 57-63 Hz or both (adaptive) | |
Power Factor / THD | > 0,99 at 70% load or more / < 3,5 % | |
DC Voltage nominal / extended range 4) | 45-58 VDC / 40-45 VDC | |
DC Current (maximum) | 128 A / 180 A during overload (15 s) | 64 A / 90 A during overload (15 s) |
Input features | Fuse in L and N, Hot pluggable, Varistor AC input individual screw terminals 4 mm2 for L, N & PE (4x single phase) | |
OPTIONS | ||
Control and Monitoring (master unit) | Smartpack2 Touch | |
Control and Monitoring (basic unit) | Smartpack2 Basic | |
Controller CAN node | I/O Monitor T2 | |

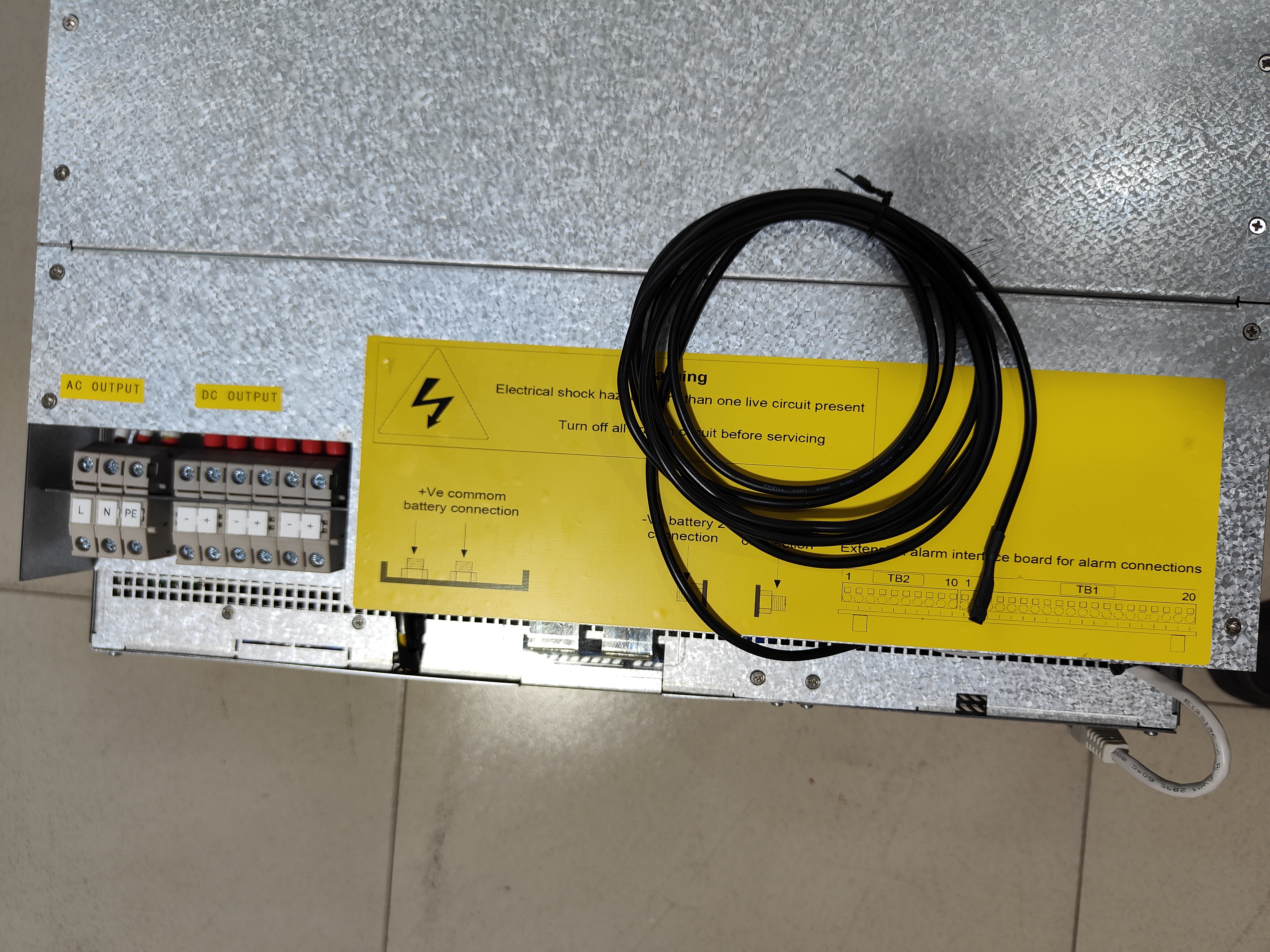

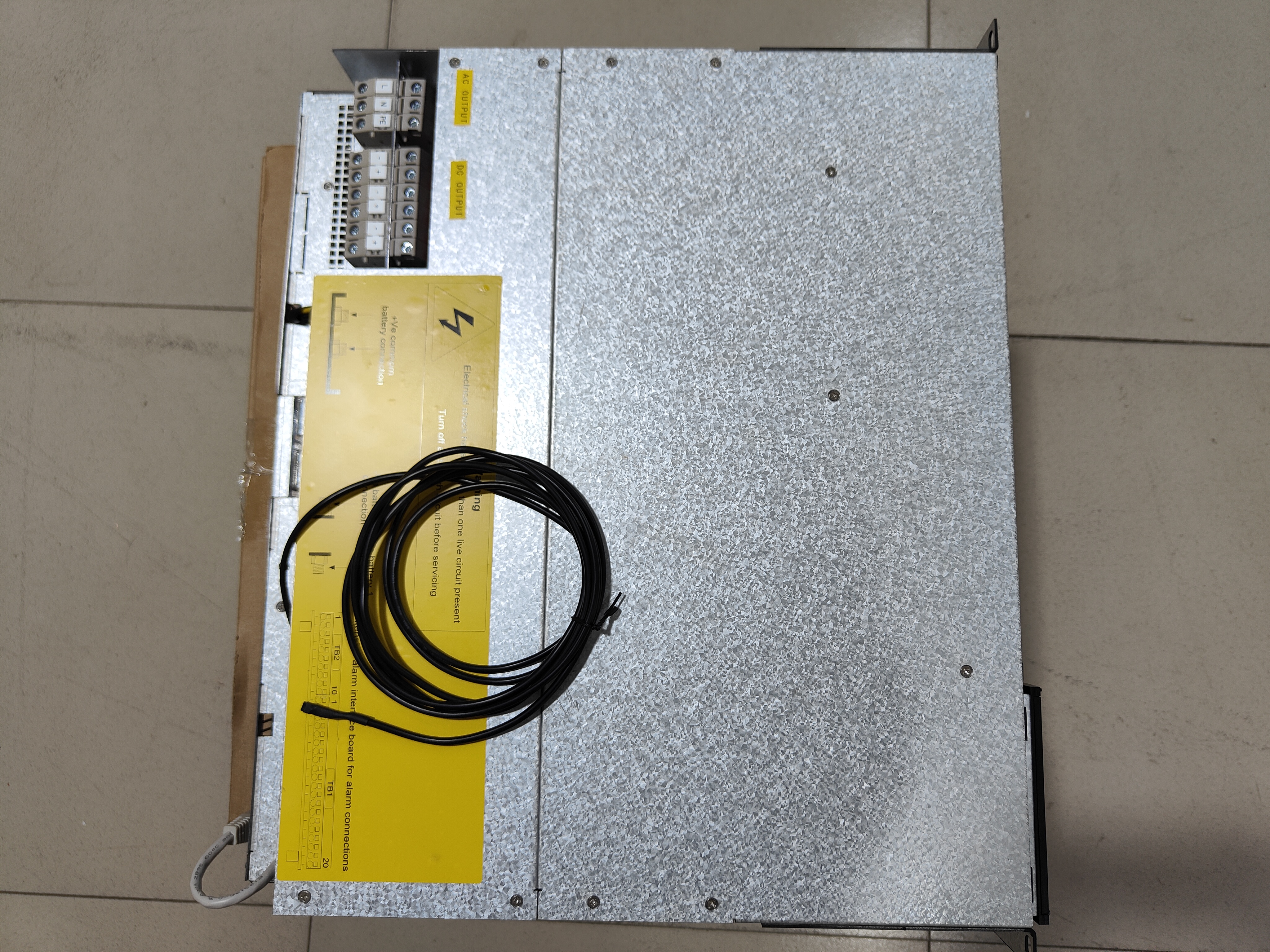

AC distribution | AC output individual screw terminals 10 mm2 for L, N & PE (1x single phase) | |
DC distribution | DC bulk connection on 2x M6 bolt | |
OTHER SPECIFICATION | ||
Efficiency | > 96 % (mains mode), > 94 % (inverter mode) | > 92 % (mains mode), > 91 % (inverter mode) |
Operating temperature | -40 to +55 °C (-40 to +131 °F), humidity 5-95 % RH non-condensing | |
Storage temperature | -40 to +85 °C (-40 to +185 °F), humidity 0-99 % RH non-condensing | |
Dimensions [W x D x H] | 482 x 400 x 89 mm (2U) (19 x 15,7 x 3,5 inch) | |
Weight | 9,4 kg (20,7 lbs) | |
DESIGN STANDARDS | ||
Electrical safety | EN 60950-1, EN 62040-1 UPS safety | |
EMC | ETSI EN 300 386 V2.1.1, FCC CFR 47 Part 15 EN 62040-2 EN 61000-6-1/-2/-3/-4/-5 | |
Environment | ETSI EN 300 019: 2-1 (Class 1.2), 2-2 (Class 2.3) & 2-3 (Class 3.2) Normal operating conditions as per IEC 62040-3:2011 clause 4.2. Other operating conditions as per IEC 62040-3:2011 clause 4.3, must be advised RoHS 3 (2015/863/EU) and WEEE (2008/98/EC) compliant | |
1) Output voltage ranges configured in factory and have individual keying in top chassis 3) If DC port is overloaded pulling the voltage below 43 V the input current may increase above this level. | 2) AC load has priority. Maximum available DC output power and current is dependent on instant AC load and AC input voltage; i.e. maximum 3200 W / 66,4 A at full AC power and nominal input for 230 VAC. 4) Reduced performance - no over load support, and for 200-240 VAC output THD will increased and maximum output power de- rates (to 970 W for 230 VAC @ 40 VDC) | |
