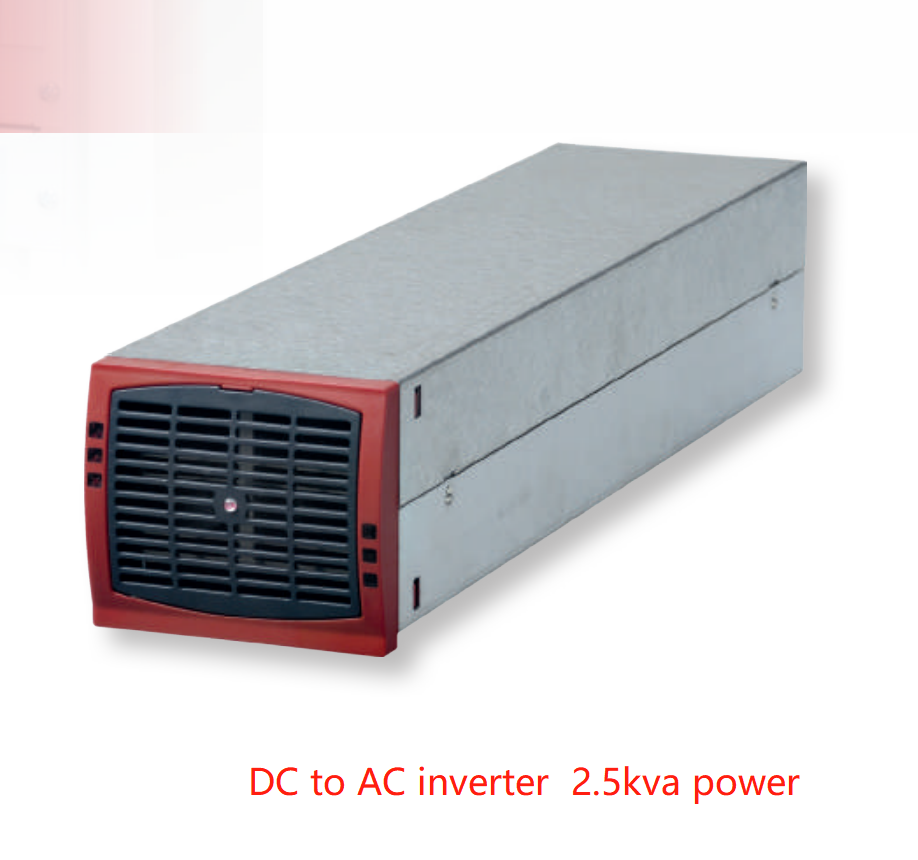

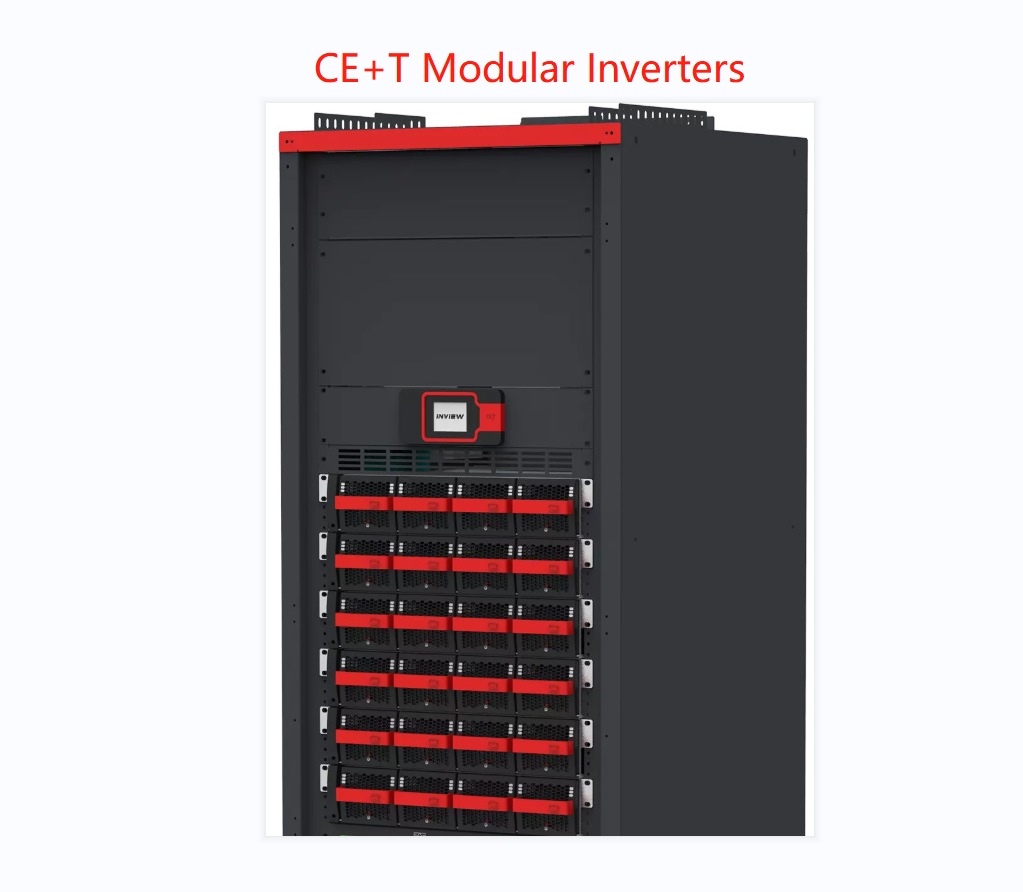

CE+T modular inverter 1.5KVA 2.5 kVA Input 24V / 48V / 60V / 110 V / 220 Vdc Output 230 Vac TSI BRAVO DC to AC inverter
Product DescriptionBRAVO is a compact and scalable modular inverter providing a...
Product DescriptionBRAVO is a compact and scalable modular inverter providing a...
BRAVO is a compact and scalable modular inverter providing a pure sine wave AC supply. In conjunction with a DC Power system, it provides an excellent AC backup
solution. It uses the latest inverter technology, providing superior energy efficiency in a compact size. The “Twin Sine Innovation” (TSI) technology eliminates all
single points of failure with full scalability; up to 32 modules in parallel and high efficiency of up to 96 % reducing operating costs.
APPLICATIONS
All business critical applications and all types of AC loads. The design is modular and scalable with hot- swappable inverter modules which ensures low Mean Time to Repair
(MTTR), reduction in service costs and meets the changing needs for future expansion.
l Dual input sources (AC & DC)
l with wide AC input range 150 Vac to 265 Vac
l Compact design
l High efficiency
l Transfer time reduced to 0
l up to 10kVA in 2 U
l up to 225kVA in 3 enclosures of 75kVA each
24 / 230 | 48 / 230 | 60 / 230 | 110 ** / 230 | 220***/ 230 | |
GENERAL | |||||
EMC (immunity) | EN 61000-4-2 / EN 61000-4-3 / EN 61000-4-4 / EN 61000-4-5 / EN 61000-4-6 / EN 61000-4-8 | ||||
EMC (emission) (class) | EN 55022 (A) | EN 55022 (B) | EN 55022 (A) | EN 55022 (B) | |
Safety | EN62040-1 | ||||
Cooling / Isolation | Forced / Doubled | ||||
MTBF | 240 000 hrs (MIL-217-F) | ||||
Efficiency (Typical): Enhanced power conversion / on line | > 95.5% / > 89.5% | 96% / 91% | 96.5% / 92.5% | ||
Dielectric strength DC/AC | 4300 Vdc | ||||
True Redundant Systems – compliant | 3 disconnection levels on AC out and DC in power ports 4 disconnection levels on AC in port | ||||
RoHS | Compliant | ||||
Vibration | GR63 office vibration 0 to 100 hz-0.1 g / transport vibration 5-100 Hz 0.5 g 100 to 500 hz-1.5 g / Drop test | ||||
Operating conditions | Designed for installation in an IP20 or IP21 environment. When installed in a dusty or humid environment, appropriate measures (air filtering, …) must be taken. | ||||
Altitude above sea without de-rating | < 1500 m / derating > 1500 m – 0.8 % per 100 m | ||||
Ambient / storage temperature / relative humidity | -20 to 50 ° C / -40 to 70 ° C / 95 %, non-condensing | ||||
Material (casing) | Coated steel-ALU ZINC | ||||
AC OUTPUT POWER | |||||
Nominal Output power (VA) / (W) | 1500 / 1200 | 2500 / 2000 | |||
Short time overload capacity | 150 % (15 seconds) 110 % permanent within T° range | ||||
Admissible load power factor | Full power rating from 0 inductive to 0 capacitive | ||||
Internal temperature management and switch off | Yes | ||||
DC INPUT SPECIFICATIONS | |||||
Nominal voltage (DC) | 24 V | 48 V | 60 V | 110 V | 220 V |
Voltage range (DC) | 19 – 35 V | 40 - 60 V | 48 - 72 V | 90 - 160 V | 170 - 300 V |
Nominal current | 56 A (at 24 Vdc and 1200 W output) | 46 A (at 48 Vdc and 2000 W output) | 35 A (at 60 Vdc and 2000 W output | 19 A (at 110 Vdc and 2000 W output) | 9.8 A (at 220 Vdc and 2000 W output |
Maximum input current (for 15 second) / voltage ripple | 84 A / < 100 mV rms | 84 A / < 2 mV Psopho | 52 A < 100 mV rms | 29 A / < 200 mV rms | 14.9 A / < 200 mV rms |
Input voltage boundaries | User selectable with T2S interface | ||||
AC INPUT SPECIFICATIONS AC input available only with EPC modules, REG modules do not have any ACin | |||||
Nominal voltage (AC) | 220/230/240 V 1P or 3P (Min 3 shelves for 3P) | ||||
Voltage range (AC) | 150-265 V | ||||
Brownout | 150 to 185 V linear derating 150 VA/120 Watts per 10 Vac | ||||
1200 VA / 960 W @ 150 Vac | 2000 VA/1600 W @ 150 Vac | ||||
Conformity range before transfer to DC | Adjustable | ||||
Power factor | > 99% | ||||
Frequency range (selectable) / synchronization range | 50 – 60 Hz / range 47 – 53 Hz / 57 – 63 Hz | ||||
AC OUTPUT SPECIFICATIONS | |||||
Nominal voltage (AC*) | 220/230/240 V | ||||
Frequency / frequency accuracy | 50 - 60 Hz / 0.03 % | ||||
Total harmonic distortion (resistive load) | < 1.5 % | ||||
Load impact recovery time | 0.4 ms | ||||
Turn on delay | 20 s to 40 s depending on the number of module installed | ||||
Nominal current. Protected against reverse current | 6.6 A | 10.9 A | |||
Crest factor at nominal power | 2.8 : 1 | 3 : 1 | |||
With short circuit management and protection | |||||
Short circuit clear up capacity | 10 x In for 20 msec - Available while Mains is available at AC input port With magnitude control and management | ||||
Short circuit current after clear up capacity | 2.1 In during 15 s and 1.5 In after 15 s | ||||
IN TRANSFER PERFORMANCE | |||||
Max. voltage interruption / total transient voltage duration (max) | 0 s / 0 s | ||||
SIGNALING & SUPERVISION | |||||
Display | Synoptic LED | ||||
Alarms output / supervision | Dry contacts on shelf / Standard USB port and MODBUS on T2S, optional : Candis Display / Candis TCP-IP | ||||
Remote on / off | on rear terminal of the shelf via T2S | ||||
