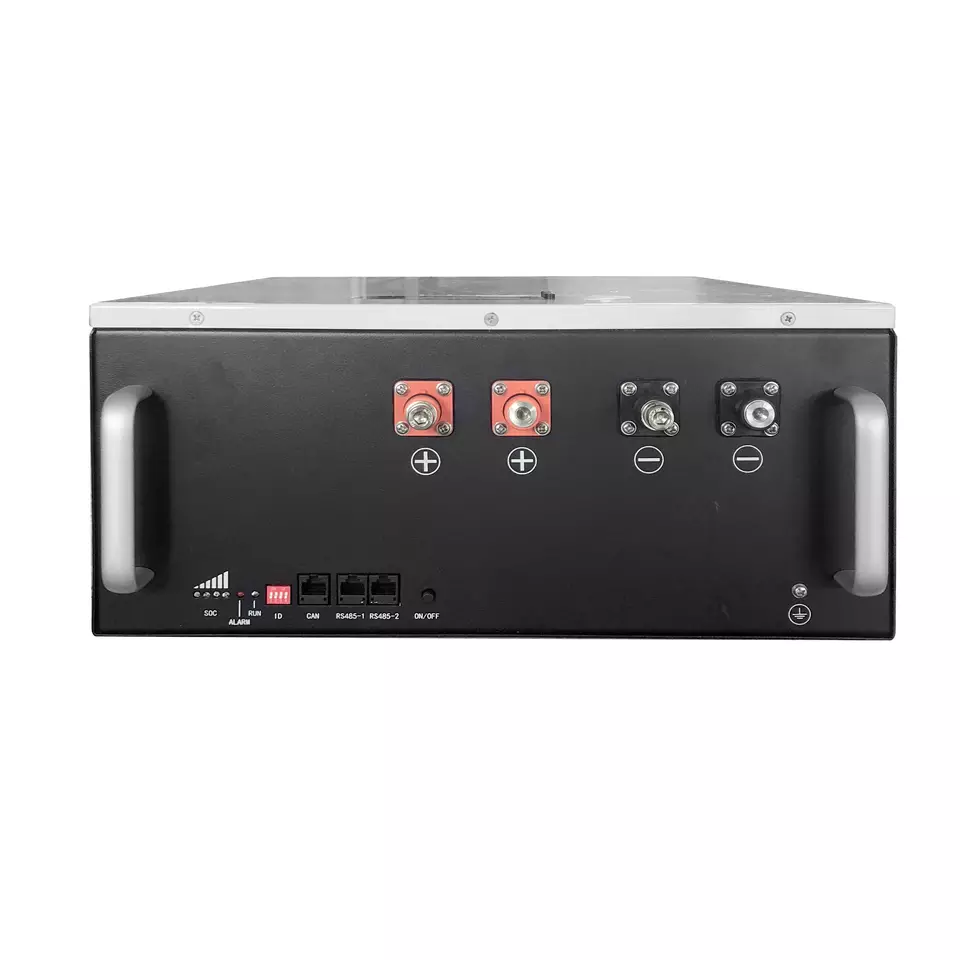

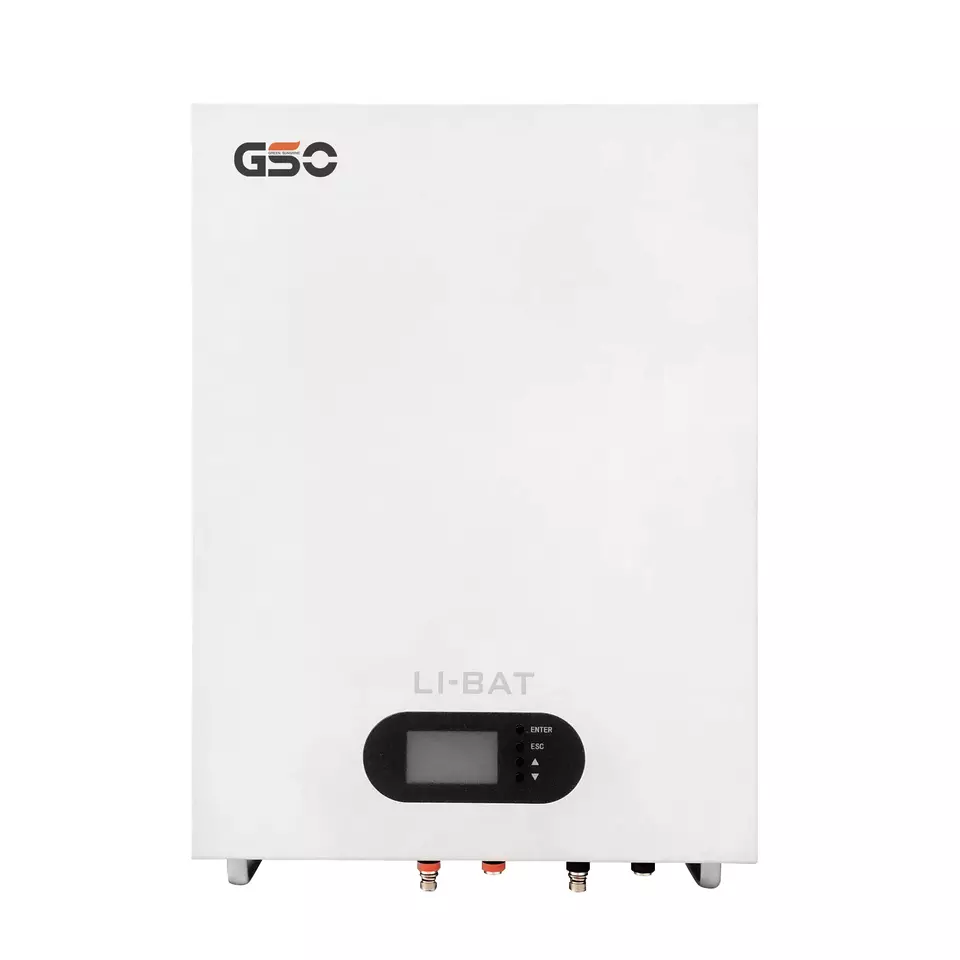

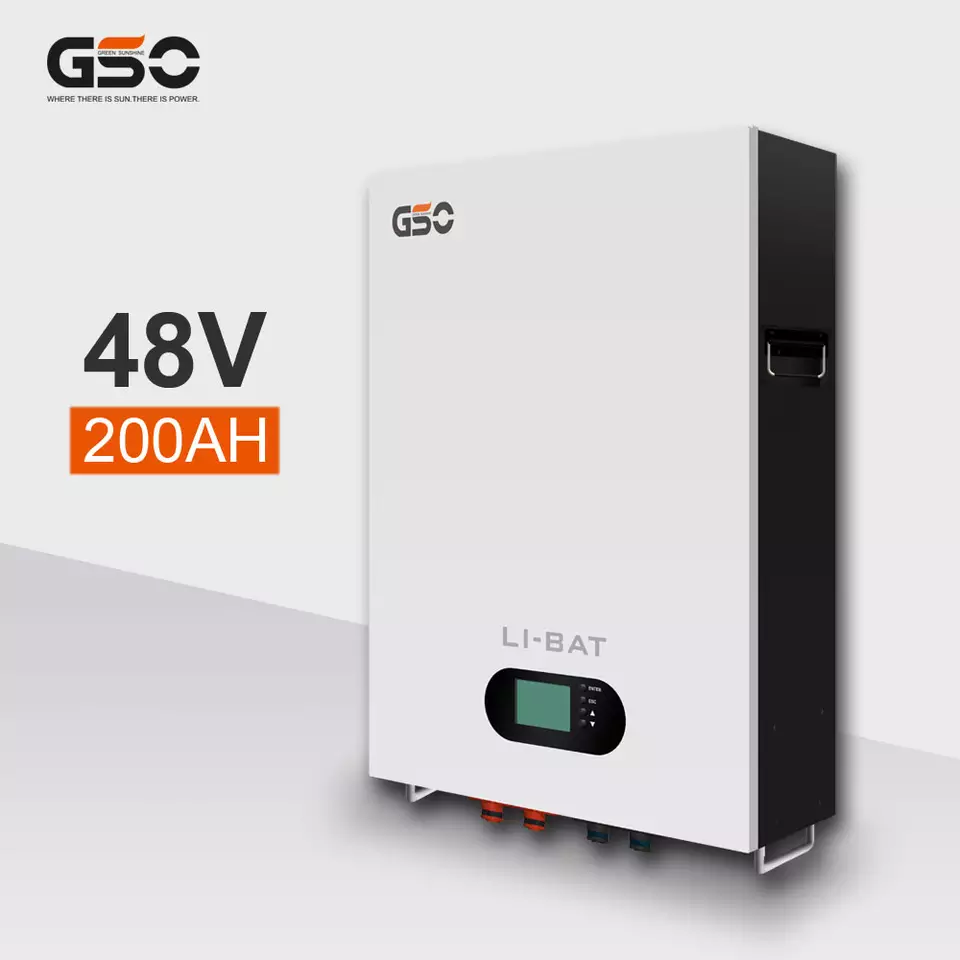

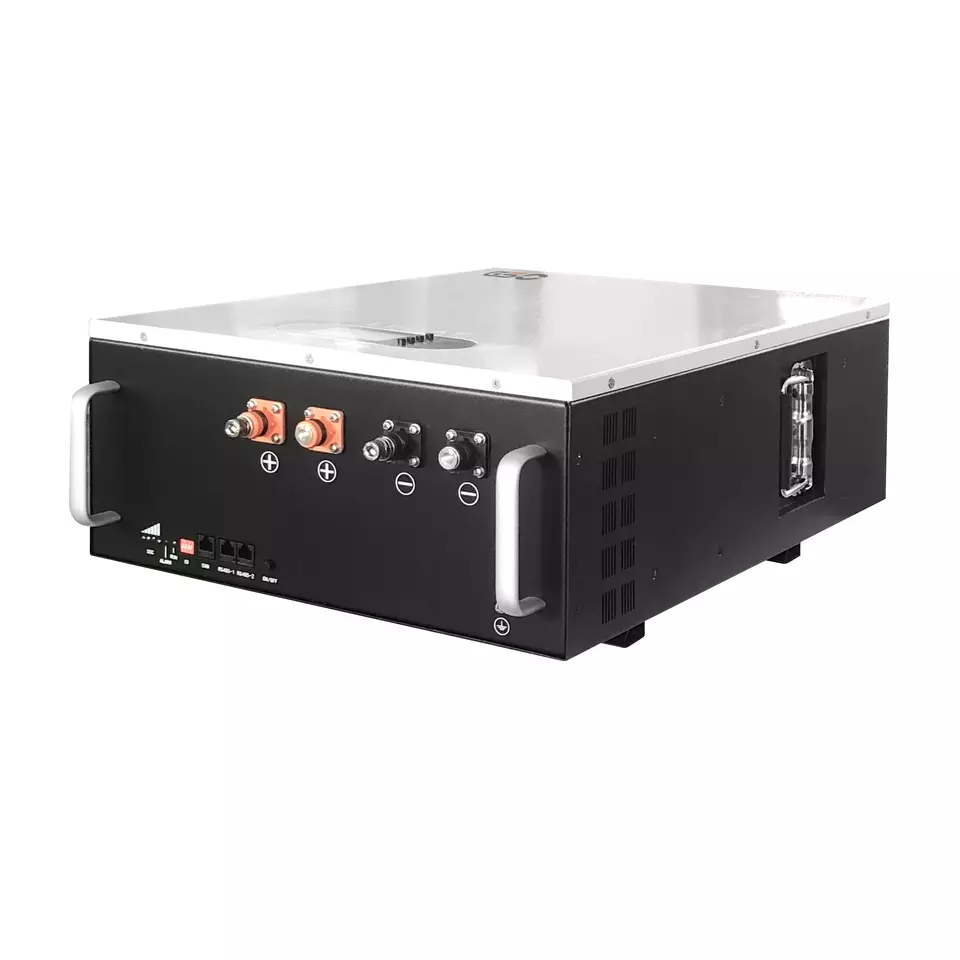

deep cycle 48v 200ah wall-mounted lithium ion lifepo4 battery pack lithium battery with bms
Lithium ion battery have been deployed in varied places. From a small electronic...
Lithium ion battery have been deployed in varied places. From a small electronic...
Lithium ion battery have been deployed in varied places. From a small electronics battery to large energy storage and power driving batteries used in solar system, golf cart, agv, sail boat, forklift, robot, medical equipment, electric mobility, power back up, ups and other application, lithium iron phosphate batteries are available in all shapes and sizes. And that renders them to be the perfect option for power needs irrespective of the size of the application devices.
Model | GBP48100 | GBP48150 | GBP48200 |
Nominal Voltage (V) | 48 | ||
Battery Capacity (AH) | 100(5KWH) | 150 (7.5KWH) | 200(10KWH) |
Working Voltage Range | 42-56.25 | ||
Recommended Charging voltage (V) | 52.5 | ||
Recommended Discharge cutoff Voltage(V) | 45.7 | ||
Standard Charging Current (A) | 50 | 75 | 100 |
Max Continuous Charging Current(A) | 100 | 150 | 200 |
Standard Discharge Current (A) | 50 | 75 | 100 |
Max Continuous Discharging Current(A) | 100 | 150 | 200 |
Operating Temperature (℃) | -20℃~60℃ (recommend 10℃~35℃) | ||
Cool method | Natural air cooling | ||
Certificate | CE, UN38.3, MSDS | ||
Cycle life | Around 5000 times | ||
Communication | RS485(CAN optional) | ||
Parallel function | 48v support at most 15 packs in parallel use(Capacity is 75KWH) | ||
Max size (W*D*H) mm | 410*180/220*590mm(including mounting rack) | ||
Weight | 45KG | 68KG | 106KG |
Protection Level | IP20 | ||
Communication | RS485(CAN optional) | ||
Remark | 0.5C Discharge Max: 1C, 80%DOD | ||
