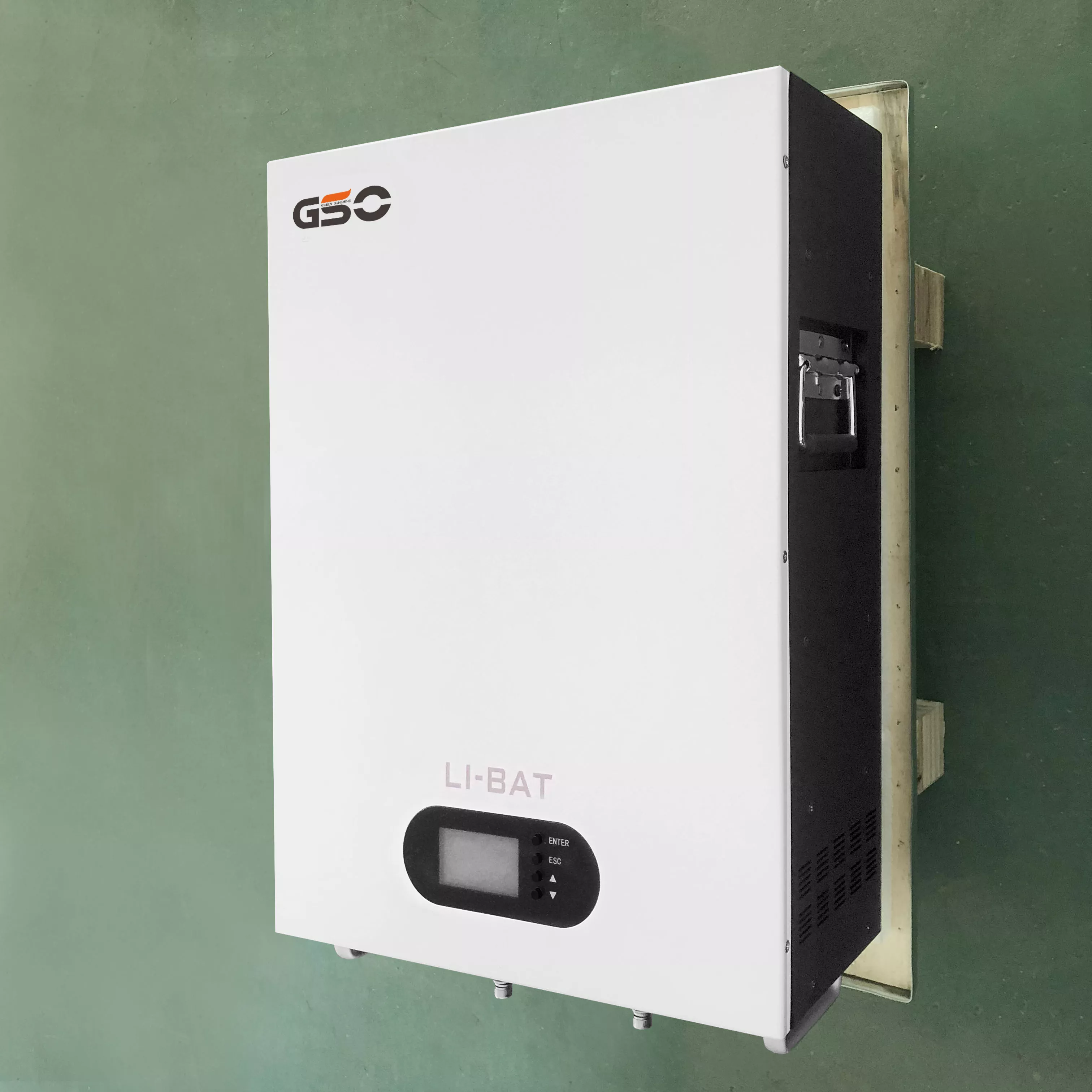

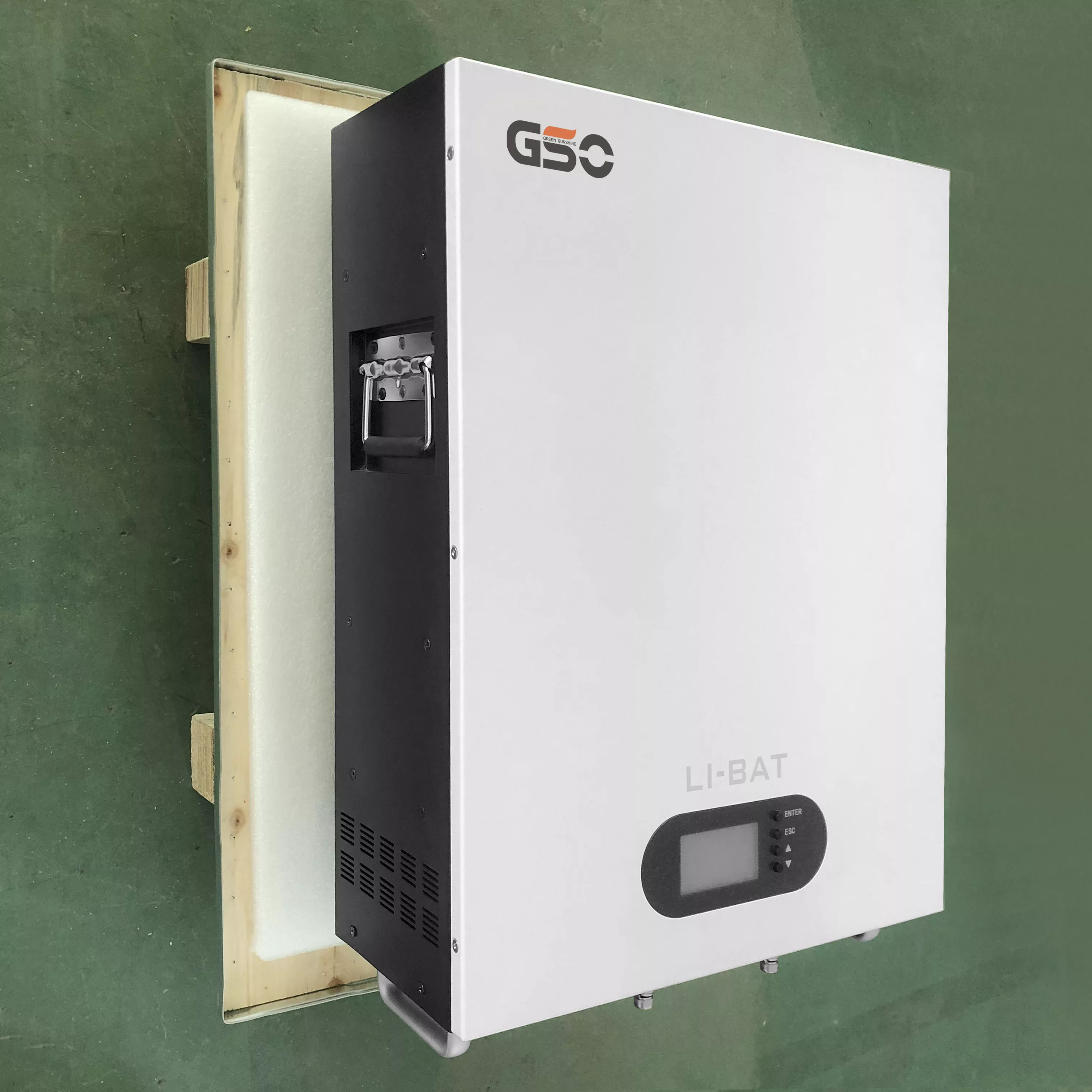

Portable Lithium Battery Pack 10Kwh LiFePO4 48V 100Ah 200Ah Power Wall Battery Pack For Solar Home System
Lithium ion battery have been deployed in varied places. From a small electronic...
Lithium ion battery have been deployed in varied places. From a small electronic...
Lithium ion battery have been deployed in varied places. From a small electronics battery to large energy storage and power driving batteries used in solar system, golf cart, agv, sail boat, forklift, robot, medical equipment, electric mobility, power back up, ups and other application, lithium iron phosphate batteries are available in all shapes and sizes. And that renders them to be the perfect option for power needs irrespective of the size of the application devices.
Model | GBP48V-50AH | GBP48V-100AH | GBP48V-200AH |
Nominal Voltage (V) | 48 | ||
Battery Capacity (AH) | 50 (2.5KWH) | 100 (5KWH) | 200 (10KWH) |
Working Voltage Range | 42-56.25 | ||
Recommended Charging Voltage (V) | 52.5 | ||
Recommended Discharge Cutoff Voltage (V) | 45.7 | ||
Standard Charging Current (A) | 25 | 50 | 100 |
Max Continuous Charging Current (A) | 50 | 100 | 200 |
Standard Discharge Current (A) | 25 | 50 | 100 |
Max Continuous Discharging Current (A) | 50 | 100 | 200 |
Oprating Temperature (℃) | -30℃~60℃ (Recommend 10℃~35℃) | ||
Allowable Humidity Range | 0~85%RH | ||
Storage Temperature (℃) | -20℃~65℃ (Recommend 10℃~35℃) | ||
Protection Leval | IP20 | ||
Cooling Method | Natural Air Cooling | ||
Certificate | CE/UN38.3/MSDS | ||
Cycle Life | Around 5000 Times | ||
Communication | RS485 (CAN Optional) | ||
Parallel Function | 48V support at most support 15packs in parallel use (Capacity is 150Kwh) | ||
Max Size (W*D*H) mm | 450*550*210 | 550*565*156 | 465*682*288 |
Weight | 30KG | 45KG | 100KG |
Remark | 0.5C Discharge MAX: 1C, 80%DOD | ||
Campatible Inverters | SOFAR, OMNIK, KSTAR, SMA, GOODWE, GROWATT, DEYE, More brands will be announced | ||
