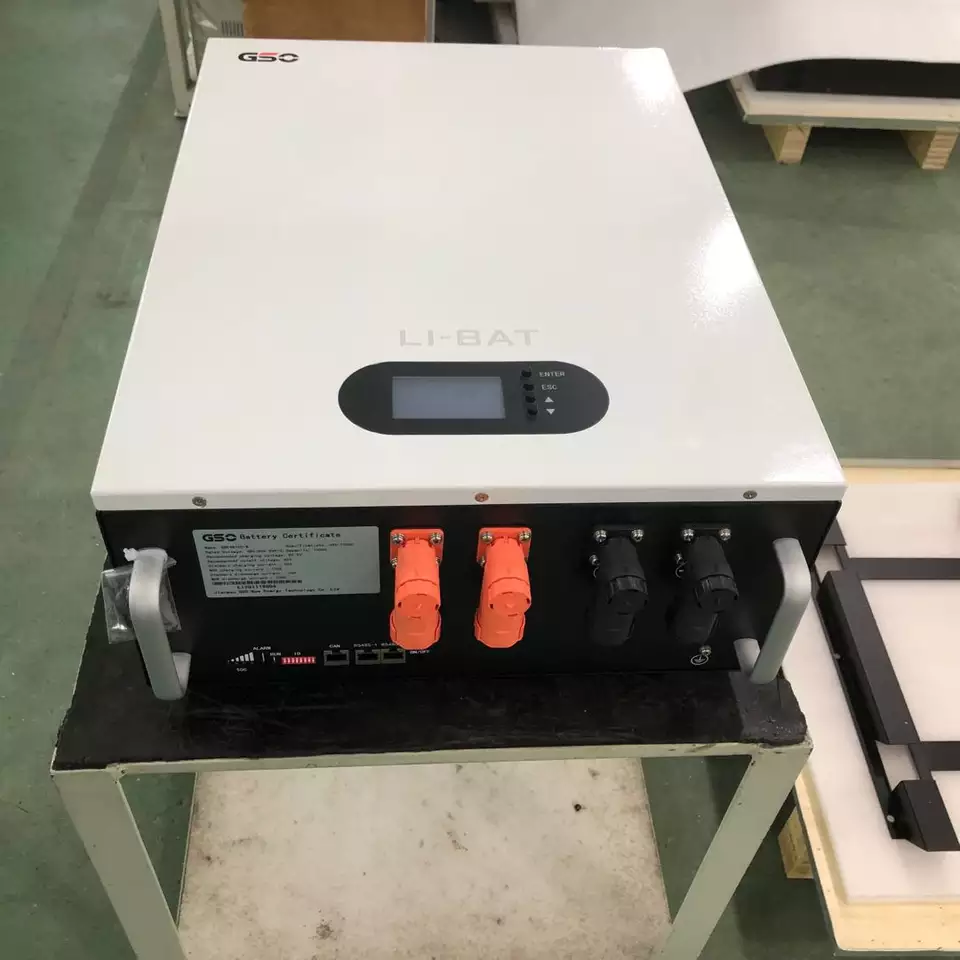

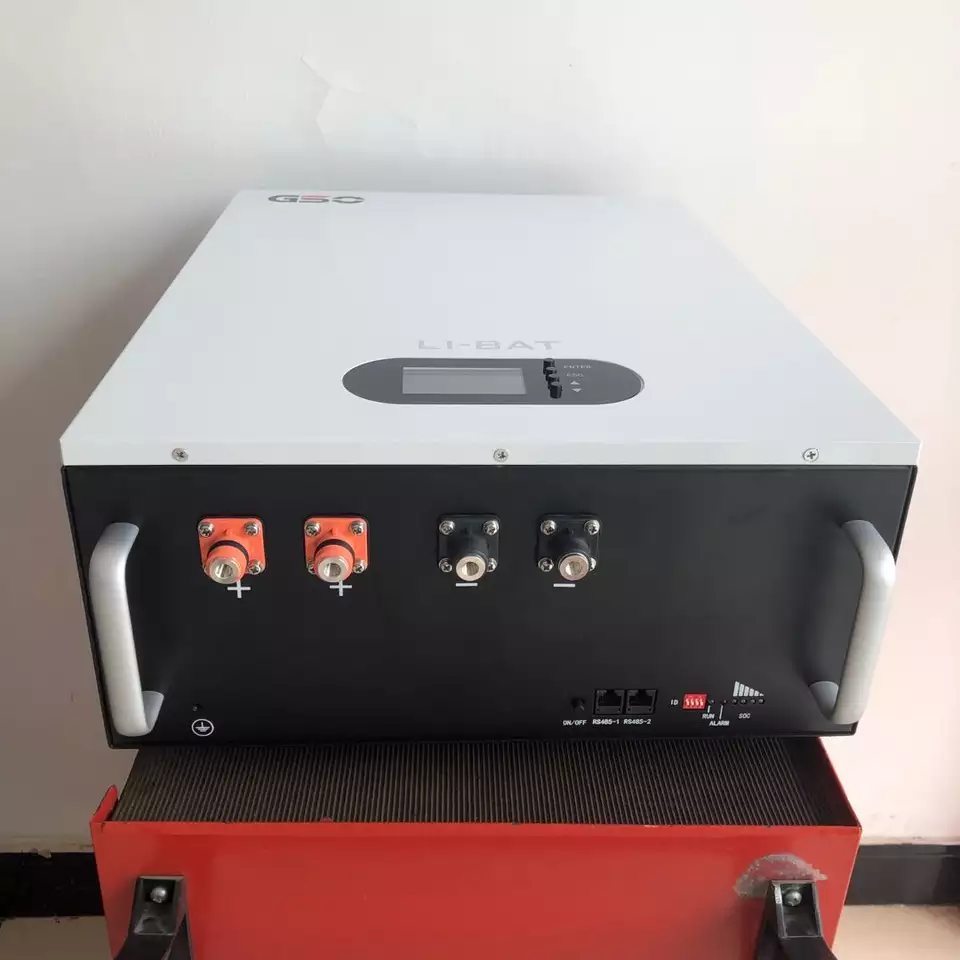

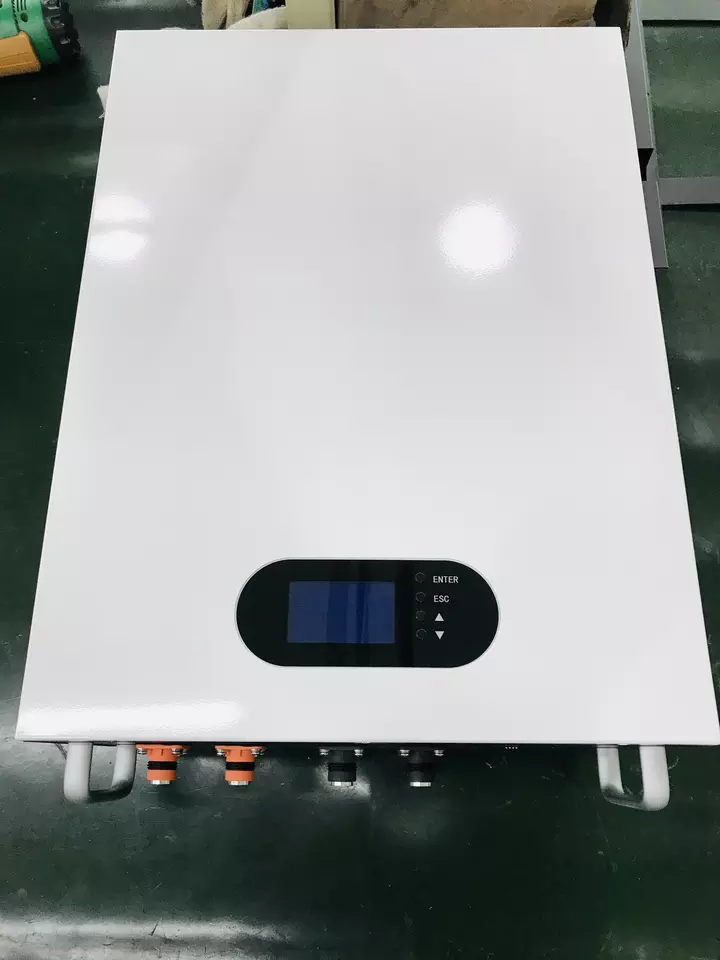

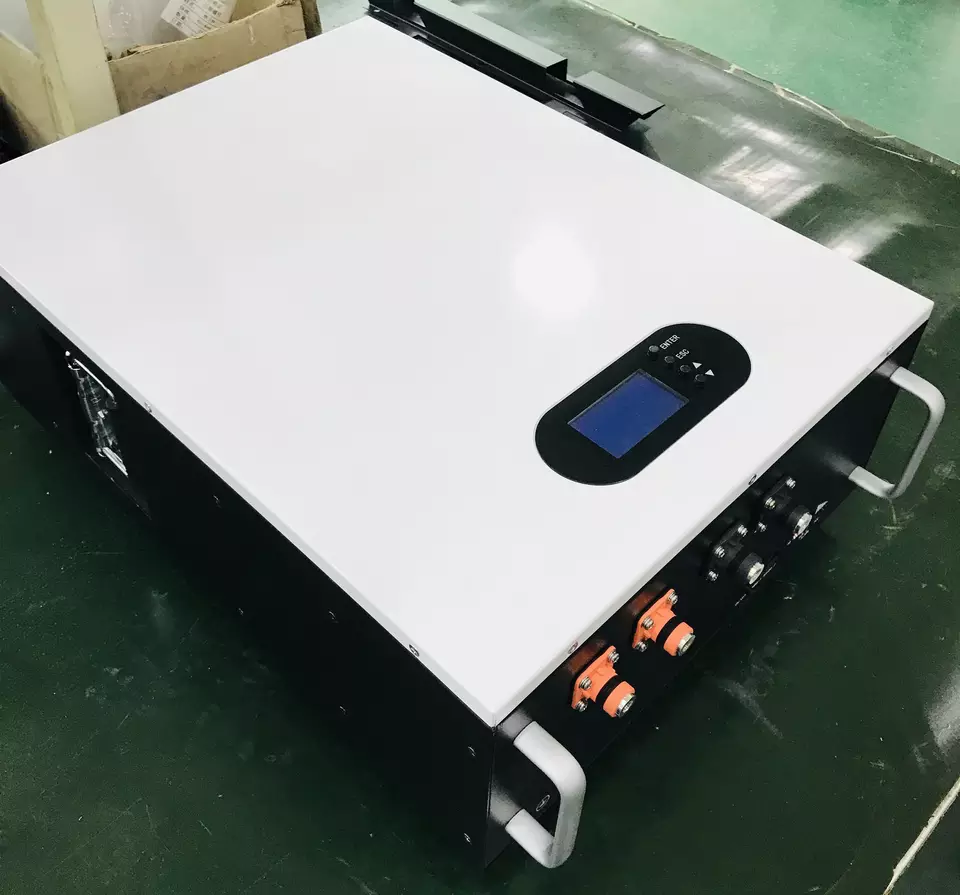

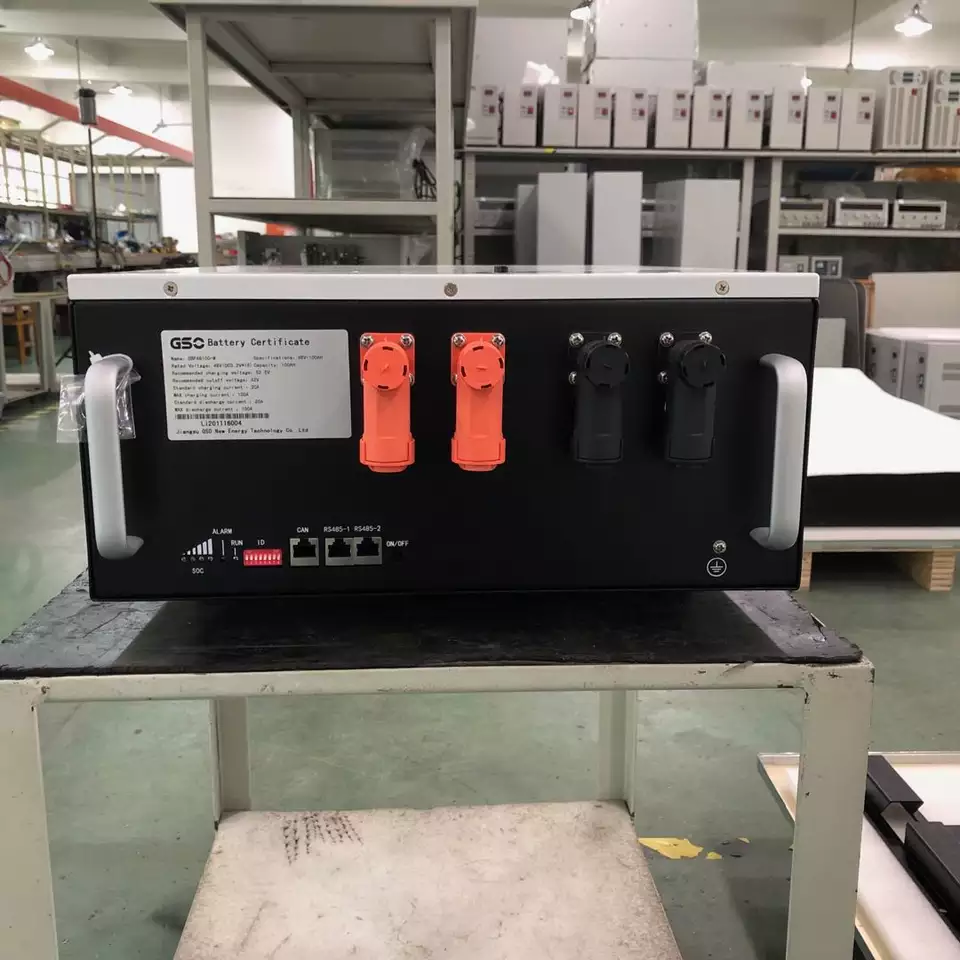

25.6v 24v 100ah 200ah Lifepo4 Lithium Ion Rechargeable Battery
Lithium ion battery have been deployed in varied places. From a small electronic...
Lithium ion battery have been deployed in varied places. From a small electronic...
Lithium ion battery have been deployed in varied places. From a small electronics battery to large energy storage and power driving batteries used in solar system, golf cart, agv, sail boat, forklift, robot, medical equipment, electric mobility, power back up, ups and other application, lithium iron phosphate batteries are available in all shapes and sizes. And that renders them to be the perfect option for power needs irrespective of the size of the application devices.
Model | GBP24V-100AH | GBP24V-200AH |
Nominal volt（V） | 24 | |
Nominal capacity（AH） | 100(2.5KWH) | 200(5KWH) |
Working volt range (V) | 22.8-30 | |
Recommend charging volt（V） | 28 | |
Recommend discharging cutoff volt（V） | 23.2 | |
Standard charging current(A) | 25 | 50 |
Max. Constant charging current(A) | 50 | 100 |
Standard discharging current（A） | 25 | 50 |
Max. Discharging current（A） | 50 | 100 |
Temperature（℃） | -30℃～60℃(Recommend 10℃～35℃) | |
Allowable humidity range | 0～85% RH | |
Storage temperature（℃） | -20℃～65℃(Recommend 10℃～35℃) | |
Protection | IP20 | |
Cooling method | Natural air cooling | |
Maximum Dimension(W*D*H) mm | 483*500*175 | |
Remark | 0.2C Discharge Max: 1C, 80% DOD | |
Parallel function | 24v support at most support 20 packs in paralle use(Capacity is 100kwh) | |
Net Weight | 30KG | 57KG |
