OEM Customized 48v 50ah Lithium Battery Module Battery Management System
For standard Narada lithium battery module, BMS is applied to monitor voltage, c...
For standard Narada lithium battery module, BMS is applied to monitor voltage, c...
For standard Narada lithium battery module, BMS is applied to monitor voltage, current, temperature of cells and module, take protections against over-charge, over-discharge, over-current, over temperature,under-temperature and short circuit, etc., and provide cell
balancing and current limitation during charging process to ensure a reliable safety and excellent performance.
Meantime, Narada supply customized upper computer software for BMS communication via RS485 to set parameters or read monitoring data.
Battery Specification | 15S |
Rated Voltage | 48V |
Rated Capacity | 50Ah (C5, 0.2C to 40.5V @ 25oC) |
Discharge Current (Max.) | 50A |
Discharge End Voltage | 40.5V |
Charge Current (Recomm.) | 10A |
Charge Current (Max.) | 50A |
Charge Voltage | 54±0.5V |
Typical Weight | 28.5 Kg |

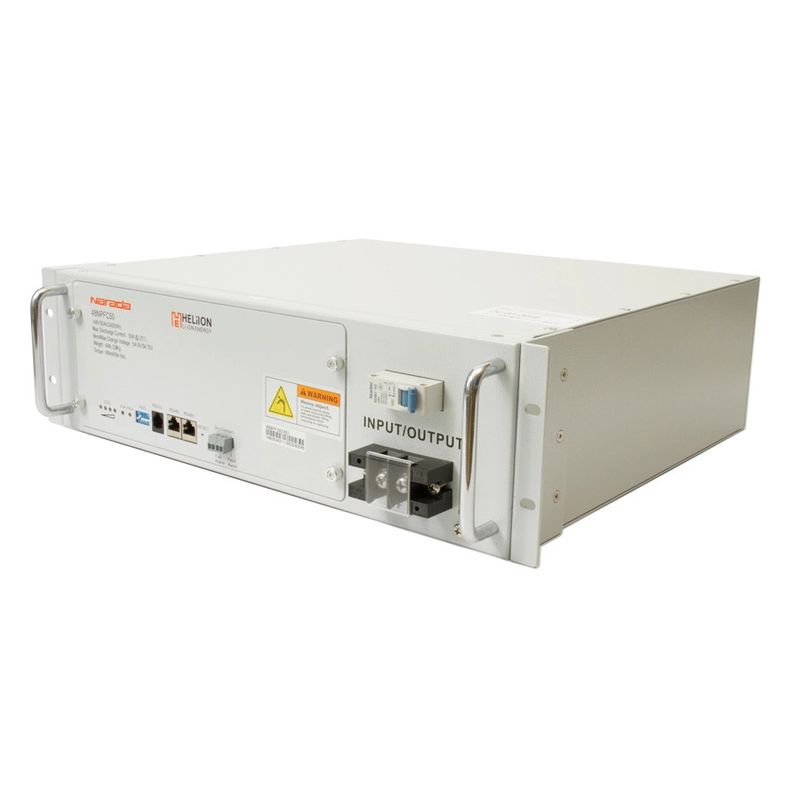

Layout of Front Pannel | |
Status Indicators | SOC / ALM / RUN |
Communication Ports | RS232 / RS485*2 |
Communication in Parallel | modules in parallel maximum |
Reset Key | Available |
