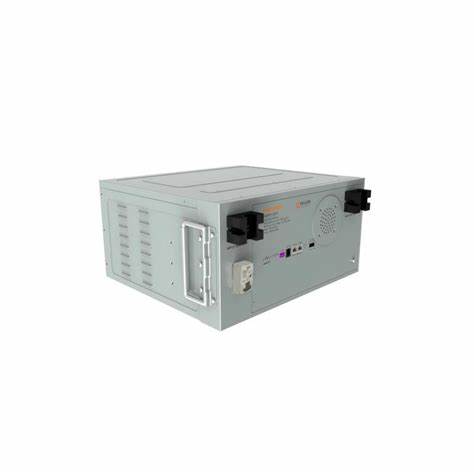

OEM Customized 48v 100ah Lithium Battery Module Battery Management System 48NPFC100
For standard Narada lithium battery module, BMS is applied to monitor voltage, c...
For standard Narada lithium battery module, BMS is applied to monitor voltage, c...
For standard Narada lithium battery module, BMS is applied to monitor voltage, current, temperature of cells and module, take protections against over-charge,over-discharge,over-current,over-temperature,undertemperature and short circuit, etc., and provide cell balancing and current limitation during charging process to ensure a reliable safety and excellent performance.
Meantime, Narada supply customized upper computer software for BMS communication via RS232 or RS485 to set parameters or read monitoring data.
Battery Specification | |
Rated Voltage | 48V |
Rated Capacity | 100Ah |
Discharge Current (Max.) | 100A |
Discharge End Voltage | 40.5V |
Charge Current (Recomm.) | 20A |
Charge Current (Max.) | 100A |
Charge Voltage | 54±0.5V |
Typical Weight | 51.5 Kg |

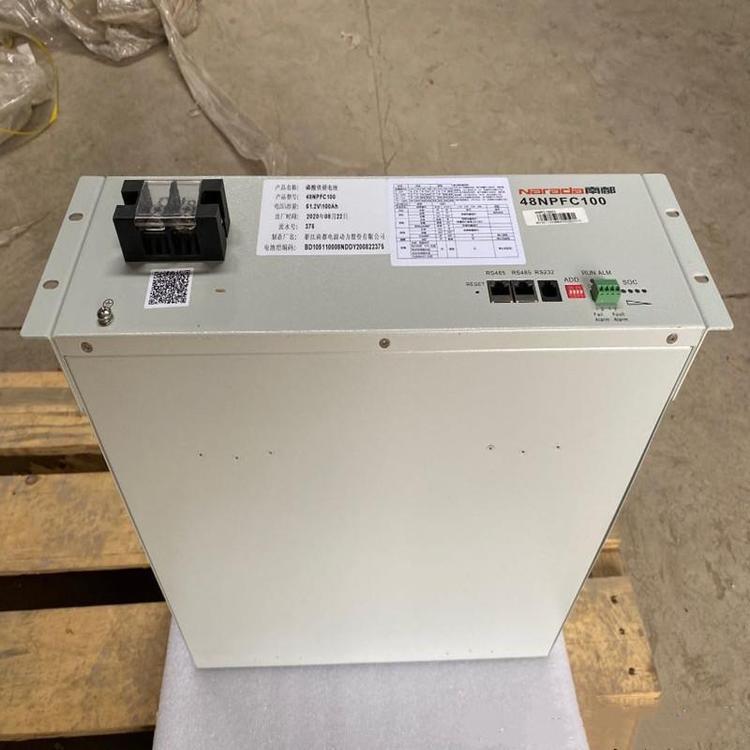

Layout of Front Pannel | |
Status Indicators | SOC / ALM / RUN |
Communication Ports | RS232 / RS485*2 |
Communication in Parallel | 8 modules in maximum |
Reset Key | Available |
