Hiross Brand 41KW M41 Natural Cooling Machine Room Air Conditioner Precision Air Conditioner
When the outdoor temperature is high, a high energy efficiency scroll compressor...
When the outdoor temperature is high, a high energy efficiency scroll compressor...
When the outdoor temperature is high, a high energy efficiency scroll compressor is used for refrigeration, which is highly efficient and energy-saving
When the outdoor temperature is low, an energy-saving system is used for refrigeration to reduce air conditioning energy consumption
High energy efficiency scroll compressor, high efficiency and energy saving
Fully adjustable speed outdoor unit, to achieve energy-saving operation and ensure stable system pressure
Large area V-shaped evaporator, high sensible heat ratio design
Intelligent controller, to achieve efficient and stable operation of the unit
High-quality components that have been strictly certified
Intelligent controller automatically switches the refrigeration mode, with multiple protection functions to ensure safe and stable operation of the unit
Intelligent control system with fault self-diagnosis and early warning functions
Detachable and transportable structure, 100% full front maintenance
Integrated design, easy to install and maintain
Small footprint
Ultra-large screen full Chinese graphic display
Provide standard RS485 interface, and optional SNMP card for remote monitoring
Intelligent controller, to ensure safe and reliable operation of the unit
Unit parameter configuration table | ||||
No. | Name | Parameters | Brand | |
1 | model | M41 | Heroth | |
2 | Unit performance | blowing rate (m³/h) | 12470 | |
3 | Cold volume (kw) | 45.8 | ||
4 | Input power in nominal refrigeration condition (kw) | 10 | ||
Quantity of compressor | 1 | |||
5 | Heat production (electric heating) (kw) | |||
6 | Input power in nominal heating condition (kw) | |||
7 | External residual pressure (static pressure) (Pa) | 380 | ||
8 | Temperature control range is (℃) | 18~31 | ||
9 | source | 380V 50Hz | ||
10 | cryogen | R22 | R410a R407c | |
11 | Energy saving way | Electronic expansion valve | ||
12 | energy management | 25.50.75.100 | ||
13 | Electrical heating type | electrode | ||
14 | Electric heating power (kw) | 15 | ||
15 | Type of humidifier | The electrode type | ||
16 | Humidification amount (kg) | 13 | ||
17 | Humidifier power (kw) | 9 | ||
18 | Humidifier pipe diameter: (Φ) | |||
19 | Humidity control range | 40~75 | ||

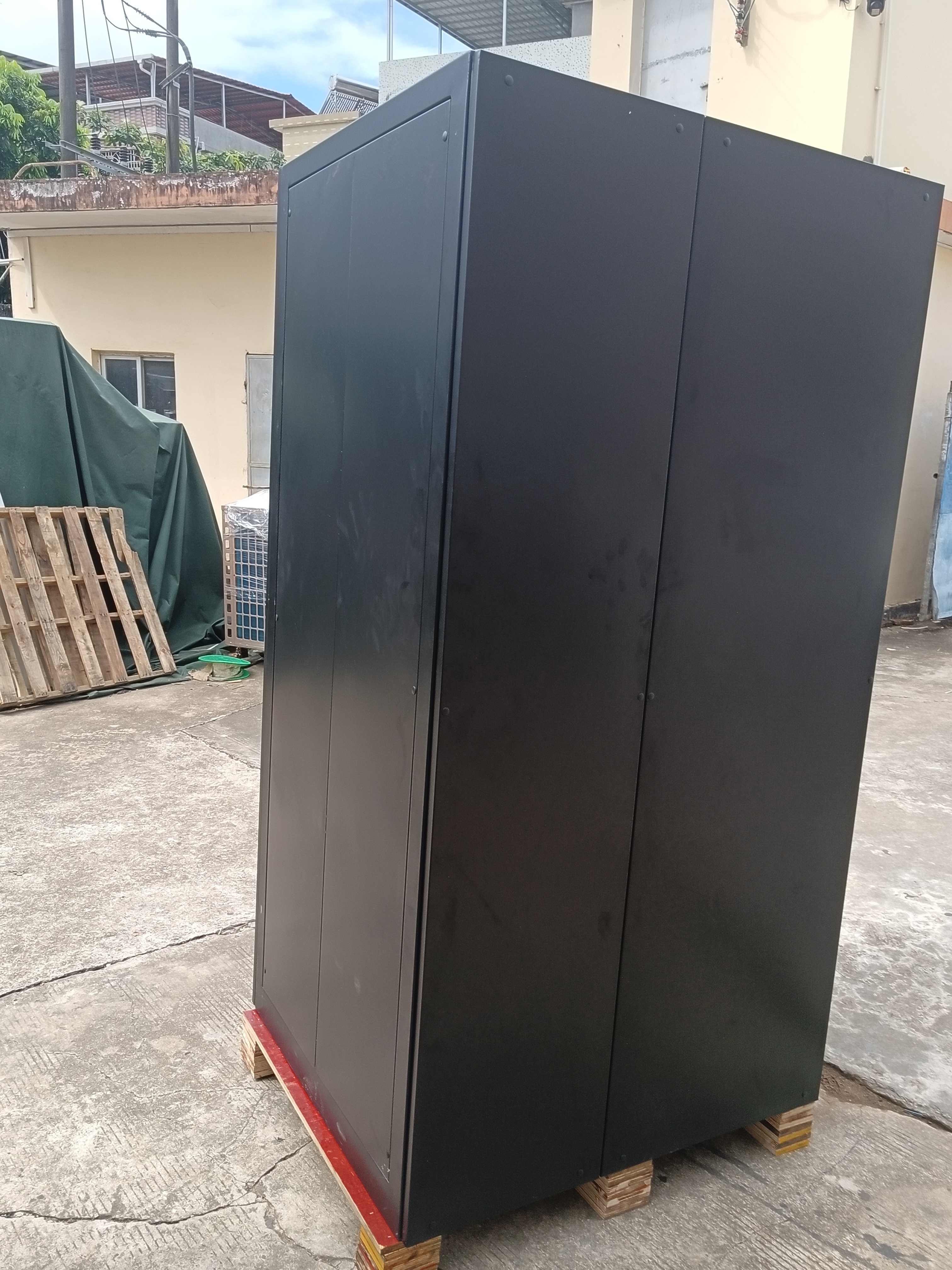

20 | an indoor unit | Evaporator type | Copper tube sleeve aluminum fin | |
21 | air filter | The initial effect | ||
22 | Indoor fan type | Low-noise centrifugal fan | ||
23 | Indoor fan power | |||
24 | External dimensions (indoor) | |||
25 | Unit weight | |||

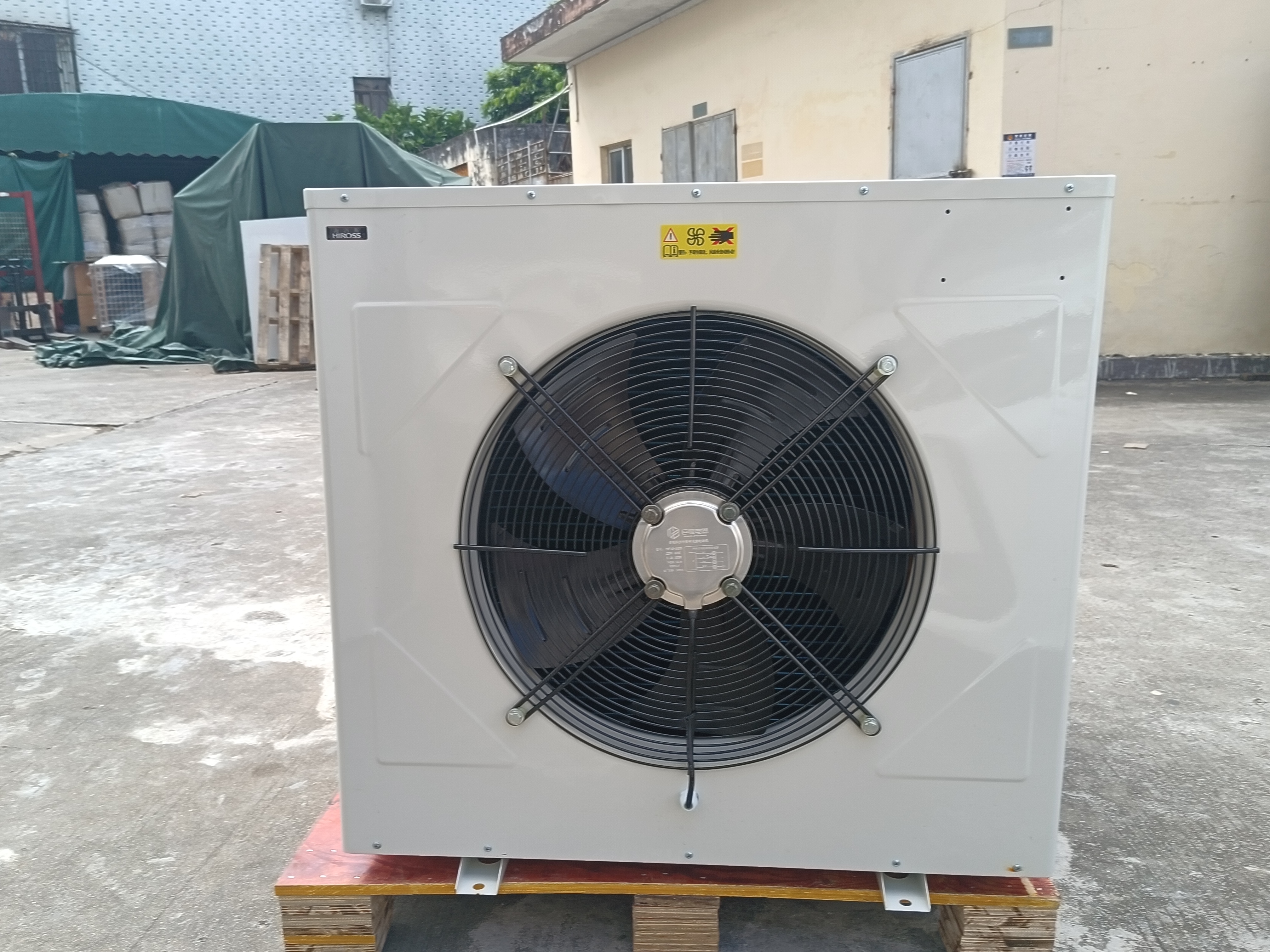

26 | an outdoor unit | Condenser type | Copper tube sleeve aluminum fin | |
27 | Outdoor fan type | Low-noise axial flow fan | ||
28 | Power of outdoor fan | |||
29 | External dimensions (outdoor) | |||
30 | Unit weight | |||
31 | other | Return to the wind | Horizontal air supply air, horizontal return air | |
32 | Indoor and outdoor machine link pipe | copper pipe | ||
33 | Link form | weld | ||
quantity | 2 | |||
caliber | 28/22 | |||
34 | noise dB(A) | 58 | ||
35 | Remote control system interface | RS485/RS232 | ||
36 | With the power-off memory function | Automatic power-on after power outage and reset | ||
37 | With the temperature and humidity early warning function | The alarm parameters can be set | ||
