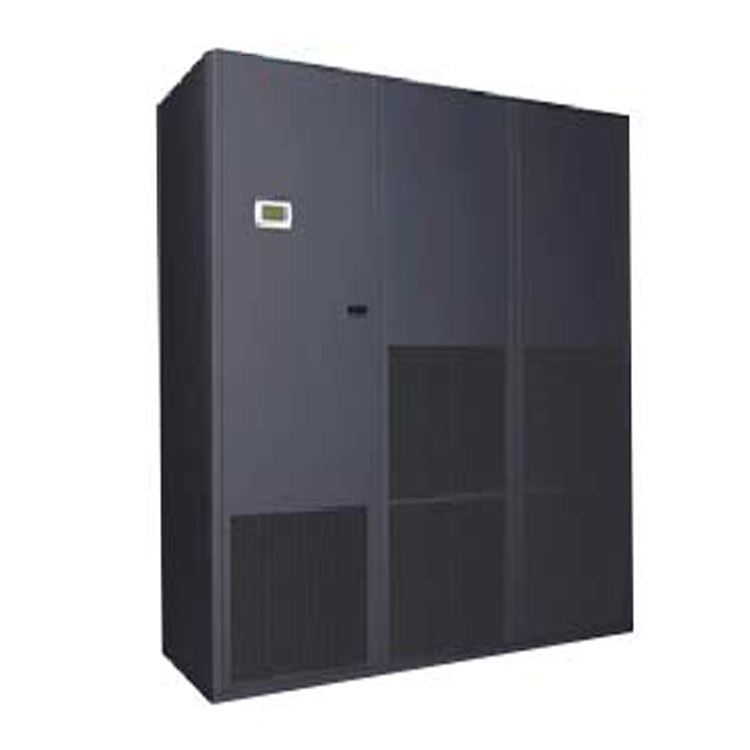

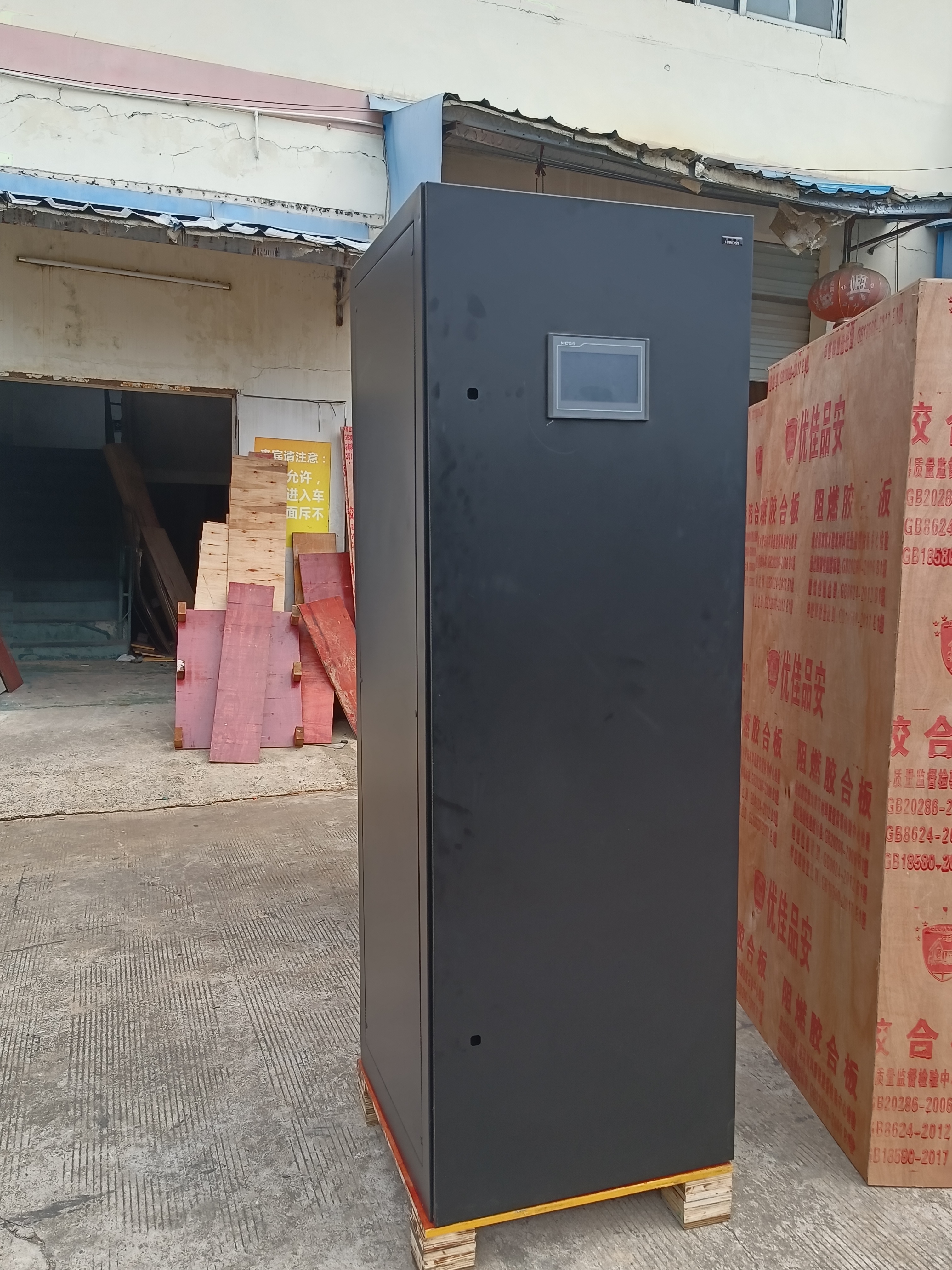

HIross Precision Air Conditioning for Himod P Series 21kw Direct Expansion Air Cooling Water Cooling

Features for HIMOD P series

Flexibility -- Modular design, beautiful appearance and uniform are good for module combination.

High efficiency fan -- Using the variable impeller high efficiency fan, the static pressure can be adjusted in 20Pa ~ 450Pa. Combined with the high pressure chamber with special design achieves the low noise.

Energy saving -- Due to the use of high efficiency fan and a scroll compressor, the power consumption of P series is greatly reduced (35% lower than traditional models), so as the operation and repair cost.

Intelligent -- Each module control consists of a new microcomputer controller (DDC-MICRFACE).

Installation is simple and convenient to repair -- Totally frontal maintenance, disassembly simple repair, and mean time to repair is very short.

A recycled industrial material is used in environmental protection – HIMOD series plays a positive role in environmental protection.

Specification

Model		P06	P07	P08	P09	P10	P11	P15	P17
Total cooling cap.	kW	21.5	27.9	30.2	32.8	35.7	39.2	50.0	58.5
Humidity cap.	kW	21.0	25.7	28.0	30.2	34.0	38.6	45.7	55.1
Hum.Heat ratio		0.98	0.92	0.93	0.92	0.95	0.98	0.91	0.94
EER		3.43	3.35	3.65	3.45	3.69	3.62	3.69	3.45
The cold air ratio	w/m3	3.58	4.16	3.78	3.38	3.43	3.56	3.35	3.98
Compressor Q.	/h n		1	1	1	1	1		1
Input power	kW	4.4	5.9	6.0	6.9	7.0	7.8	13.7	12.0
Wind rate	m3/h	6000	6700	8000	9700	10400	11000	15000	14700
Max.Pressure	Pa	50 Max.to 350(最大可调整到350)
Fan input power	kW	1.87	2.42	2.28	2.61	2.68	3.04	4.96	4.94
Noise	dB(A)	51	54	53	55	56	58	58	58
Humidity	kg/h	9	9	9	9	13	13	13	13
Power of hum.	kW	5.8	5.8	5.8	5.8	9.0	9.0	9.0	9.0
Heating power	kW	5.85	5.85	7.5	7.5	15	15	15	15
Temperature accuracy	℃	+/-0.5
Humidify accuracy	%	+/-2
Length	mm	1200	1200	1200	1200	1200	1200	1850	1850
Width	mm	800	800	800	800	800	800	850	850
Height	mm	1800	1800	1800	1800	1800	1800	2000	2000
Weight	kg	260	270	425	430	575	580	600	620
