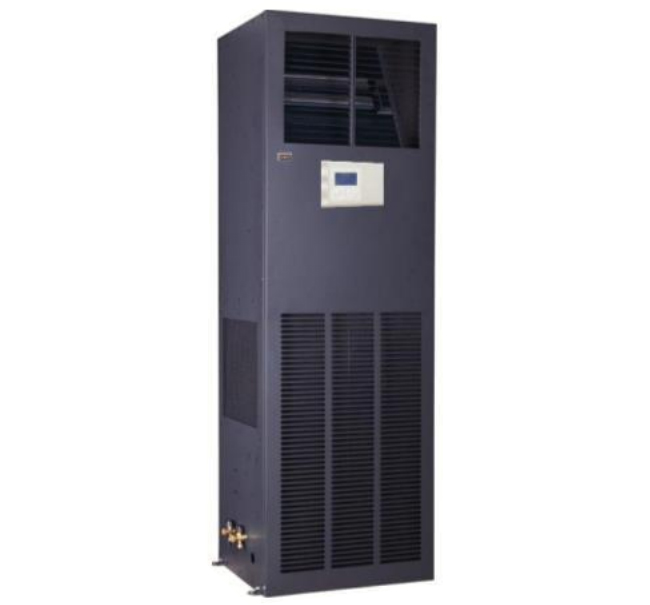

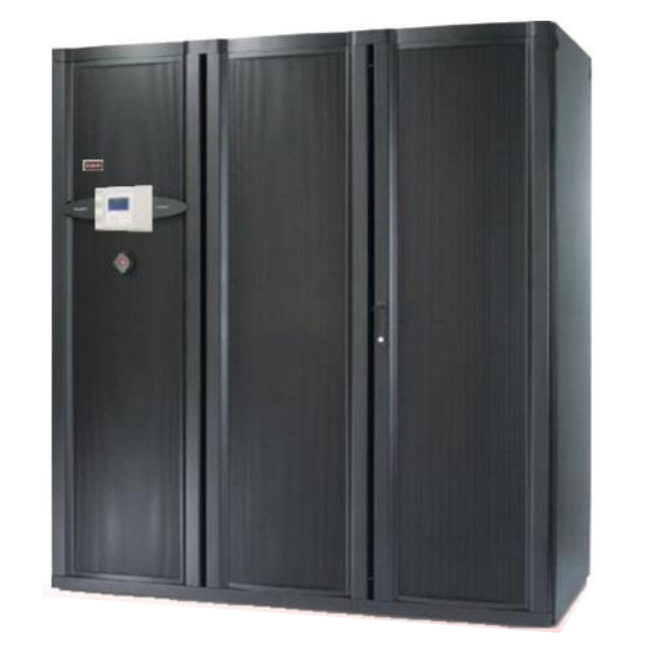

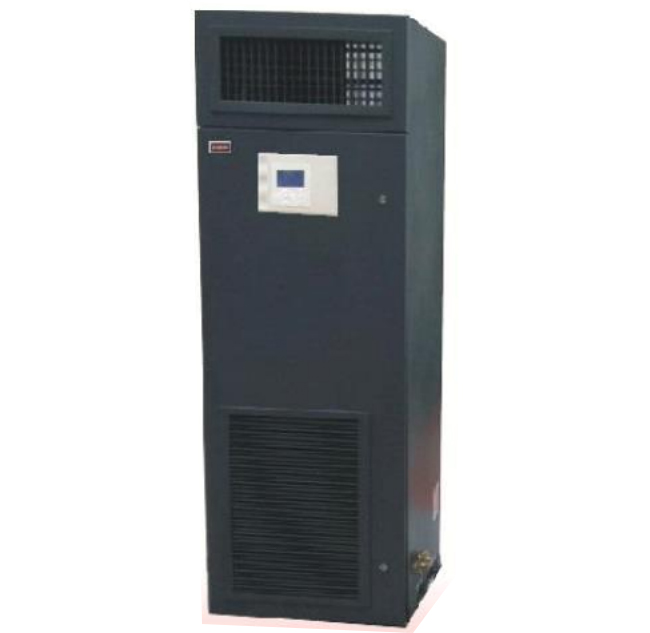

Hiross precision air conditioning room constant temperature and humidity wine cellar air conditioning

The large surface area of evaporator coil improves the efficiency of units to ensure the effect of energy saving. The "V" structure of coil can make refrigeration system cycle match the refrigeration load. The air flow through the coil surface is smooth, and the "V" structure of coil also reduces the noise. When dehumidification, turn off the coil that only uses the part of 2/3. 65% of energy is used for dehumidification and it can effectively remove the moisture, greatly reduce the chance for reheating, and obviously provide the effect of energy saving.

Specification

U/O/D/G/K/LAW		S03	S04	S05	S07	S10	S12	S13	S16 S17
Wind rate	3 m/h	1050	1350	1550	2300	2800	2900	4600	4800 5250
Total cooling cap.	kW	2.7	4.4	5.5	8.1	10.4	13.4	14.3	16 16.9
Humidity cap.	kW	2.6	4.3	5.2	7.6	10.0	12.5	13.7	15.6 16.1
Hud.Heat ratio		0.98	0.98	0.95	0.94	0.96	0.90	0.96	0.95 0.95
Efficiency		3.32	3.33	3.37	3.38	3.71	3.47	3.88	3.77 3.76
Max.pre.(below)	Pa	120	200	170	240	130	180	280	250 220
Max.pre.(above)	Pa	120	250	180	240	130	180	280	250 220
Noise (below)	dB(A)	42.5	45.5	45.0	47.3	48.2	50.5	49.0	49.1 49.2
Noise(above)	dB(A)	42.9	45.9	47.4	50.1	51.3	53.5	51.4	51.4 51.3
Electrode	kW	1.95	1.95	1.95	4.5	4.5	4.5	5.85	5.85 5.85
Electrode grade Humidity	kg/h	3 2	3 2	3 2	3 4.5	3 4.5	3 4.5	3 9.0	3 9.0	3 9.0
Power of hum.	kW	1	1.5	1.5	3.0	3.0	3.0	5.8	5.8 5.8
cooling water data (W type:30℃ inlet;condensing temperature:45℃
Flow rate	l/s	0.12	0.15	0.28	0.20	0.26	0.31	0.33	0.38 0.41
Pressure	kPa	1	1	4	8	13	18	8	10 11
Total power	kW	3	3.3	3.6	7.3	8.1	9.6	9.7	11.4 10.1
