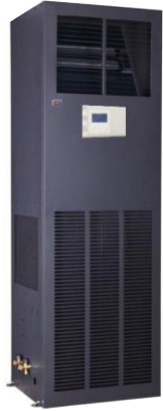

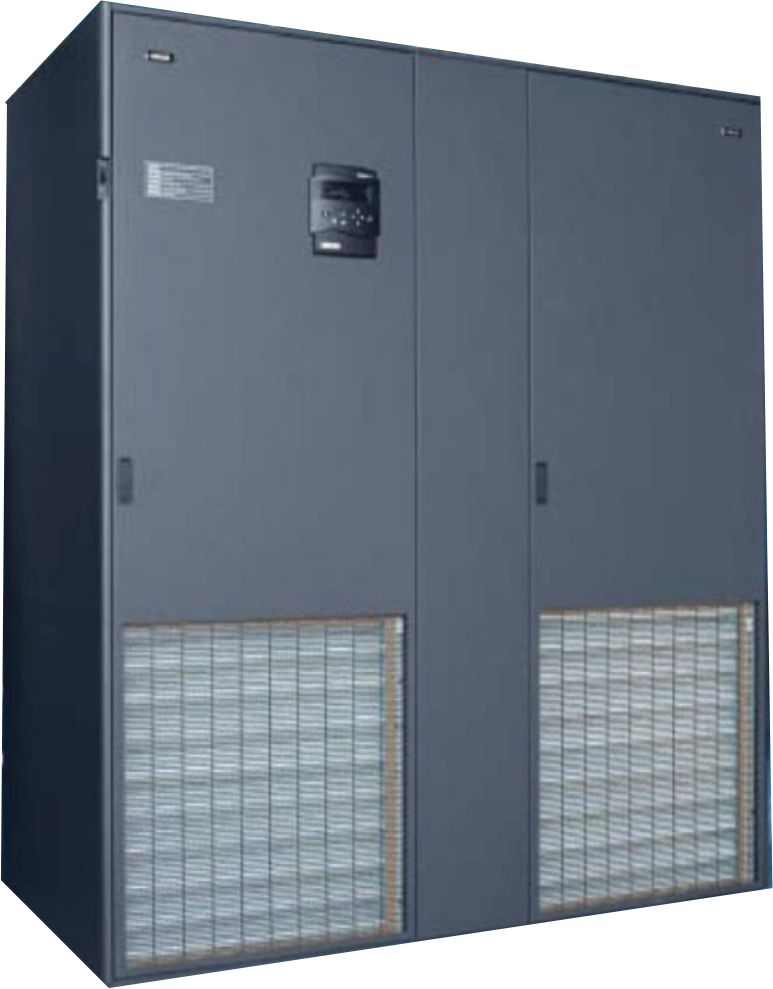

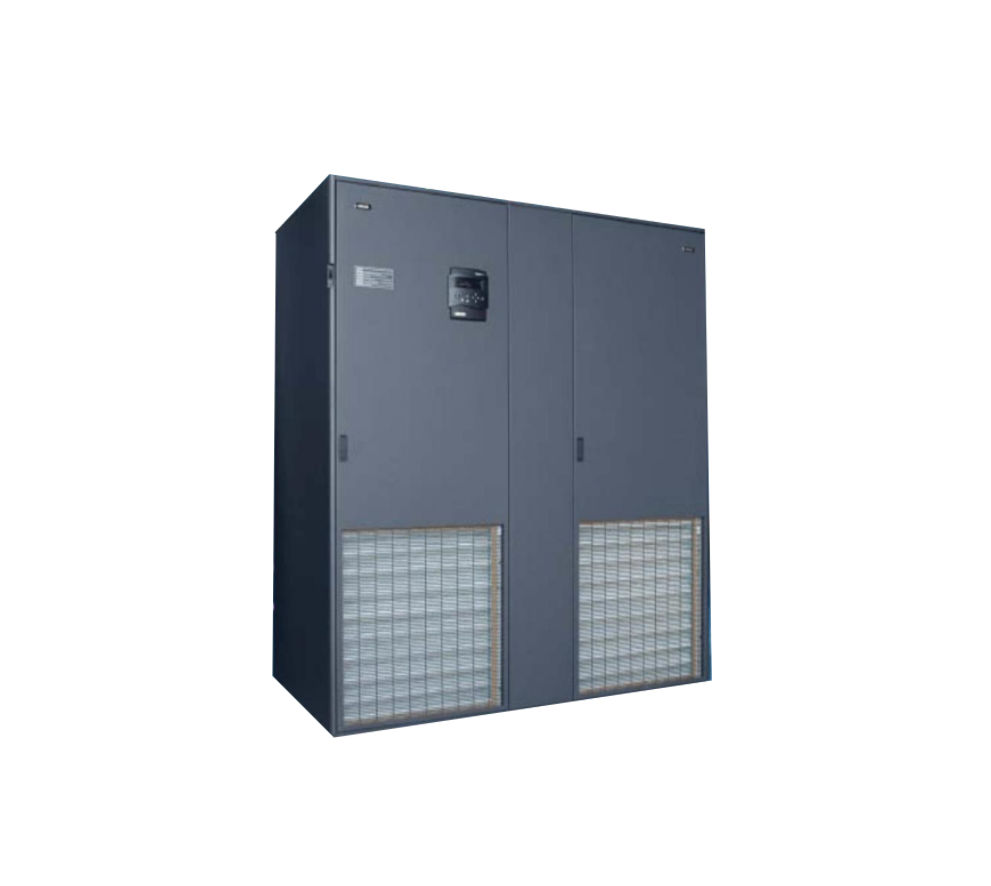

Hiross Precision Air Conditioning Direct Expansion Air Cooling Water Cooling

Features of HIMOD series

Flexibility:

HIMOD series is designed as the modular with uniformappearance and is also supported the module combination.Avariety of models can be selected by customers,and issuitable for various conditions.A wide range of optionalaccessories is used to adapt the variety of environmentalrequirements.Each unit has adjustable speed fan,using acombination of without considering the pressure problems.

High efficiency fan

The new impeller speed high efficiency fan withstatic pressure between 20Pa and 450Pa combineswith the high pressure chamber with special design.Low noise can be achieved for the HIMOD series

Specification

Model		M42	M47	M50	M58 M66	L83U	L99U
Characteristics
Total cooling cap.	kW	42.8	53.7	54.9	60.1 70.3	86.3	104.6
Humidity cap.	kW	41.5	49.0	52.2	58.3 68.9	79.5	95.2
Hum.Heat ratio		0.97	0.91	0.95	0.97 0.98	0.92	0.92
EER		3.63	3.45	3.59	3.40 3.49	3.31	3.68
Compressor Q.	n	2	1	2	2 2	2	2
Compressor power	kW	2x4.39	12.1	2x5.9	2x6.96 2x7.98	2x9.0	2x11.2
Fan Q.	n	2	2	2	2 2		2
Fan input power Wind rate	kW m³/h	2x1.51 12530	2x1.74 13550	2x1.74 13540	2x1.89 2x2.09 14580 15470	2x2.8 21520	2x3.0 24000
Max.Pressure	Pa	390	300	300	250 180	200	120
Noise	dB(A)	58	60	59	61 63	64.9	66.3
Humidity	kg/h	13	13	13	13 13	13	13
Power of hum.	kW	9	9	9	9 9	9	9
Heating power	kW	15	15	15	15 15	22.5	22.5
Tube	mm	22/18	28/22	22/18	22/18 28/22	28/22	28/22
standard water-cooling type -W(inlet water temperature of 30 ℃,outlet water temperature of 45 ℃)
Water flow	l/s	2x0.51	1.28	2x0.66	2x0.72 2x0.84	2x1.12	2x1.35
Pressure	kPa	12	13	20	12 12	10	11
Pipe	inch	23/4”	11/4”	21/4”	21/4” 21/4”	21/4”	21/4”
Max.power consumption	kW	22.4	30.5	24.4	25.8 27.2	37	39.7
Length	mm	1500	1850	1850	1850 1900	2150	2300
Width	mm	800	850	850	850 950	1000	1080
Height	mm	1800	1800	1800	1800 1800	1800	1800
Weight	Kg	600	620	635	650 670	950	1000
