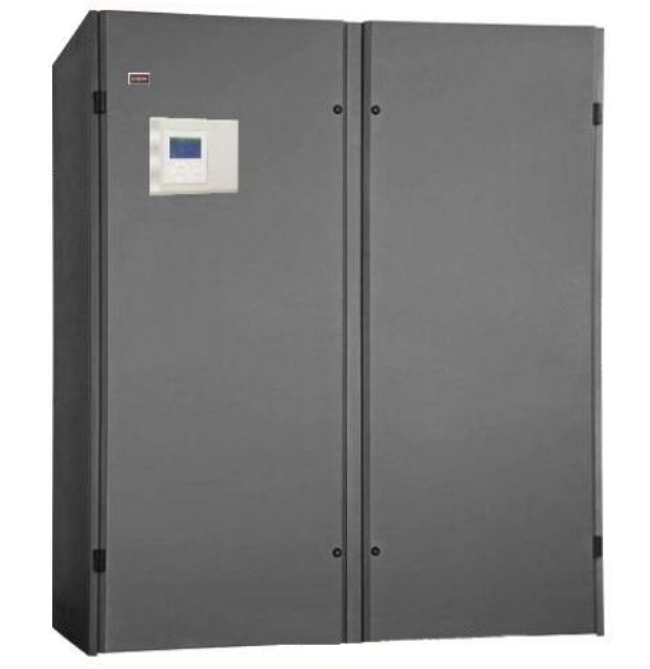

HIROSS S17 16.9KW Precision Air Conditioning Room Constant Temperature And Humidity Wine Cellar Air Conditioning
Features l Maximum flexibilityHigh-efficiency fanEnergy savingIntelligent contro...
Features l Maximum flexibilityHigh-efficiency fanEnergy savingIntelligent contro...
l Maximum flexibility
High-efficiency fan
Energy saving
Intelligent control
Easy installation and maintenance
No. | Factors | Description | Model parameter |
1 | Model number | S17 | |
2 | Unit performance | blowing rate (m³/h) | 5250 |
3 | Cold volume (kw) | 16.9 | |
4 | Input power in nominal refrigeration condition (kw) | 4.95 | |
5 | External residual pressure (static pressure) (Pa) | 0~220 | |
6 | Temperature control range is (℃) | 18~31 | |
7 | source | 380V 50Hz | |
8 | cryogen | R22 | |
9 | Energy saving way | expansion valve | |
10 | Electrical heating type | electrode | |
11 | Electric heating power (kw) | 5.85 | |
12 | Type of humidifier | The electrode type | |
13 | Humidification amount (kg) | 9 | |
14 | Humidifier power (kw) | 5.8 | |
15 | Humidity control range | 40~75 | |
16 | an indoor unit | Evaporator type | Copper tube sleeve aluminum fin |
17 | air filter | The initial effect | |
18 | Indoor fan type | Low-noise centrifugal fan | |
19 | Indoor fan power | 550w | |
20 | External dimensions (indoor) | 750*750*1950 | |
21 | an outdoor unit | Condenser type | Copper tube sleeve aluminum fin |
22 | Outdoor fan type | Low-noise axial flow fan | |
23 | Power of outdoor fan | 500 | |
24 | External dimensions (outdoor) | 850*450*1600 | |
25 | other | Return to the wind | under floor air supply |
26 | Indoor and outdoor machine link pipe | copper pipe | |
27 | Link form | weld | |
28 | quantity | 2 | |
29 | caliber | 16&12 | |
30 | noise dB(A) | 51.3 | |
31 | Remote control system interface | RS485 | |
32 | With the power-off memory function | Automatic power-on after power outage and reset | |
33 | With the temperature and humidity early warning function | The alarm parameters can be set | |
34 | Unit wiring | 3*6+2*4 |
