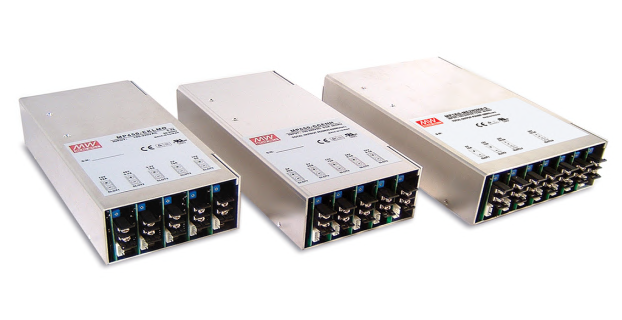

Mean Well MP series 450W/ 650W/1000W Modular Power for 2V 3.3V 5V 7.5V

DC VOLTAGE

2V

3.3V

5V

7.5V

12V

15V

18V

24V

27V

33V

48V

RATED CURRENT

25A

25A

25A

18A

13A

10A

8.5A

6.5A

5.8A

4.7A

3.2A

CURRENT RANGE

0 ~ 25A

0 ~ 25A

0 ~ 25A

0 ~ 18A

0 ~ 13A

0 ~ 10A

0 ~ 8.5A

0 ~ 6.5A

0 ~ 5.8A

0 ~ 4.7A

0 ~ 3.2A

PEAK LOAD Note.4

30A

30A

30A

20.7A

15A

11.5A

9.8A

7.5A

6.7A

5.4A

3.68A

RATED POWER

50W

82.5W

125W

135W

156W

150W

153W

156W

156.6W

155.1W

153.6W

RIPPLE & NOISE (max.) Note.2

50mVp-p

80mVp-p

80mVp-p

100mVp-p

150mVp-p

150mVp-p

150mVp-p

150mVp-p

150mVp-p

250mVp-p

250mVp-p

VOLTAGE ADJ. RANGE

1.6 ~ 2.6V

2.6 ~ 4V

4 ~ 6V

6 ~ 9V

9 ~ 13.2V

13.2 ~ 16.8V

16.8 ~ 20V

20 ~ 26.4V

25 ~ 31V

30 ~ 40V

40 ~ 53V

VOLTAGE TOLERANCE Note.3

±3.0%

±2.0%

±2.0%

±2.0%

±1.0%

±1.0%

±1.0%

±1.0%

±1.0%

±1.0%

±1.0%

LINE REGULATION

±0.5%

±0.5%

±0.5%

±0.5%

±0.3%

±0.3%

±0.3%

±0.2%

±0.2%

±0.2%

±0.2%

LOAD REGULATION

±2.0%

±1.0%

±1.0%

±1.0%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

SETUP, RISE, HOLD UP TIME

1500ms, 50ms, 20ms at full load

PROTECTION

OVERLOAD

121 ~ 150% rated output power

116 ~ 150% rated output power

Protection type : Constant current limiting, recovers automatically after fault condition is removed

OVER VOLTAGE

2.7 ~ 4V

4.1 ~ 5V

6.1 ~ 7.5V

9.1 ~ 11.2V

13.3 ~ 18V

16.9 ~ 22V

20.1 ~ 26V

26.5 ~ 35V

31.1 ~ 39V

40.1 ~ 48V

53.1 ~ 60V

Protection type : Shut down o/p voltage, re-power on to recover

FUNCTION

REMOTE INHIBIT CONTROL

RC+/RC-: 0 ~ 0.8V or OPEN, POWER ON RC+/RC-: 4 ~ 12V POWER OFF
