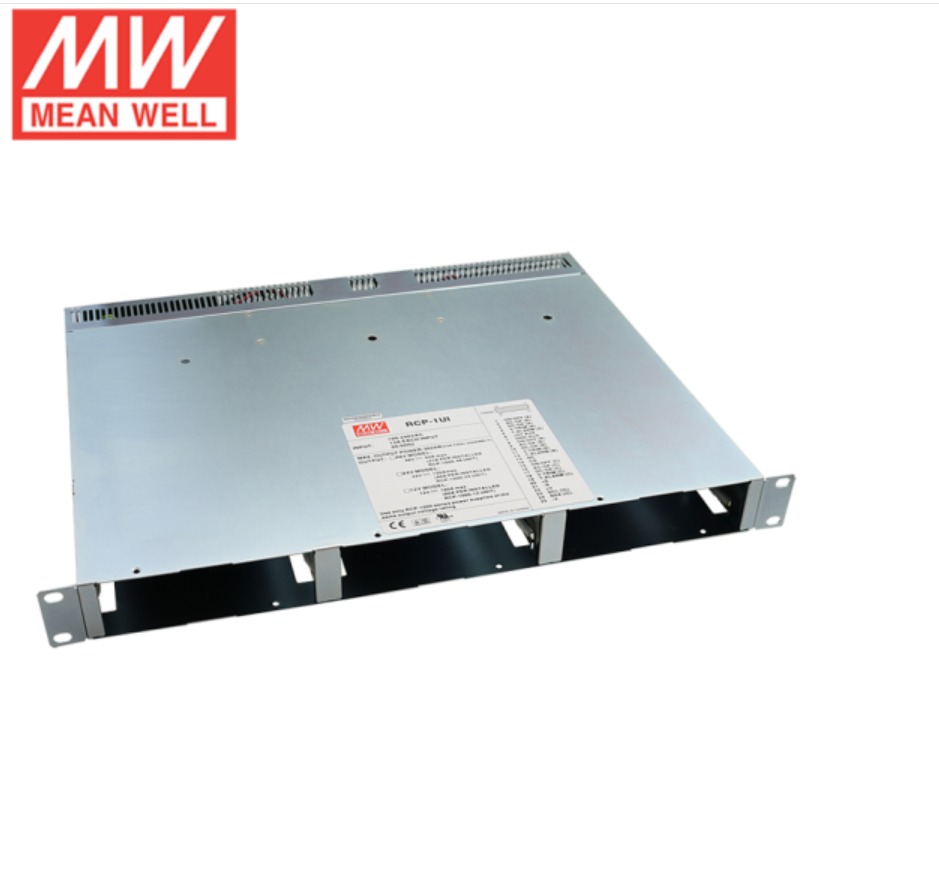

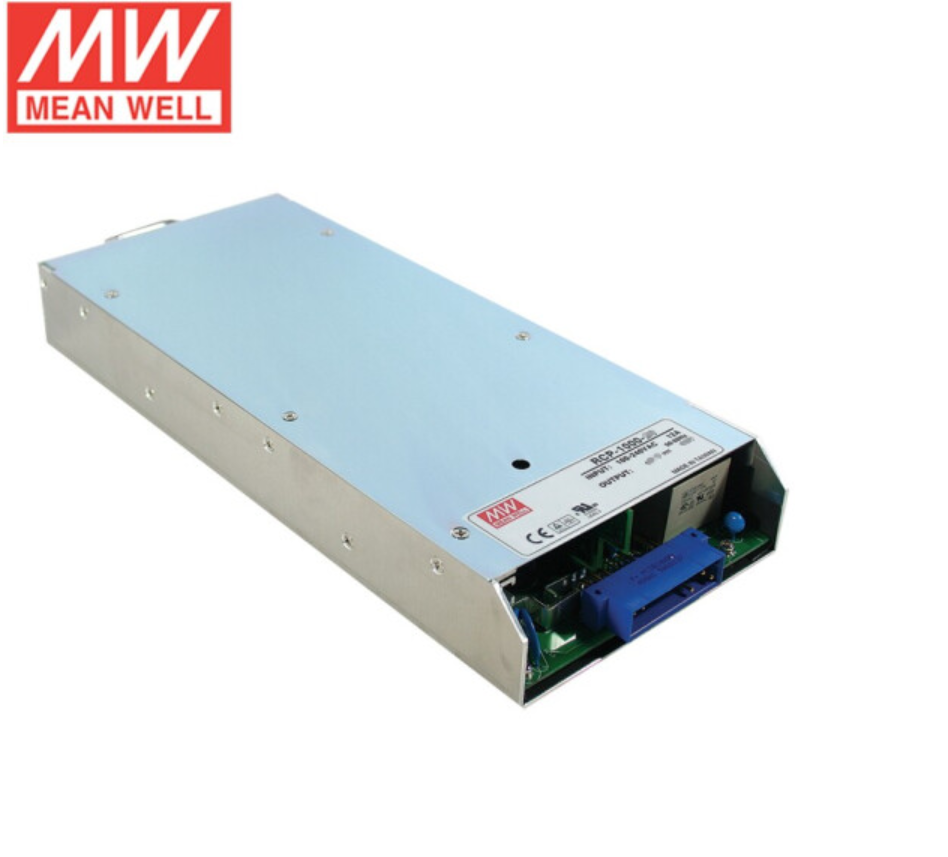

RCP-1000 is a 1Kw single output rack mount able front end AC/DC power supply This series operates for 90~264VAC input voltage and offers the models with the DC output mostly demanded from the industry. Each model is cooled by the built-in DC fan with fan speed control , working for the temperature up to 60℃ . RCP-1000 provides vast design flexibility by equipping various built-in functions such as the output programming, active current sharing ( up to 8000w via three 19” rack shelves, RCP-1U), remote control , auxiliary power, alarm signal , etc .
MODEL | RCP-1000-12 | RCP-1000-24 | RCP-1000-48 | |
OUTPUT | DC VOLTAGE | 12V | 24V | 48V |
RATED CURRENT | 60A | 40A | 21A | |
CURRENT RANGE | 0 ~ 60A | 0 ~ 40A | 0 ~ 21A | |
RATED POWER | 720W | 960W | 1008W | |
RIPPLE & NOISE (max.) Note.2 | 150mVp-p | 200mVp-p | 300mVp-p | |
VOLTAGE ADJ. RANGE(SVR) | 11.6 ~ 12.4V | 23.2 ~ 24.8V | 46.3 ~ 49.7V | |
VOLTAGE TOLERANCE Note.3 | ±1.0% | ±1.0% | ±1.0% | |
LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | |
LOAD REGULATION | ±0.5% | ±0.5% | ±0.5% | |
SETUP, RISE TIME | 1000ms, 60ms/230VAC at full load | |||
HOLD UP TIME (Typ.) | 16ms/230VAC at full load | |||
INPUT | VOLTAGE RANGE Note.4 | 90 ~ 264VAC 127 ~ 370VDC | ||
FREQUENCY RANGE | 47 ~ 63Hz | |||
EFFICIENCY (Typ.) | 81% | 87% | 89% | |
AC CURRENT (Typ.) | 8.5A/115VAC 4.5A/230VAC | 10.5A/115VAC 5.5A/230VAC | 11A/115VAC 5.5A/230VAC | |
INRUSH CURRENT (Typ.) | COLD START 50A | |||
LEAKAGE CURRENT | <1.1mA / 230VAC | |||
PROTECTION | OVERLOAD | 105 ~ 125% rated output power | ||
Protection type : Constant current limiting, recovers automatically after fault condition is removed | ||||
OVER VOLTAGE | 13.2 ~ 16.2V | 26.4 ~ 32.4V | 52.8 ~ 64.8V | |
Protection type : Shut down o/p voltage, re-power on to recover | ||||
OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |||
FUNCTION | AUXILIARY POWER | 5V @ 0.3A | ||
REMOTE ON-OFF CONTROL | By electrical signal or dry contact ON:short OFF:open | |||
REMOTE SENSE | Compensate voltage drop on the load wiring up to 0.5V | |||
OUTPUT VOLTAGE PROGRAMMABLE | Adjustment of output voltage is allowable to 90 ~ 110% of nominal output voltage. Please refer to the Function Manual. | |||
DC OK SIGNAL | The isolated TTL signal out, Please refer to the Installation Manual | |||
AC OK SIGNAL | The isolated TTL signal out, Please refer to the Installation Manual | |||
OVER TEMP WARNING | Logic " High" for over temperature warning, Please refer to the Installation Manual, isolated signal | |||
ENVIRONMENT | WORKING TEMP. | -20 ~ +60℃ (Refer to "Derating Curve") | ||
WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||
STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |||
TEMP. COEFFICIENT | ±0.02%/℃ (0 ~ 50℃) | |||
VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |||
SAFETY & EMC (Note 5) | SAFETY STANDARDS | UL62368-1, CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved | ||
WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.7KVDC | |||
ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||
EMC EMISSION | Parameter | Standard | Test Level / Note | |
Conducted | BS EN/EN55032 (CISPR32) | Class B | ||
Radiated | BS EN/EN55032 (CISPR32) | Class B | ||
Harmonic Current | BS EN/EN61000-3-2 | ----- | ||
Voltage Flicker | BS EN/EN61000-3-3 | ----- | ||
EMC IMMUNITY | BS EN/EN55024, BS EN/EN61000-6-2 | |||
Parameter | Standard | Test Level / Note | ||
ESD | BS EN/EN61000-4-2 | Level 3, 8KV air ; Level 2, 4KV contact | ||
Radiated | BS EN/EN61000-4-3 | Level 3 | ||
EFT / Burst | BS EN/EN61000-4-4 | Level 3 | ||
Surge | BS EN/EN61000-4-5 | Level 4, 4KV/Line-Earth ; Level 3, 2KV/Line-Line | ||
Conducted | BS EN/EN61000-4-6 | Level 3 | ||
Magnetic Field | BS EN/EN61000-4-8 | Level 4 | ||
Voltage Dips and Interruptions | BS EN/EN61000-4-11 | >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods | ||
OTHERS | MTBF | 840.8K hrs min. Telcordia SR-332 (Bellcore) ; 107.4K hrs min. MIL-HDBK-217F (25℃) | ||
DIMENSION | 295*127*41mm (L*W*H) | |||
PACKING | 1.93Kg; 6pcs/12.6Kg/1.04CUFT | |||
NOTE | 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. Derating may be needed under low input voltages. Please check the derating curve for more details. 5. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 720mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com) 6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft). ※ Product Liability Disclaimer：For detailed information, please refer to https://www.meanwell.com/serviceDisclaimer.aspx | |||
