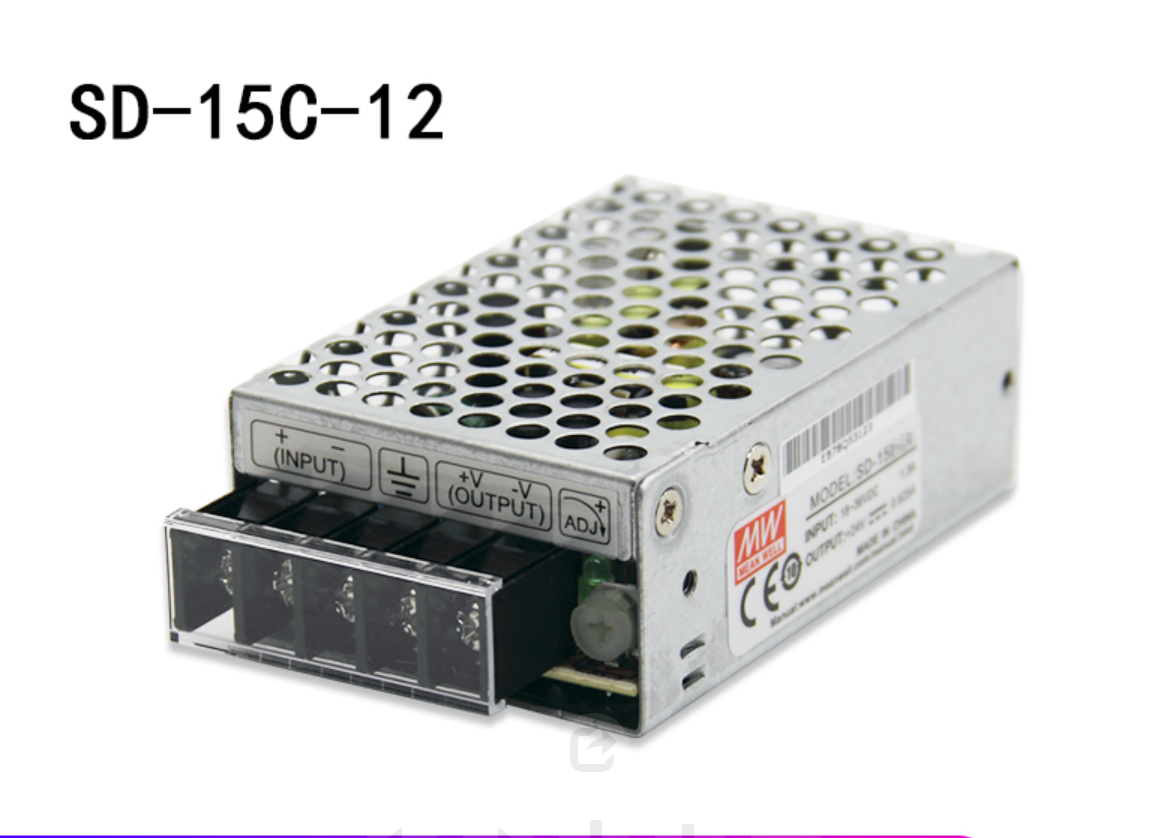

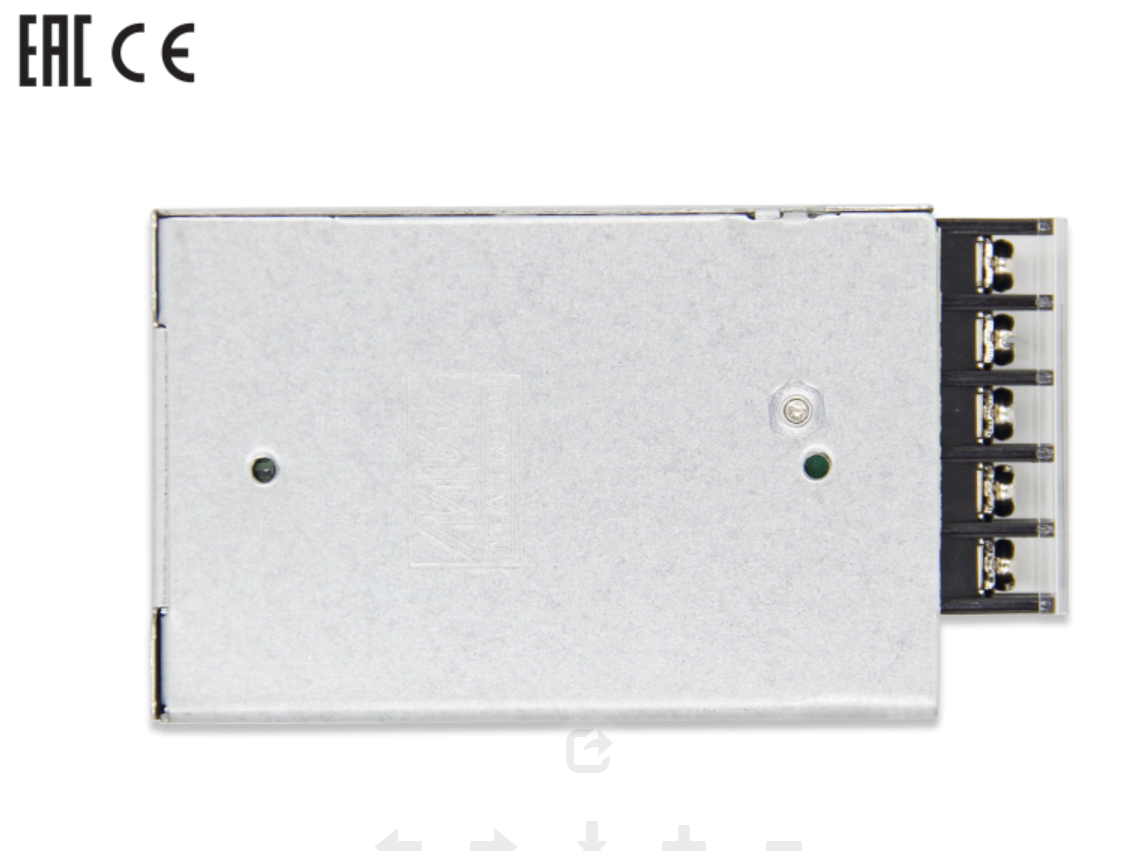

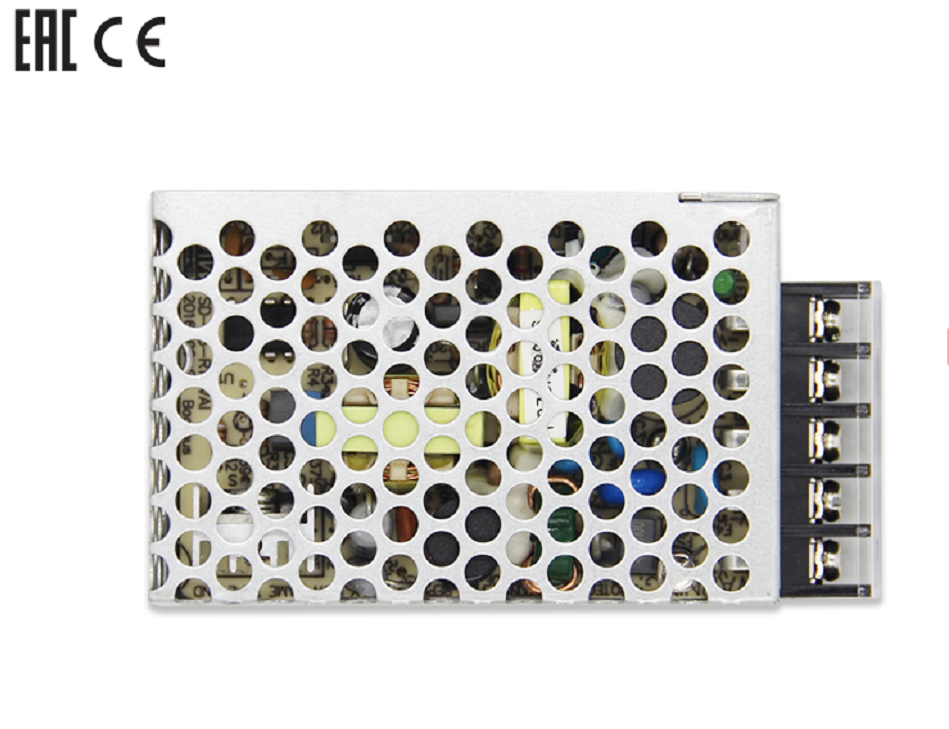

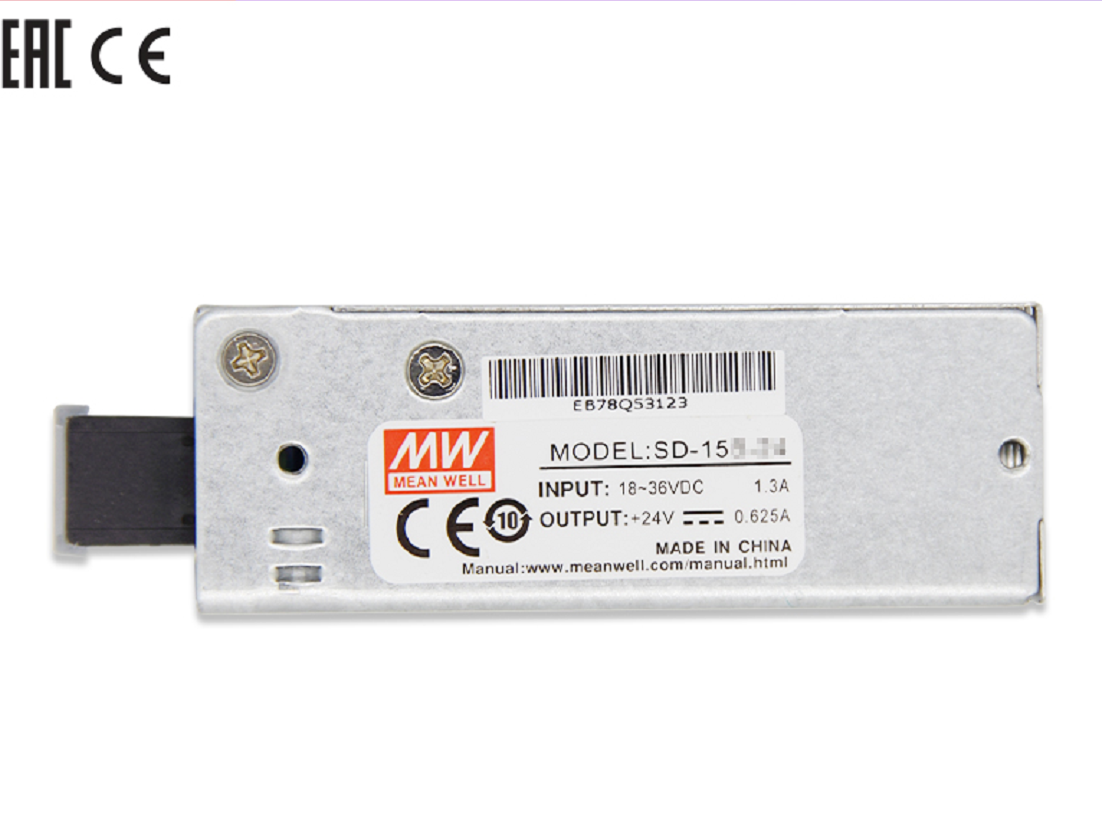

Mean Well Brand Switch Power Supply SD-15C-12 36-72V to 12V DC to DC Converter MW Module

OUTPUT

DC VOLTAGE

5V

12V

24V

RATED CURRENT

3A

1.25A

0.625A

CURRENT RANGE

0 ~ 3A

0 ~ 1.25A

0 ~ 0.625A

RATED POWER

15W

15W

15W

RIPPLE & NOISE (max.) Note.2

100mVp-p

120mVp-p

150mVp-p

VOLTAGE ADJ.RANGE

4.75~5.5VDC

10.8~13.2VDC

21.6~26.4VDC

VOLTAGE TOLERANCE Note.3

±2.0%

±1.0%

±1.0%

LINE REGULATION

±0.5%

±0.3%

±0.2%

LOAD REGULATION

±0.5%

±0.3%

±0.2%

SETUP, RISE ,HOLD UP TIME

2.5s, 25ms,--- 12VDC/24VDC/48VDC at full load

INPUT

VOLTAGE RANGE

A:  9.2 ~18VDC B:18 ~ 36VDC C:36~72VDC

EFFICIENCY(Typ.)

68%

76%

75%

72%

76%

79%

70%

77%

78%

DC CURRENT(Typ.)

1.9A/12VDC 0.9A/24VDC 0.45A/48VDC

PROTECTION

OVER LOAD

105 ~160% rated output power

Protection type : Hiccup mode, recovers automatically after fault condition is removed

OVER VOLTAGE

5.75 ~ 6.75V

13.8~ 16.2V

27.6 ~ 32.4V

Protection type : Shut off o/p voltage, clamping by zener diode

ENVIRONMENT

WORKING TEMP.

-10 ~ +60℃ (Refer to "Derating Curve")

WORKING HUMIDITY

20 ~ 90% RH non-condensing

STORAGE TEMP., HUMIDITY

-20 ~ +85℃, 10 ~ 95% RH

TEMP. COEFFICIENT

±0.03%/℃ (0 ~ 50℃)

VIBRATION

10 ~ 500Hz, 2G 10min./1cycle, 60min.each along X, Y, Z axes

SAFETY & EMC

(Note 4)

SAFETY STANDARDS

EAC TP TC 004 approved, design refer to AS/NZS 62368.1

WITHSTAND VOLTAGE

I/P-O/P:1.5KVAC I/P-FG:1KVAC O/P-FG:0.5KVAC

ISOLATION RESISTANCE

I/P-O/P,I/P-FG,O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH

EMC EMISSION

Compliance to BS EN/EN55032(CISPR32), EAC TP TC 020

EMC IMMUNITY

Compliance to BS EN/EN61000-4-2,3,4,6,8, BS EN/EN55024, light industry level, EAC TP TC 020

OTHERS

MTBF

3861.2K hrs min. Telcordia SR-332 (Bellcore) ; 644.2K hrs min. MIL-HDBK-217F (25℃)

DIMENSION

78*51*28mm (L*W*H)

PACKING

0.18Kg,60 PCS/11.8Kg
