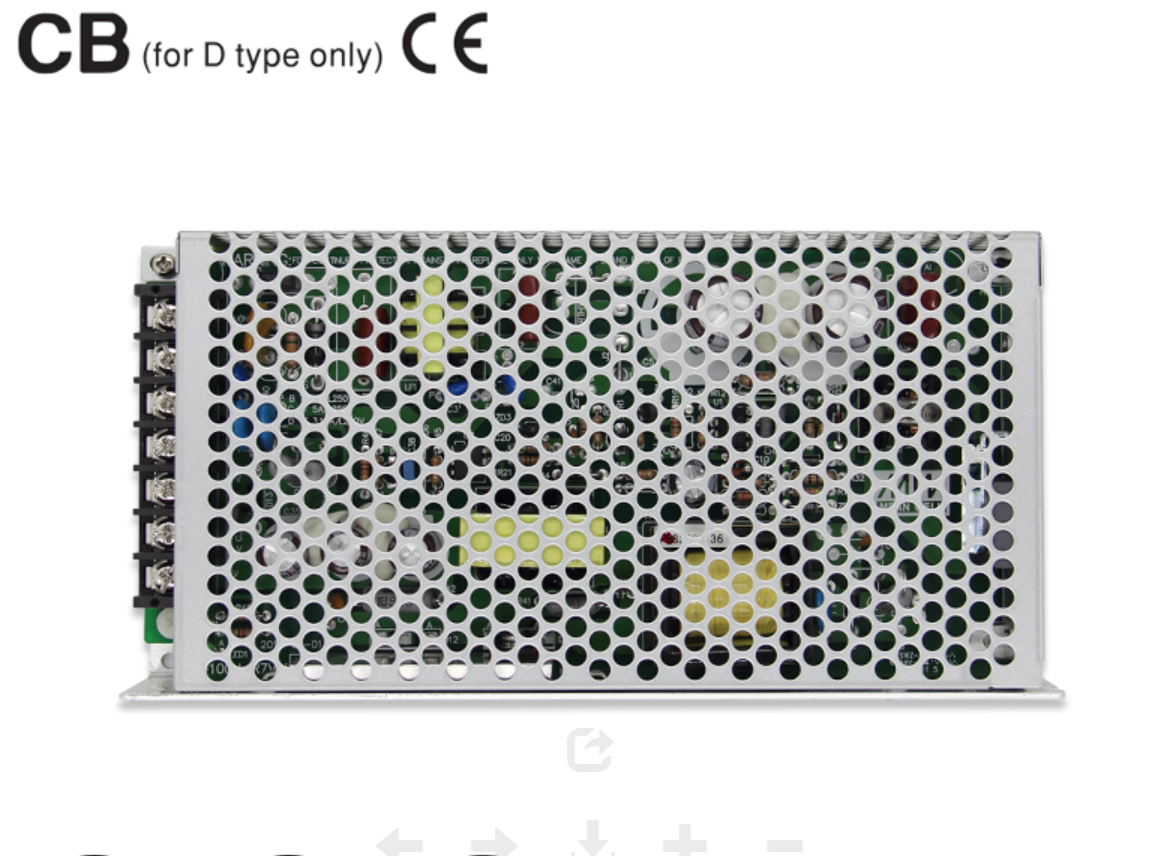

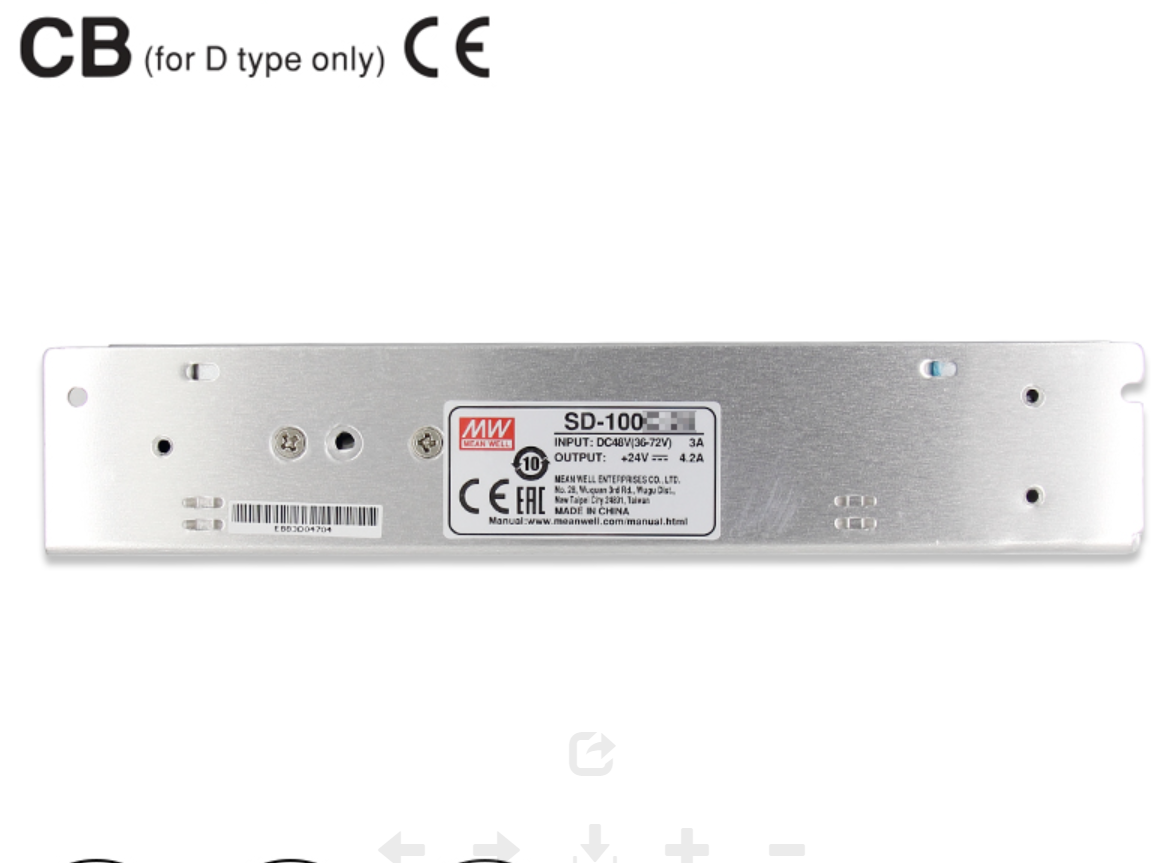

Mean Well Original Switch Power Supply SD-100C-12 DC Conversion Module 36-72VAC 12dc Module 100W

OUTPUT

DC VOLTAGE

5V

12V

24V

RATED CURRENT

18A

20A

8.5A

4.2A

CURRENT RANGE

0 ~ 18A

0 ~ 20A

0 ~ 8.5A

0 ~ 4.2A

RATED POWER

90W

100W

102W

100.8W

RIPPLE & NOISE (max.) Note.2

100mVp-p

120mVp-p

150mVp-p

VOLTAGE ADJ. RANGE

4.5 ~ 5.5VDC

11 ~ 16VDC

23 ~ 30VDC

VOLTAGE TOLERANCE Note.3

±2.0%

±1.0%

±1.0%

LINE REGULATION

±0.5%

±0.3%

±0.2%

LOAD REGULATION

±0.5%

±0.3%

±0.2%

SETUP, RISE TIME

2s, 50ms(only D mode) at full load

HOLD UP TIME (Typ.)

20ms(only D mode) at full load

INPUT

VOLTAGE RANGE

A:9.5 ~ 18VDC B:19 ~ 36VDC C:36 ~ 72VDC D:72 ~ 144VDC or 85 ~ 132VAC

EFFICIENCY (Typ.)

78%

74%

75%

76%

82%

75%

77%

80%

84%

78%

81%

83%

DC CURRENT (Typ.)

9.7A/12V

4.8A/24V

2.4A/48V

1.8A/96V

10.4A/12V

4.8A/24V

2.4A/48V

1.8A/96V

10A/12V

4.8A/24V

2.4A/48V

1.8A/96V

INRUSH CURRENT (Typ.)

D:18A/96VDC

LEAKAGE CURRENT

<0.75mA/120VAC(SD-100D)

PROTECTION

OVERLOAD

105 ~ 135% rated output power

Protection type : Hiccup mode, recovers automatically after fault condition is removed

OVER VOLTAGE

5.75 ~ 6.75V/10% load

16.8 ~ 20V/10% load

31.5 ~ 37.5V

5% load

31.5 ~ 37.5V/10% load

Protection type : Hiccup mode, recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.

-15 ~ +60℃(SD-100A), -10 ~ +60℃(SD-100B/C/D) (Refer to "Derating Curve")

WORKING HUMIDITY

20 ~ 90% RH non-condensing

STORAGE TEMP., HUMIDITY

-20 ~ +85℃, 10 ~ 95% RH non-condensing

TEMP. COEFFICIENT

±0.03%/℃ (0 ~ 50℃)

VIBRATION

10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC

(Note 4)

SAFETY STANDARDS

IEC/BS EN/EN 62368-1(for D type only), EAC TP TC 004 approved, design refer to AS/NZS 62368.1

WITHSTAND VOLTAGE

I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

ISOLATION RESISTANCE

I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH

EMC EMISSION

Compliance to BS EN/EN55032 (CISPR32) Class B, EAC TP TC 020

EMC IMMUNITY

Compliance to BS EN/EN61000-4-2,3,4,6,8, light industry level, EAC TP TC 020

OTHERS

MTBF

2600.2K hrs min. Telcordia SR-332 (Bellcore) ; 399.9K hrs min. MIL-HDBK-217F (25℃)

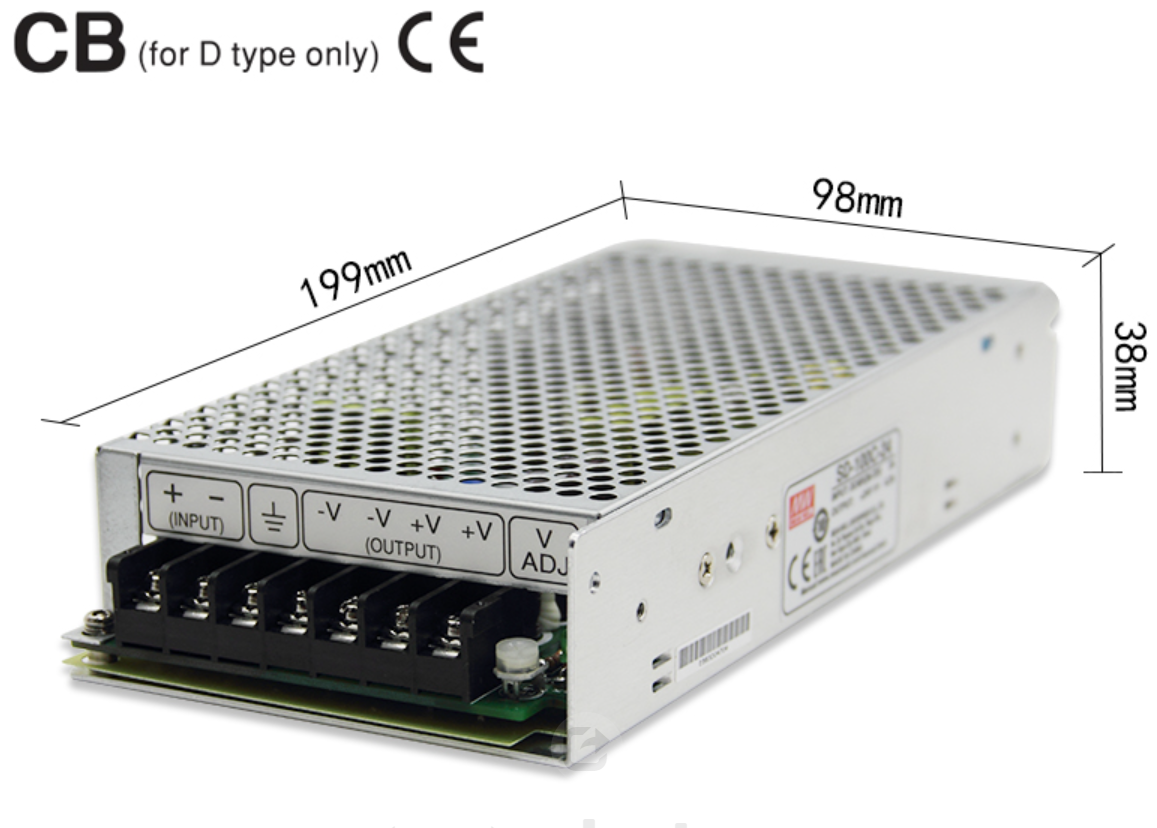

DIMENSION

199*98*38mm (L*W*H)

PACKING

0.65Kg; 20pcs/13.8Kg/0.85CUFT
