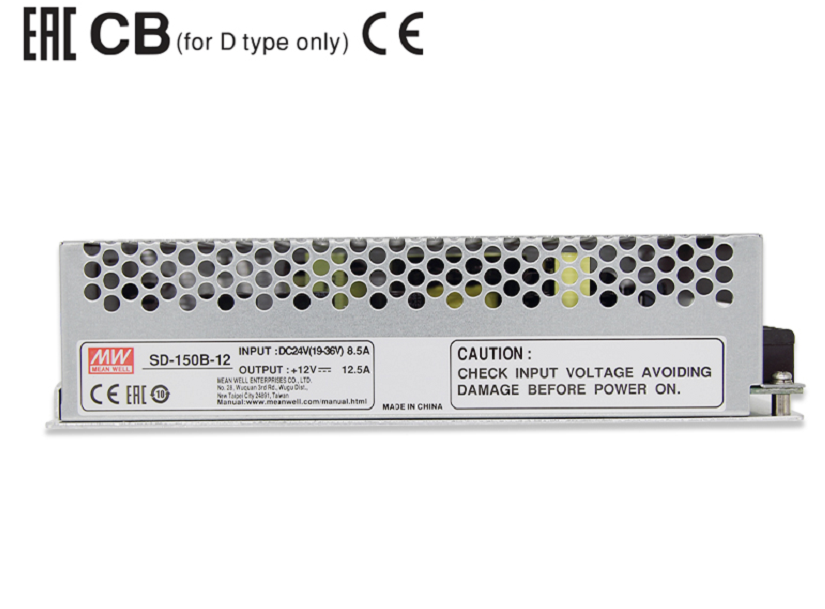

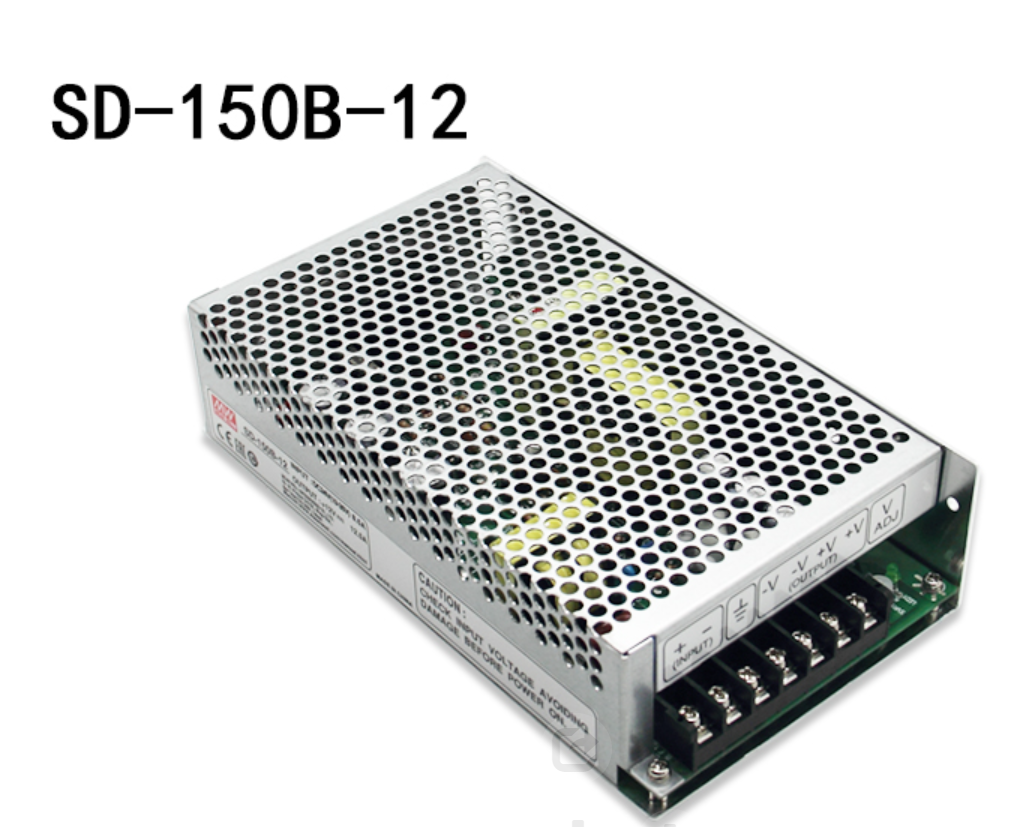

Mean Well Original SD-150B-12 Switch Power Supply 150W MW DC Converter 19-36V to 12V 12.5A

OUTPUT

DC VOLTAGE

12V

24V

RATED CURRENT

12.5A

6.3A

CURRENT RANGE

0 ~ 12.5A

0 ~ 6.3A

RATED POWER

150W

151.2W

RIPPLE & NOISE (max.) Note.2

120mVp-p

150mVp-p

VOLTAGE ADJ. RANGE

11 ~ 16VDC

23 ~ 30VDC

VOLTAGE TOLERANCE Note.3

±1.0%

±1.0%

LINE REGULATION

±0.5%

±0.3%

LOAD REGULATION

±0.5%

±0.3%

SETUP, RISE TIME

2s, 50ms(only D mode) at full load

HOLD UP TIME (Typ.)

24ms(only D mode) at full load

INPUT

VOLTAGE RANGE

B:19 ~ 36VDC C:36 ~ 72VDC D:72 ~144VDC or 85 ~ 132VAC

EFFICIENCY (Typ.)

75%

77%

79%

77%

80%

82%

DC CURRENT (Typ.)

8.5A/24V

4.2A/48V

2.1A/96V

8.5A/24V

4.2A/48V

2.1A/96V

INRUSH CURRENT (Typ.)

D:22.5A/96VDC

LEAKAGE CURRENT

<0.75mA / 120VAC (SD-150D)

PROTECTION

OVERLOAD

105 ~ 135% rated output power

Protection type : Hiccup mode, recovers automatically after fault condition is removed

OVER VOLTAGE

16.8V ~ 20V/10% LOAD

31.5 ~ 37.5V/10% LOAD

Protection type : Hiccup mode, recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.

-10 ~ +60℃ (Refer to output load derating curve)

WORKING HUMIDITY

20 ~ 90% RH non-condensing

STORAGE TEMP., HUMIDITY

-20 ~ +85℃, 10 ~ 95% RH

TEMP. COEFFICIENT

±0.03%/℃ (0 ~ 50℃)

VIBRATION

10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC

(Note 4)

SAFETY STANDARDS

IEC/BS EN/EN 62368-1(for D type only), EAC TP TC 004 approved, design refer to AS/NZS 62368.1

WITHSTAND VOLTAGE

I/P-O/P:1.5KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC

ISOLATION RESISTANCE

I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH

EMI CONDUCTION & RADIATION

Compliance to BS EN/EN55032 (CISPR32) Class B, EAC TP TC 020

EMS IMMUNITY

Compliance to BS EN/EN61000-4-2,3,4,6,8; BS EN/ENV50204, light industry level, EAC TP TC 020

OTHERS

MTBF

2897.06K hrs min. Telcordia SR-332 (Bellcore) ; 419.6K hrs min. MIL-HDBK-217F (25℃)

DIMENSION

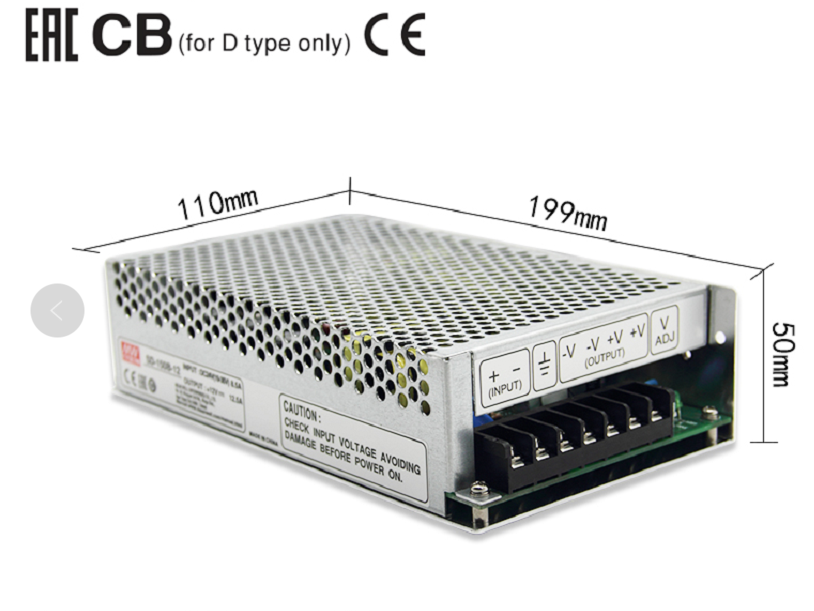

199*110*50mm (L*W*H)

PACKING

0.86Kg; 16pcs/14.5Kg/0.95CUFT
