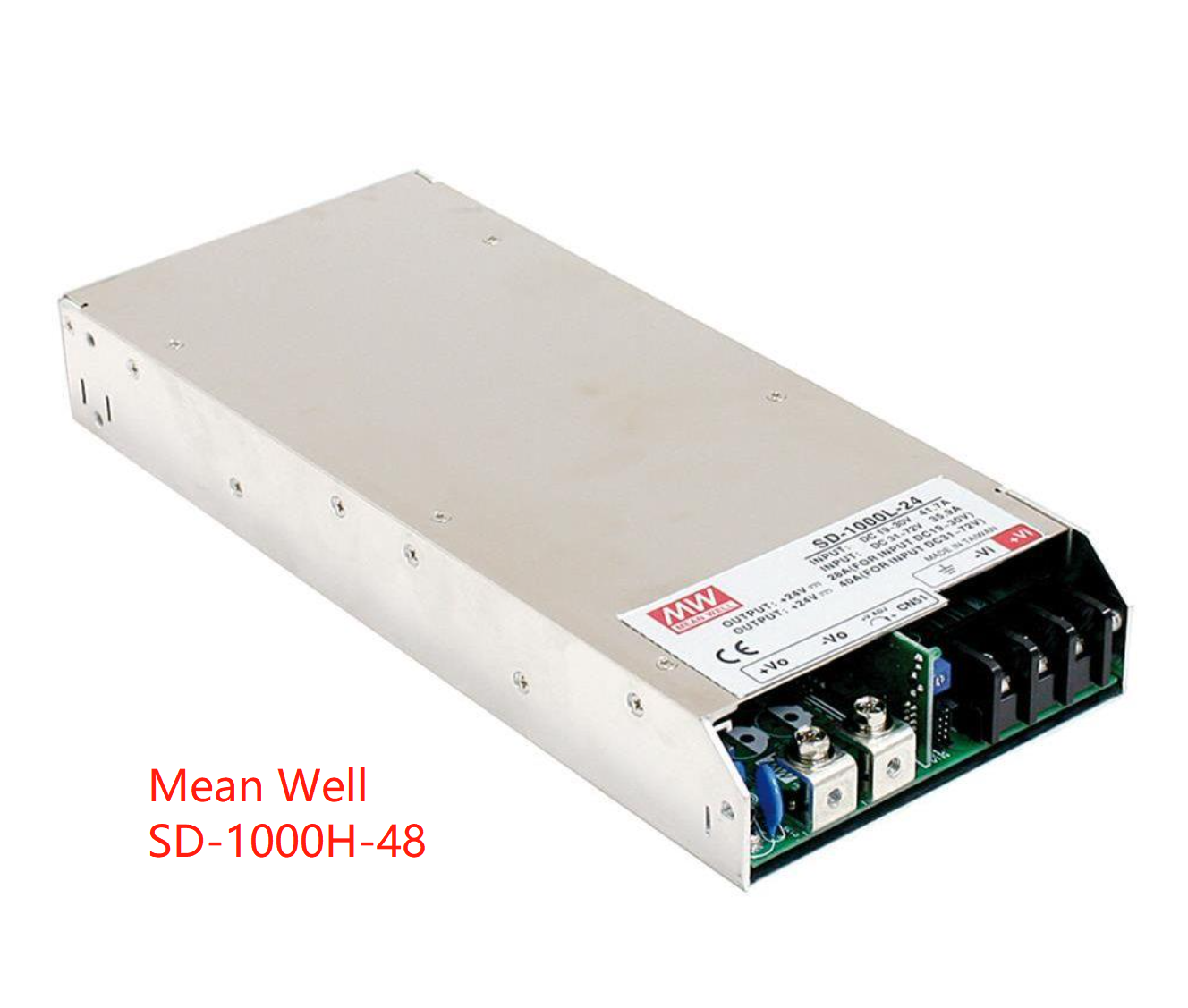

Original Mean Well Power Supply Module SD-1000H-48V 48Vdc 1000W Module
Features1U low profile 41mmHigh power density 10.7 W/inch2000Vac I/O isolationPr...
Features1U low profile 41mmHigh power density 10.7 W/inch2000Vac I/O isolationPr...
1U low profile 41mm
High power density 10.7 W/inch
2000Vac I/O isolation
Protections
Output Ok signal
Built in remot ON-OFF control
Built in remote sense function
Forced air cooling
12V 0.25A auxiliary output
3 years warranty
MODEL | SD-1000L-12 | SD-1000L-24 | SD-1000L-48 | SD-1000H-12 | SD-1000H-24 | SD-1000H-48 | |
OUTPUT | DC VOLTAGE | 12V | 24V | 48V | 12V | 24V | 48V |
RATED CURRENT | 60A | 40A | 21A | 60A | 40A | 21A | |
CURRENT RANGE | 0 ~ 60A | 0 ~ 40A | 0 ~ 21A | 0 ~ 60A | 0 ~ 40A | 0 ~ 21A | |
RATED POWER | 720W | 960W | 1008W | 720W | 960W | 1008W | |
RIPPLE & NOISE (max.) Note.2 | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | |
VOLTAGE ADJ. RANGE | 11 ~ 15V | 23 ~ 30V | 46 ~ 60V | 11 ~ 15V | 23 ~ 30V | 46 ~ 60V | |
VOLTAGE TOLERANCE Note.3 | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
LOAD REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
SETUP, RISE TIME | 500ms, 50ms at full load | ||||||
INPUT | VOLTAGE RANGE Note.5 | 19 ~ 72VDC | 72 ~ 144VDC | ||||
EFFICIENCY (Typ.) | 84% | 88% | 90% | 85% | 89% | 92% | |
DC CURRENT (Typ.) | 23.5A/48VDC | 11.6A/96VDC | |||||
INRUSH CURRENT (Typ.) | ----- | 100A/96VDC | |||||
PROTECTION | OVERLOAD | 105 ~ 125% rated output power | |||||
Protection type : Constant current limiting, unit will shut down o/p voltage after about 5sec. Re-power on to recover | |||||||
OVER VOLTAGE | 16 ~ 19V | 30.8 ~ 35.2V | 62 ~ 68V | 16 ~ 19V | 30.8 ~ 35.2V | 62 ~ 68V | |
Protection type : Shut down o/p voltage, re-power on to recover | |||||||
OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | ||||||
FUNCTION | REMOTE ON/OFF CONTROL | Please refer to function manual | |||||
OUTPUT OK SIGNAL | Open collector signal low when PSU turns on, maximum, sink current :10mA | ||||||
ENVIRONMENT | WORKING TEMP. | -20 ~ +60℃ (Refer to "Derating Curve") | |||||
WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||||
STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | ||||||
TEMP. COEFFICIENT | ±0.02%/℃ (0 ~ 50℃) | ||||||
VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | ||||||
SAFETY & EMC (Note 4) | SAFETY STANDARDS | IEC62368-1 CB approved by TUV, TUV BS EN/EN62368-1, AS/NZS62368.1, EAC TP TC 004 approved | |||||
WITHSTAND VOLTAGE | I/P-O/P:2KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||||||
ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||
EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32), EAC TP TC 020 | ||||||
EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,6,8, light industry level, EAC TP TC 020 | ||||||
OTHERS | MTBF | 898.2K hrs min. Telcordia SR-332 (Bellcore) ; 106.7K hrs min. MIL-HDBK-217F (25℃) | |||||
DIMENSION | 295*127*41mm (L*W*H) | ||||||
PACKING | 1.94Kg; 6pcs/12.6Kg/1.15CUFT | ||||||
