CE+T Monitoring - T1S/ T2S/ Candis display T302003000 Beyond The Inverter

A display always shows two values. They can be differsent or the same (see the s...

Brand:CE+T
Product name:Candis displaty
Part No.:T302003000
Origin:China
Price:Inquiry

A display always shows two values. They can be differsent or the same (see the second green rectangle) By default the selected parameters are different, but can be modified by the user.

The selected line is identified by an underscore under the first letter (i.e Vout = 230V).Display’s User Interface and Configuration Display (2 lines provided to display information).

Up button to scroll UP in the menus.

Down button to scroll DOWN in the menus.

Enter button to change display or validate modifications.


Specification


CS141

CS121

Feature

Customer advantage

Feature

Restrictions





Processor ARM Cortex A8 800 MHz

   Higher performance in

comparison to CS121 (app. 10 times faster)

•    The CS141 uses open Source for future development

   Future-proof platform





32-Bit RISC-Processor



   No compatible source code available

   Limited development



Flash memory 512MB

   Bigger capacity, over 4500 log file entries

   Can be used as BACS Webmanager

Max. memory size

64MB (for BACSKIT_B/ BSC/BII)



   Logfiles about 12-16h

DIP switches on the front plate

   No remove from slot necessary if change required

DIP switches on motherboard

   Remove from slot necessary to change settings of the DIP switch



Different users

   Different authorization

   Only administrative users can change network settings



Only one user

•    Only one user with adminrights

Leaner menu structure

   Easier configuration

   Easier event handling

   Faster and easier to use



Classic menu

•    Restricted event configuration



Firmware Update via “Drag & Drop”

   Easier handling

   Firmware update possible with   every browser independent from OS



Firmware Update via Flash Wizard

•    Windows is necessary for firmware update

   FTP must be active (in newer   network structures this is often complicated)



BACS



   Integrated



BACS

   Not available for CS121SC/L

•    A BACS Webmanager has to be used

Changed settings are taken over

immediately

   No save, exit & reboot required

•    Simplified operation

   Massive time saving

Save, Exit and Reboot required

   Changing configuration and saving needs about 5 -10    minutes everytime

Auto log out +

advanced security settings



   Higher security due HTTPS and SSH



No auto log out, no SSH, limited https

•    Security is restricted

•    The CS121 fails many security tests because of using old

interfaces



Rescue Boot Mode

   Second OS for backup completely usable



No rescue system

   Reparing is possible only with Flash wizard

•    Complete loss of configuration

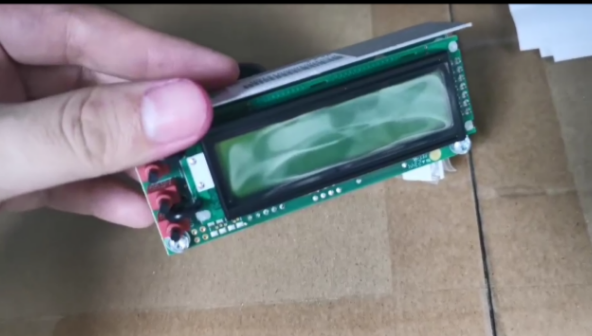

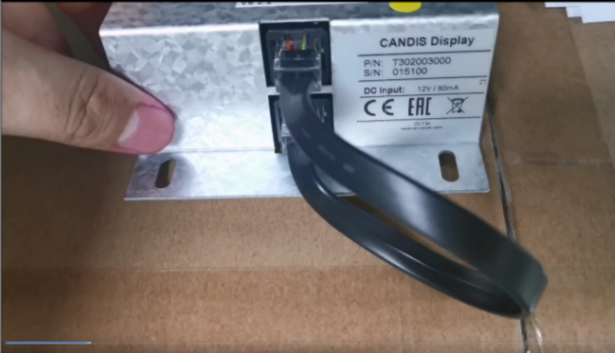

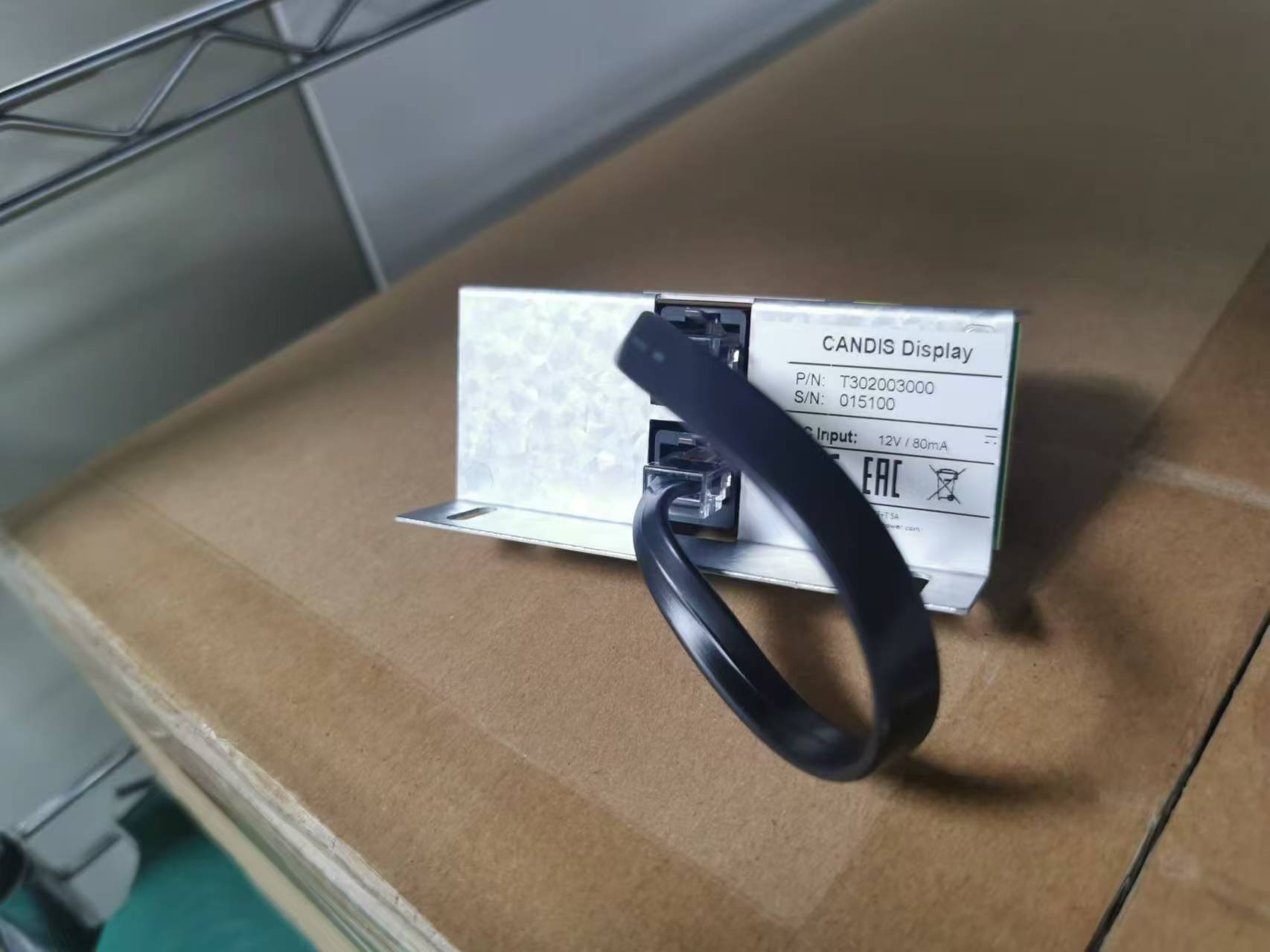

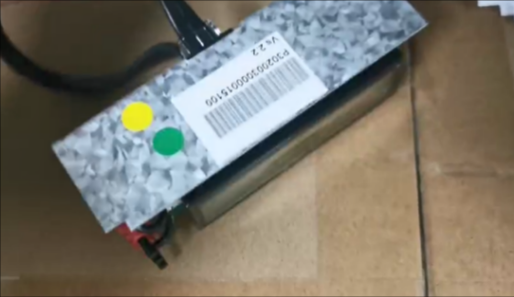

Product Display
