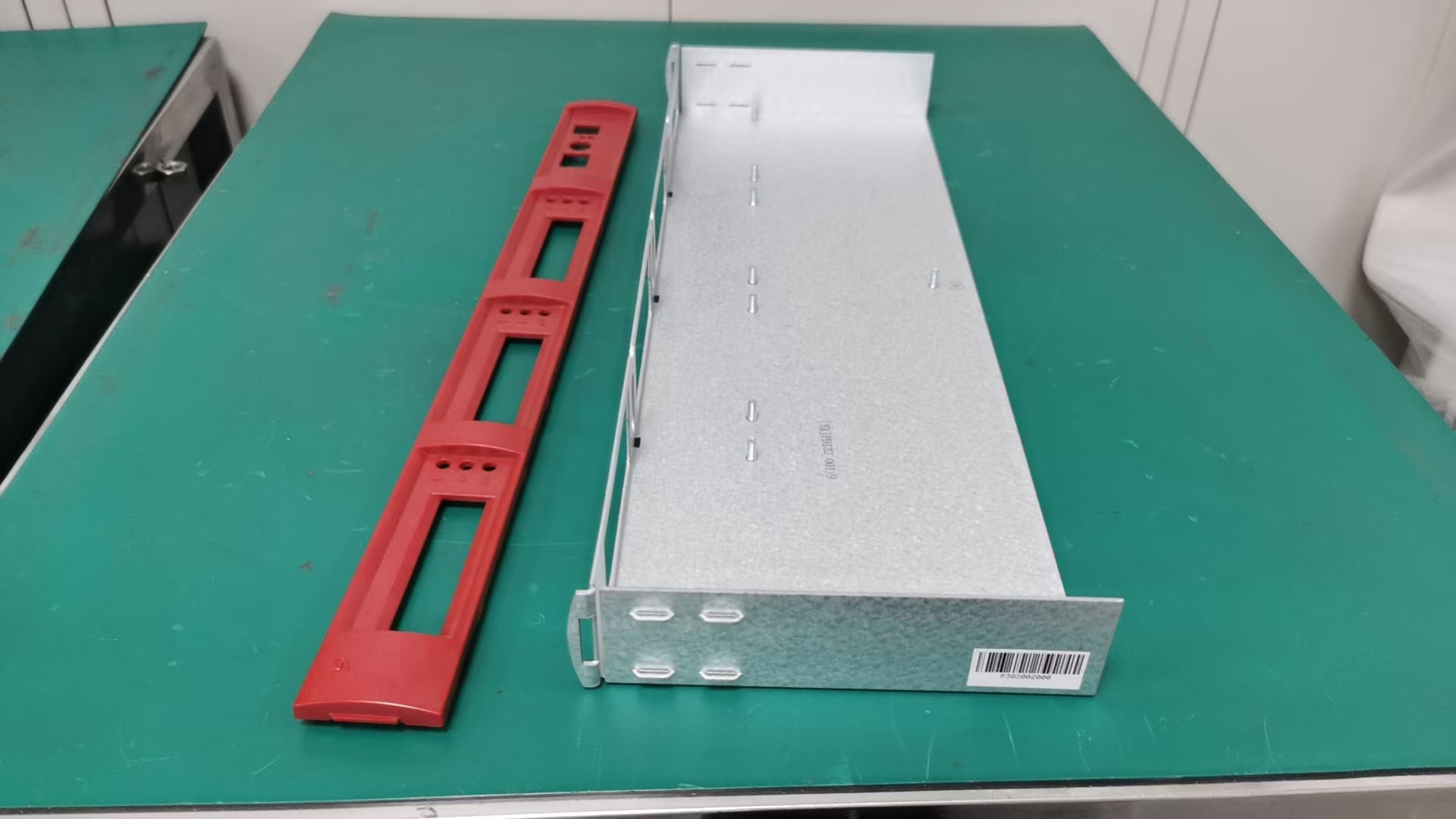

CE+T Power CanDis Shelf T302002000 As New Condition Height 1U For 19 Inch Cabinet

TSI Bravo – 60/230 is a compact modular inverter that converts 60 Vdc power source into 230 Vac and provides a pure sine wave. By using at least three modules, we can offer solutions for three-phase infrastructures (3x400Vac + N). The extra AC input ensures a high overall efficiency (up to 96%) which results in a reduction of energy loss and heat dissipation.

This module has a modularity from 2.5 kVA to up to 80 kVA in order to be able to evolve with your needs. The hot swap feature makes maintenance easier and reduces the risk of errors.

The low ripple voltage avoids any disturbances on DC loads and batteries. APPLICATIONS All business critical applications and all types of AC loads. The design is modular and scalable with hot- swappable inverter modules which ensures low Mean Time to Repair (MTTR), reduction in service costs and meets the changing needs for future expansion. MAIN FEATURES lDual input sources (AC & DC) lwith wide AC input range 150 Vac to 265 Vac lCompact design lHigh efficiency lTransfer time reduced to 0 lup to 10kVA in 2 U lup to 225kVA in 3 enclosures of 75kVA each

Specification

Model Number	T302002000
Safety	EN62040-1
Cooling / Isolation	Forced / Doubled
Efficiency	> 95.5% / > 89.5%
Dielectric strength DC/AC	4300 Vdc
AC OUTPUT POWER	1500 / 1200
DC INPUT SPECIFICATIONS
Nominal voltage (DC)	24 V
Voltage range (DC)	19 – 35 V
current	56 A
