CE+T TSI T2S ETH 2U 24V/48V Monitoring Unit – Inverters Bravo Power Controller P/N: T322010100

T2S ETH Monitoring Unit

Description

System monitoring solution for inverter systems

Monitoring data from system level to module level

Front ethernet connection for user interface

Highly configurable alarms, digital inputs and relays mapping

Support multiple protocols like Modbus and SNMP to be integrated in BMS.

Extended memory for log file

Easy to update through user interface

File download/upload through user interface

Basic and Expert user level access

Web based user interface with remote access

Compatible with : TSI Nova, Media, Bravo & ECI Bravo modular inverters

Features

Supported Protocols

„ Modbus RTU (read only)

„ SNMP (read only)

Logs

„ Event log up to 2000 events

Environmental

„ Temperature :

„ Ambient : -20°C to 50°C

„ Storage : -40°C to 70°C

„ Humidity: 95% non condensing

System Features

T2S ETH

„ 3 output relays (Major, Minor and one user programmable)

„ 2 digital inputs

„ ETH connection

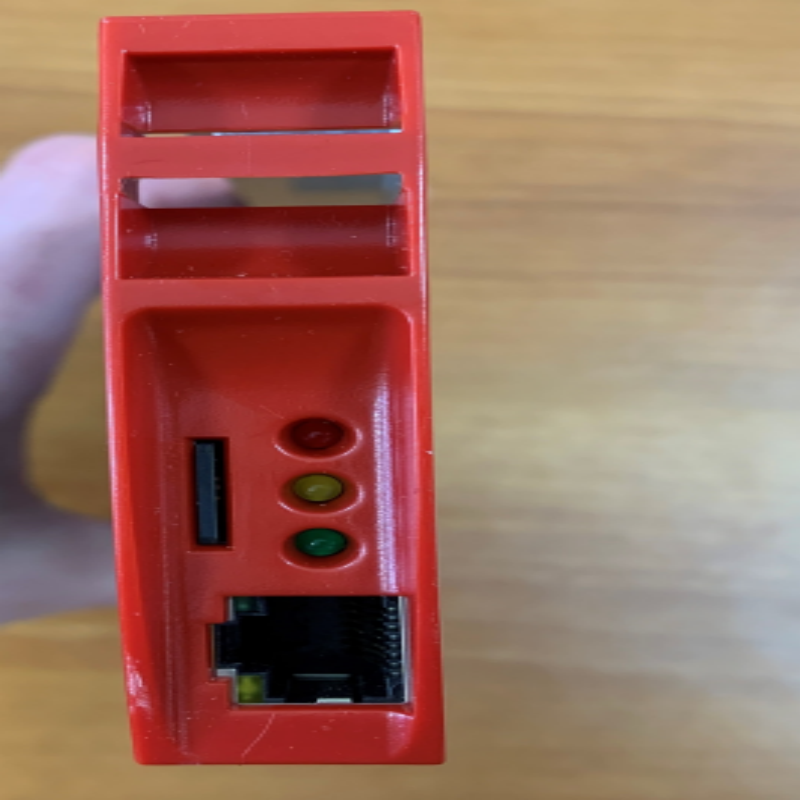

„ 3 status LED (Red - Major, Orange - Minor, Green - OK)

„ CET Module bus

„ Rack mounting

„ 12 V power supply from shelf

„ RS485 for Modbus

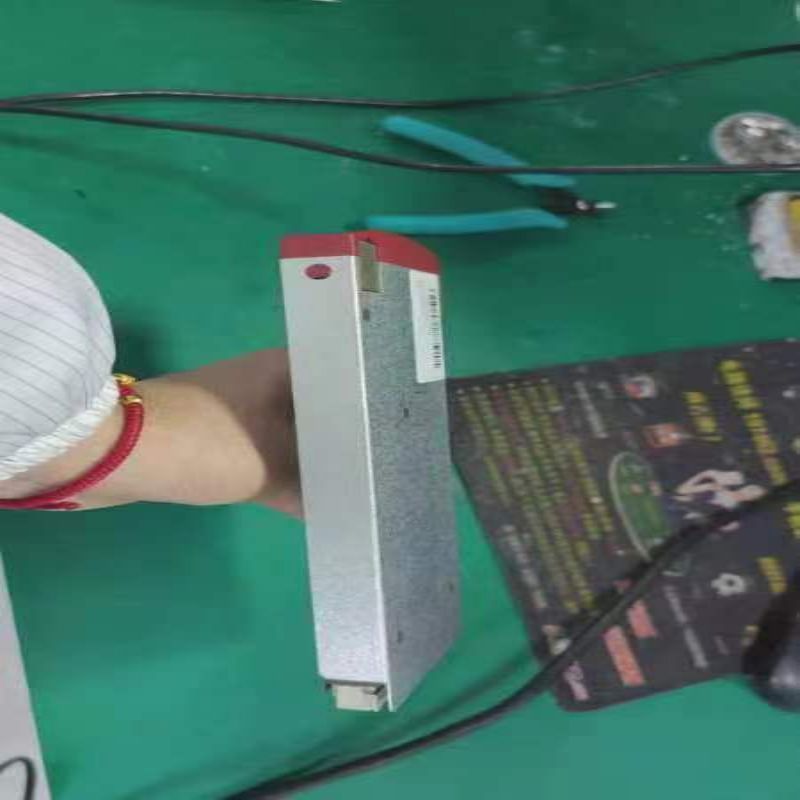

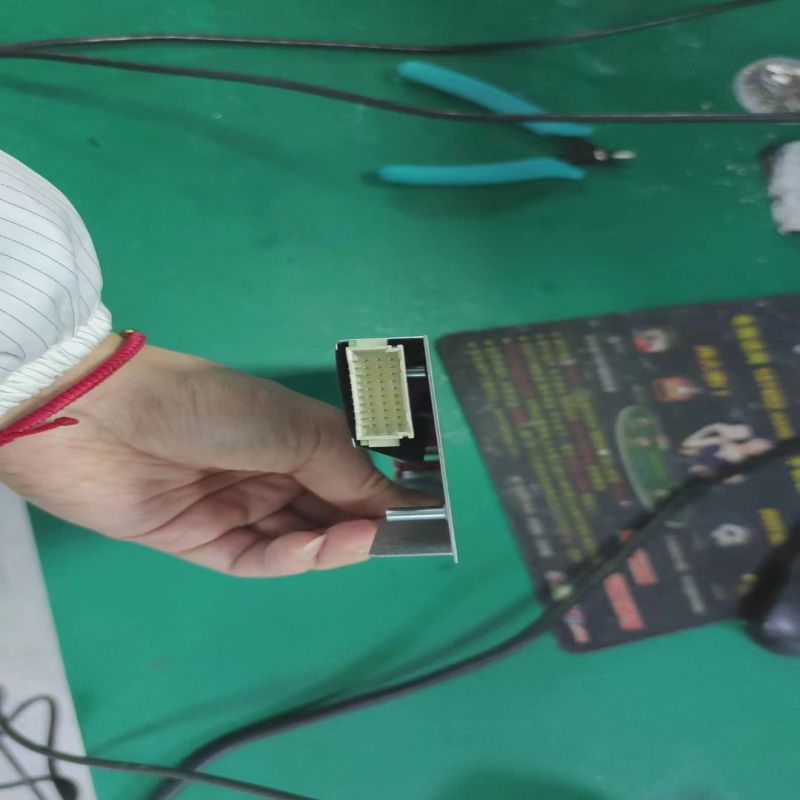

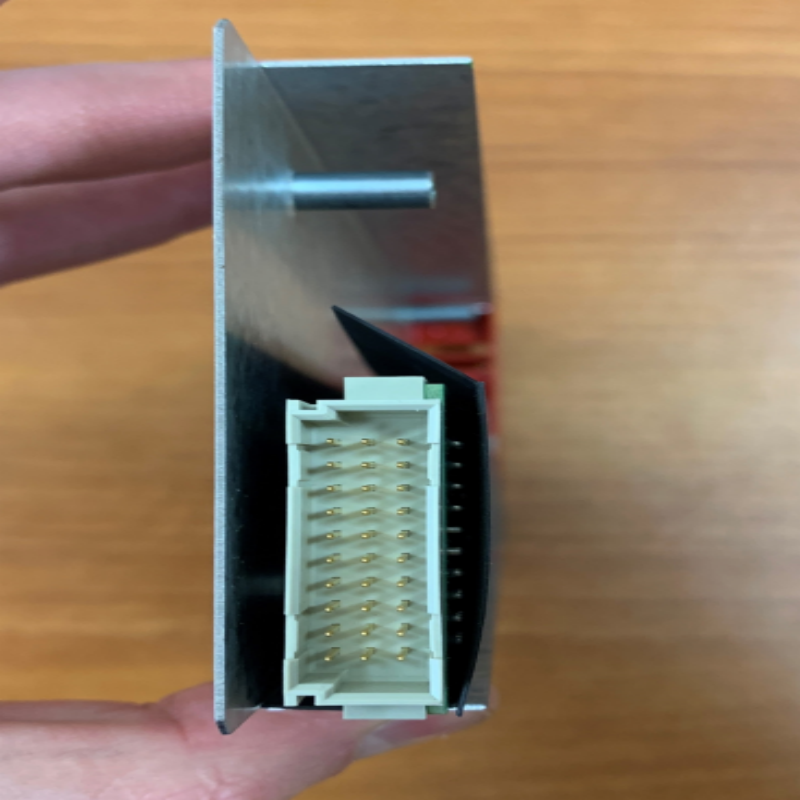

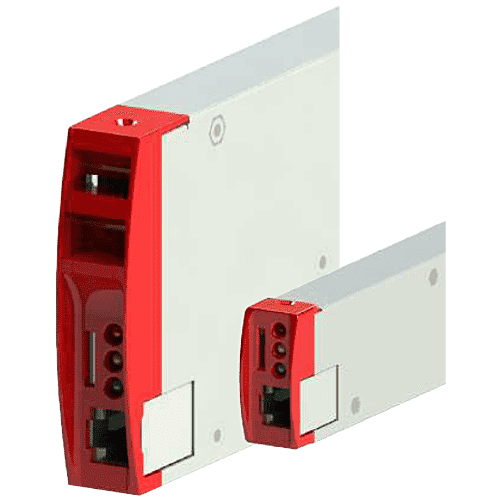

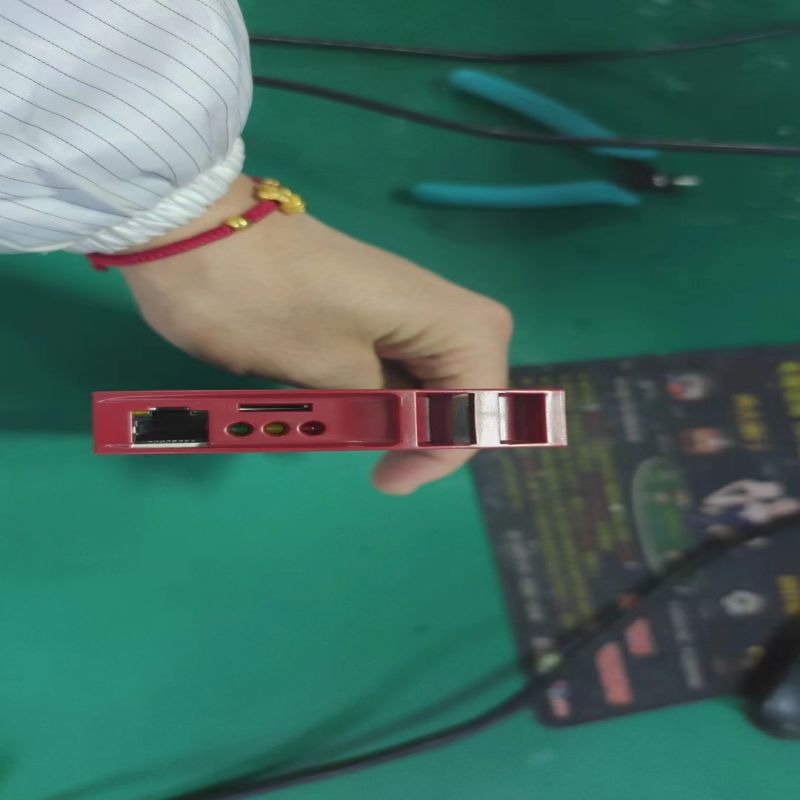

Product Display
