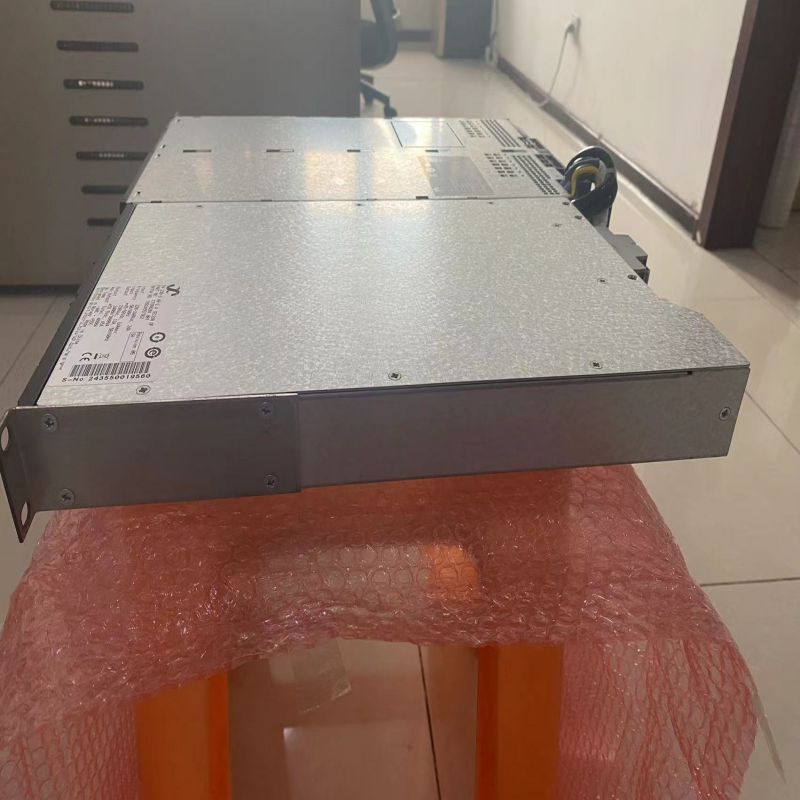

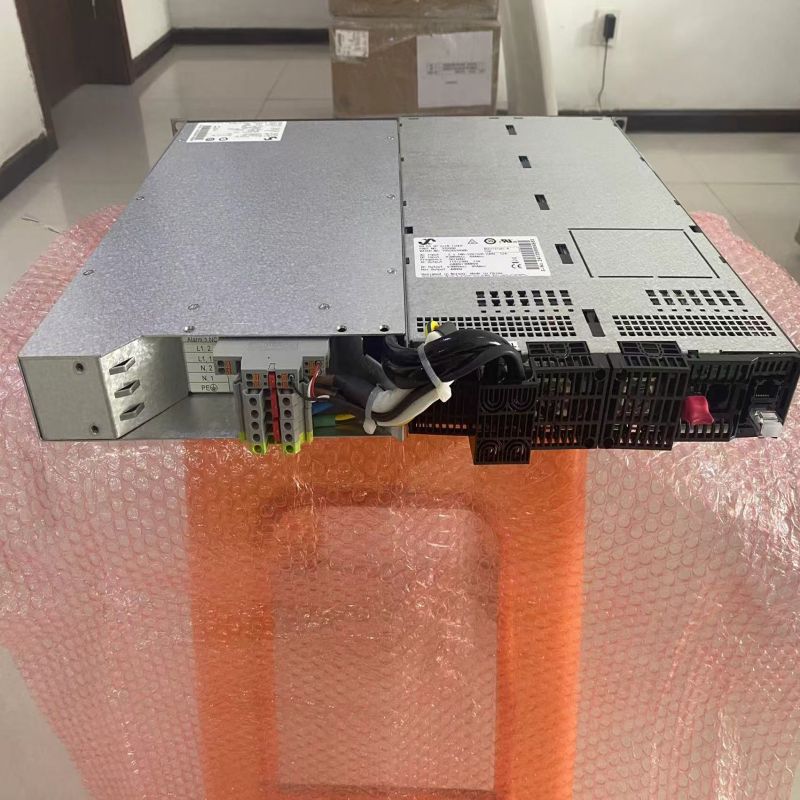

Eltek Rectiverter Integration Standalone System 48 Vdc 3 kVA 1ph CTOR0201.001

The Rectiverter integration/standalone system can be used in applications where a 230/115 VAC backup is needed in parallel with the 48 VDC backup.

The system can be integrated into an Eltek DC system and connected to the same controller as the 48 VDC system

It can also be used as a standalone system connected to any available 48 VDC source.

The total output power for both AC and DC output is limited to max 4 kW.

AC and DC output limits can be set according to the attached load, where the limitation for AC load is set to max 3 kVA.

Applications

TELECOM-MOBILE/WIRELESS

LTE/4G/WiMAX

Distributed antenna system

Broadband

Radio base stations/cell sites

RAILWAY & METRO INFRASTRUCTURE

Control & protection

Signaling

GSM-R

Safety Systems

POWER UTILITIES

Control & protection

SCADA system

MODEL	4 KW / 2 KW
Product family	CTOR0201.00X
INPUT DATA
Voltage range AC	185-275 / 95-140 V
Voltage range DC	40-58 V
Maximum current AC	14-24 A
Frequency	47-53 / 57-63 Hz
Power factor	> 0.99
OUTPUT DATA
Adjustable range AC	200-240 / 100-127 V
Adjustable range DC	43-58 V
Max output power AC	3,0 / 1,5 kVA
Max output power DC	2,4 / 1,2 kW
Admissible load power factor	0 Ind. To 0 Cap.
Frequency	50Hz, 60 Hz
OTHER SPECIFICATIONS

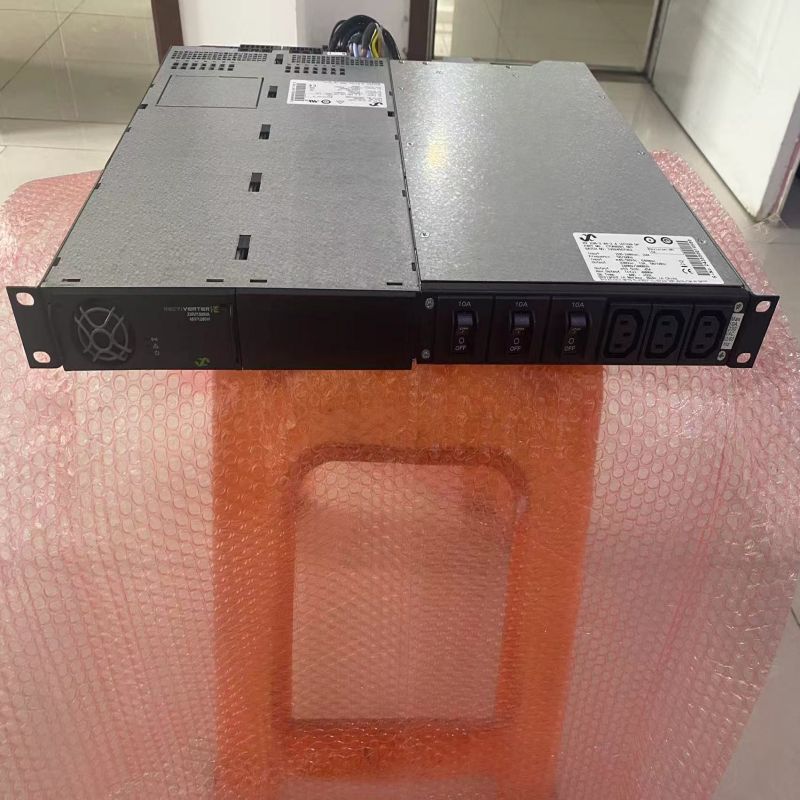

2 pole AC distribution	3*10 A
3*IEC sockets (IEC320-C13)	front connection
