CE+T Inverter Module Bravo 10 48Vdc 120Vac 1000VA Part No. T611330201 T614330000
DescriptionBravo 10 is a small modular inverter offering many opportunities to d...
DescriptionBravo 10 is a small modular inverter offering many opportunities to d...

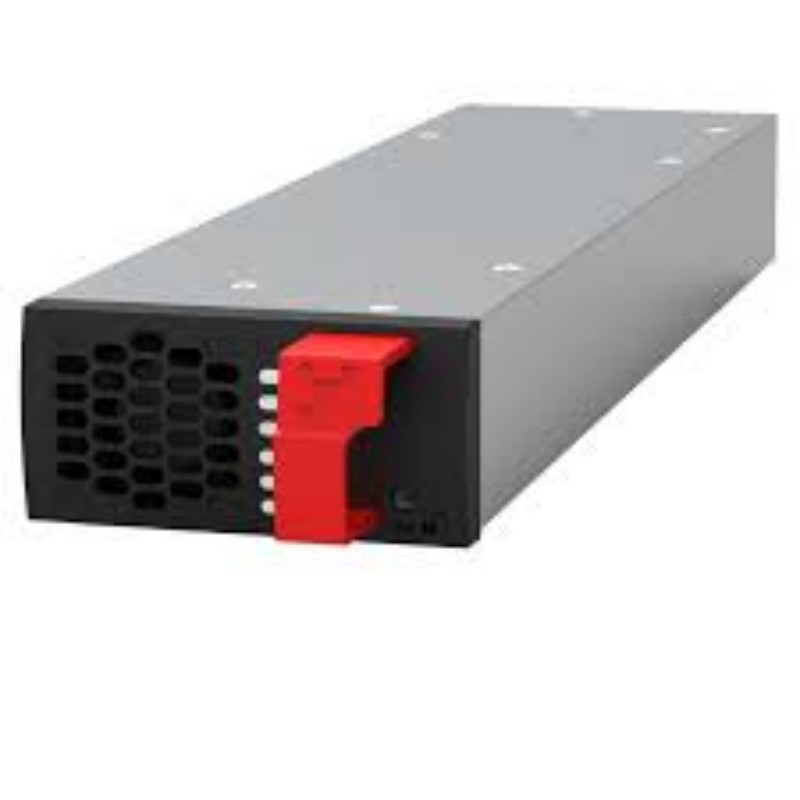

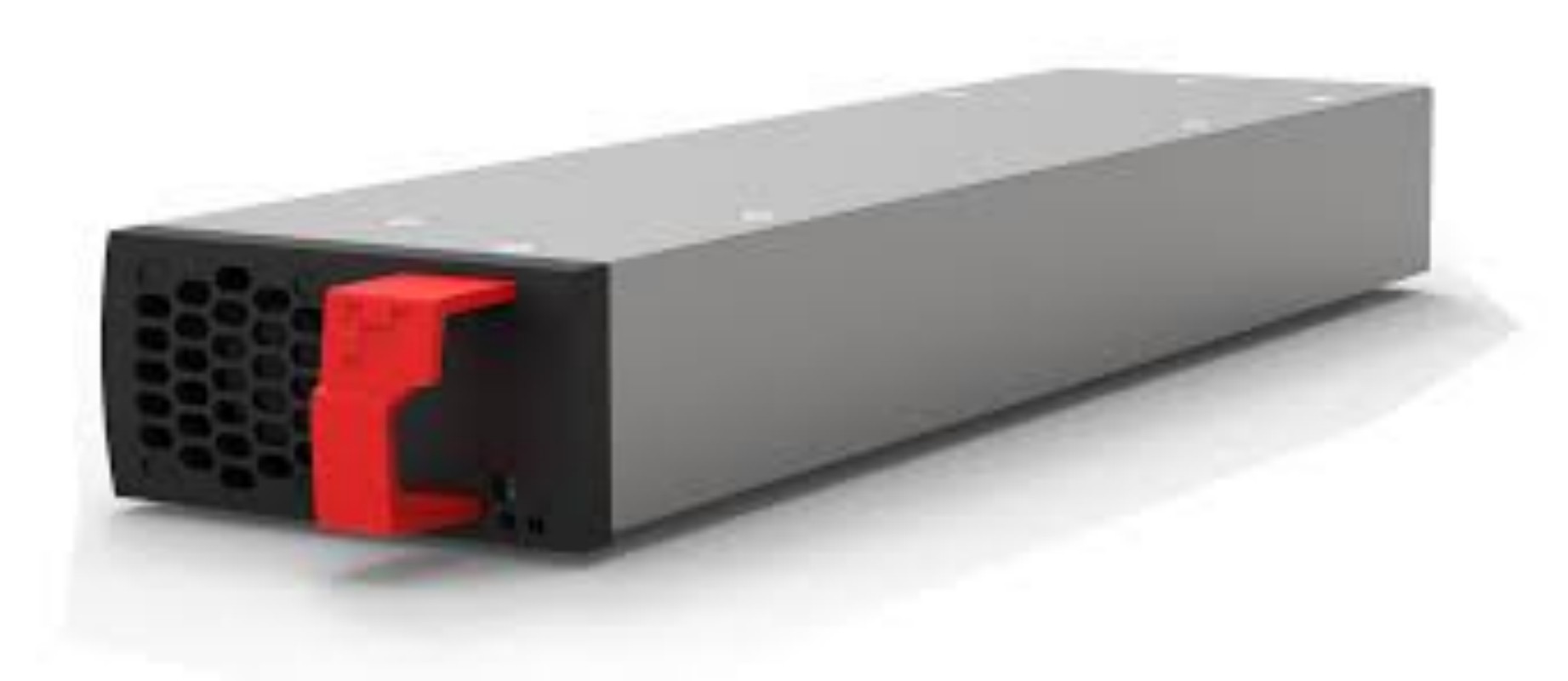

Bravo 10 is a small modular inverter offering many opportunities to design a solution that perfectly fits your needs. The ECI technology offers both AC and DC inputs to provide a perfect AC power while reducing the number of power conversion (the module operates under normal condition with the AC input delivering a 94% efficiency)! In conjunction with the DC input, it provides an excellent AC backup solution.
From 1 to 32 modules, with several options available (manual external by-pass and AC distribution), the Bravo 10 modular inverter is also hot-swappable meaning a very easy and cheap maintenance. The modules are delivered with our new monitoring solution.

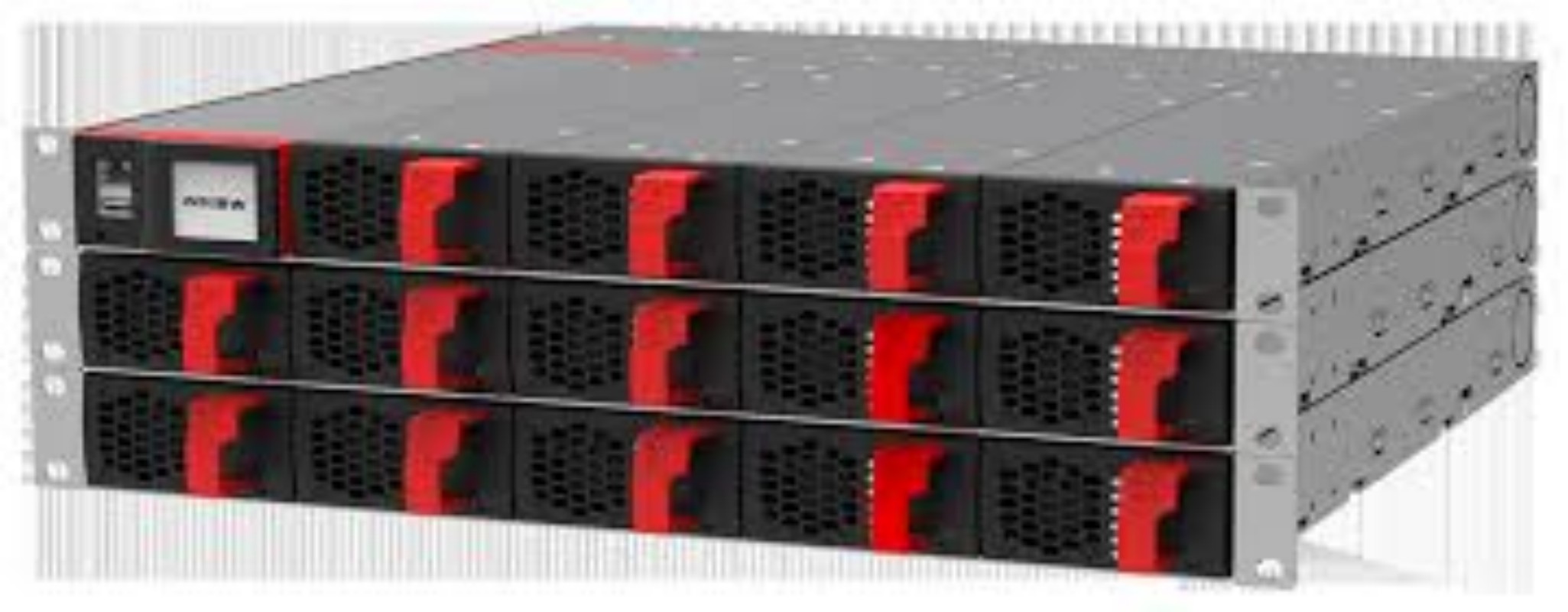

Bravo 10 can be used with the Inview S (DIN or panel mounting) and Inview S Slot monitoring. One shelf can accommodate 5 modules (5 kVA) or 4 modules (4 kVA) with Inview S Slot monitoring included. For third party application the Inview GW Rack or DIN mount could be used.
An ideal solution for securing small but critical AC loads, from 1 kVA to 32 kVA, such as telecom small cells (4G and 5G), access control, traffic lights, security, etc. The module can be integrated into shelves for single-phase (120 Vac) or split-phase (120/240 Vac), and three-phase (3x208 Vac) configuration can be achieved within two shelves.
Part Number: Module / Shelf | T611330201 / T614330000 |
Dielectric strength DC/AC | 4300 Vdc |
Operating T° / Relative Humidity (RH) non-condensing | Tested according ETS300-019-2-3 Class 3.1 -20°C to 65°C, power de-rating from >50°C to 65°C / Max RH 95% for 96 hours per year |
Storage T° / Relative Humidity (RH) non-condensing | Tested according ETS300-019-2-1 Class 1.2 -40°C to 70°C / Max RH 95% for 96 hours per year |
AC Input Data | |
Nominal voltage (AC) / Current | 120 Vac / 7.2 A |
Brownout | < 108 Vac linear decreasing |
Power factor / THD | > 99% / < 3% |
DC Input Data | |
DC voltage: Nominal / range | 48 Vdc / (40-60V) |
Nominal current (at 48 Vdc and 800 W output) | 18.5 A |
AC Output Data | |
Efficiency AC to AC (EPC) / DC to AC | 95% / >92% |
Nominal voltage AC (Adjustable) | 120 V (100 - 130 Vac) |
Frequency / frequency accuracy | 60 or 50 Hz / 0.03% |
Nominal Output power (VA) / (W) | 1000 VA / 800 W |
Nominal current | 8.3 A @ 120 Vac |
Display | Synoptic LED |
