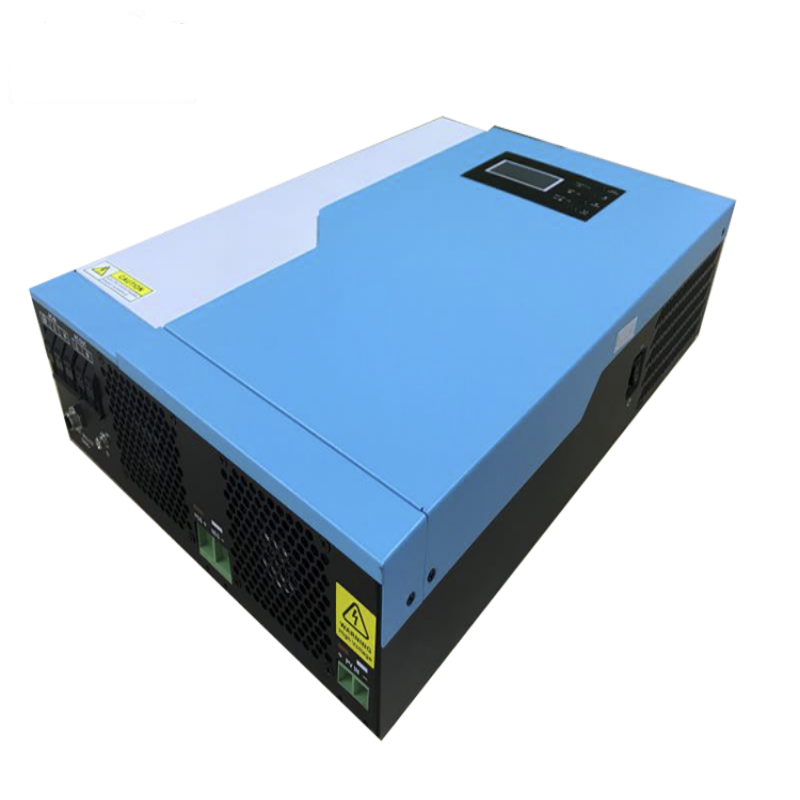

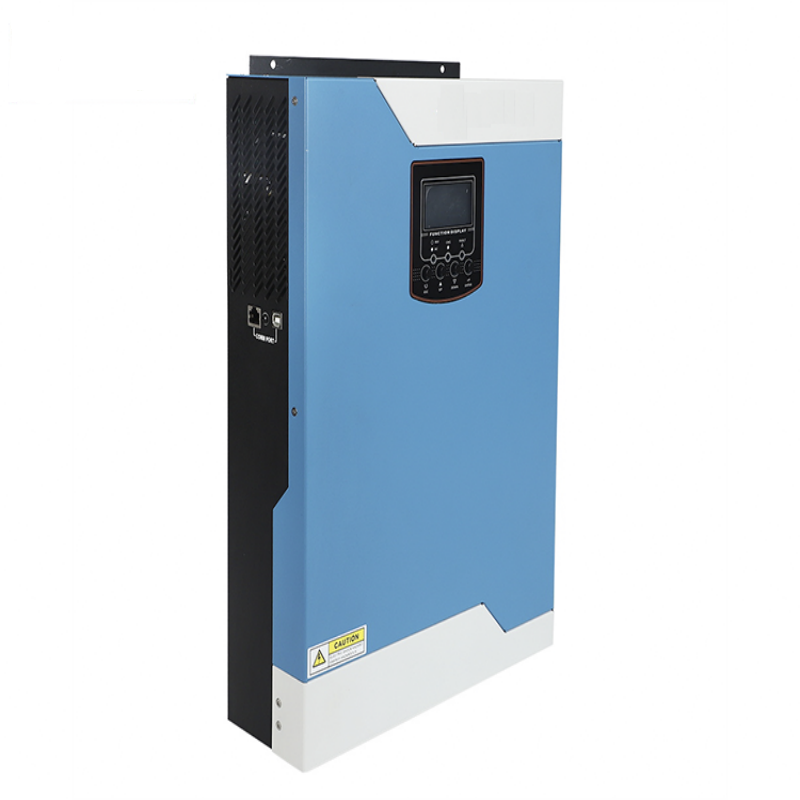

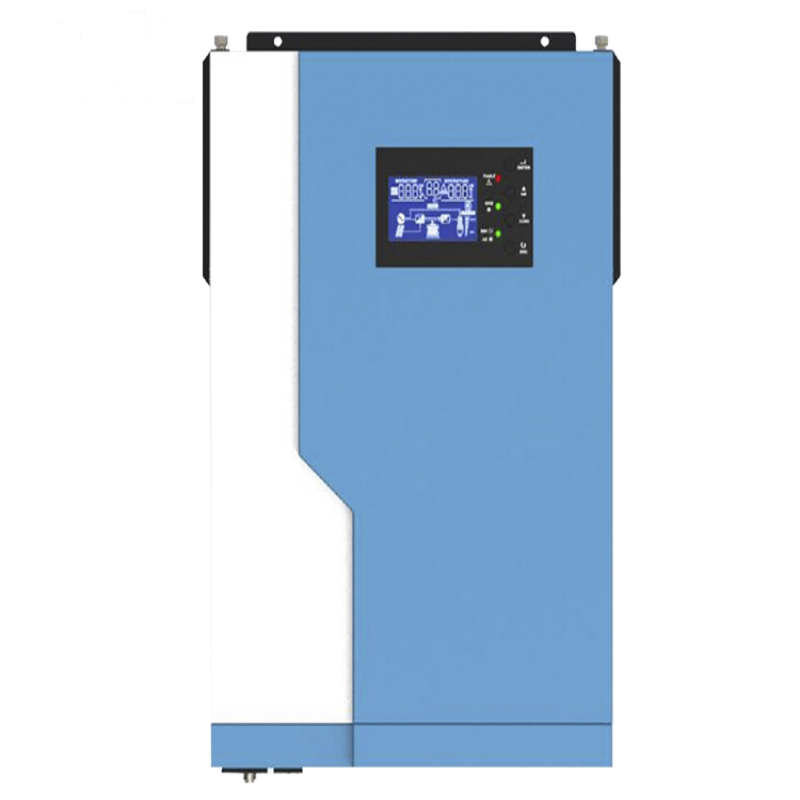

BWT 3.5KW MPPT Hybrid Inverter Pure Sine Wave Inverter LCD Display SCG2-3.5KW

This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

Feature

Pure sine wave inverter

Configurable input voltage range for home appliances and personal computers via LCD setting

Configurable battery charging current based on applications via LCD setting

Configurable AC/Solar Charger priority via LCD setting

Compatible to mains voltage or generator power

Auto restart while AC is recovering

Overload/ Over temperature/ short circuit protection

Smart battery charger design for optimized battery performance

Cold start function

Specification

Inverter Model	SCG2-3.5KW
Input Voltage Waveform	Pure sine wave
Nominal Input Voltage	230Vac
Frequency Range	50/60Hz
AC Surge Power	7000VA
Efficiency(Peak)PV to INV	97%
Efficienct(Peak) Battery to INV	94%
Transfer Time	10ms
Battery Voltage	24Vdc
Floating Charge Voltage	27Vdc
Overcharge Protecion	33Vdc
Maximum Charge Current	100A
Maximum PV Array Power	5000W
MPPT Range@Operating Voltage	120~450Vdc
Maximum PV Array Open Circuit Voltage	500Vdc
Maximum PV Efficiency	98%
Dimension	100300440
