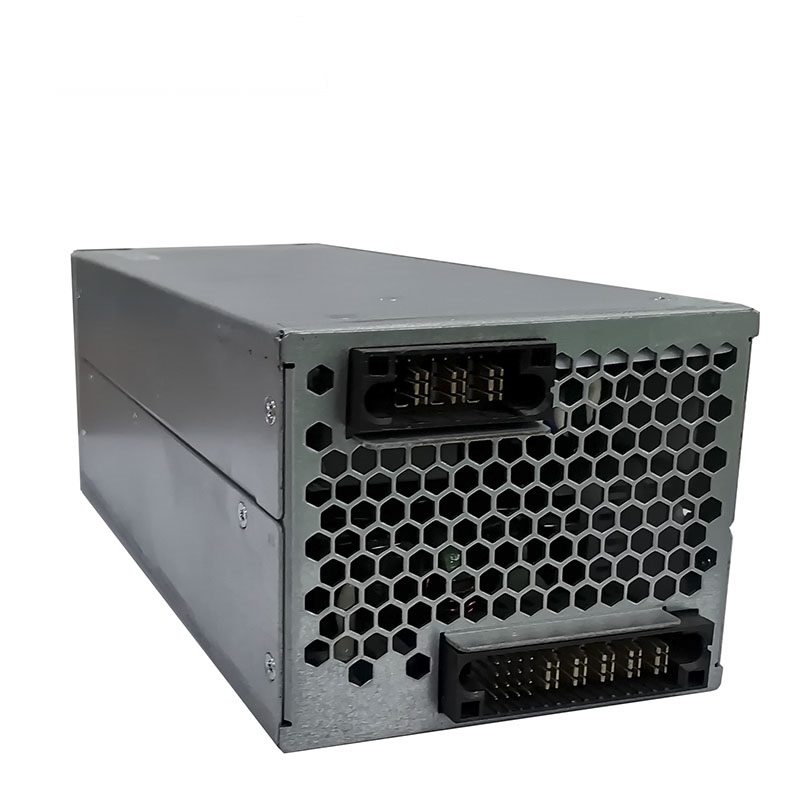

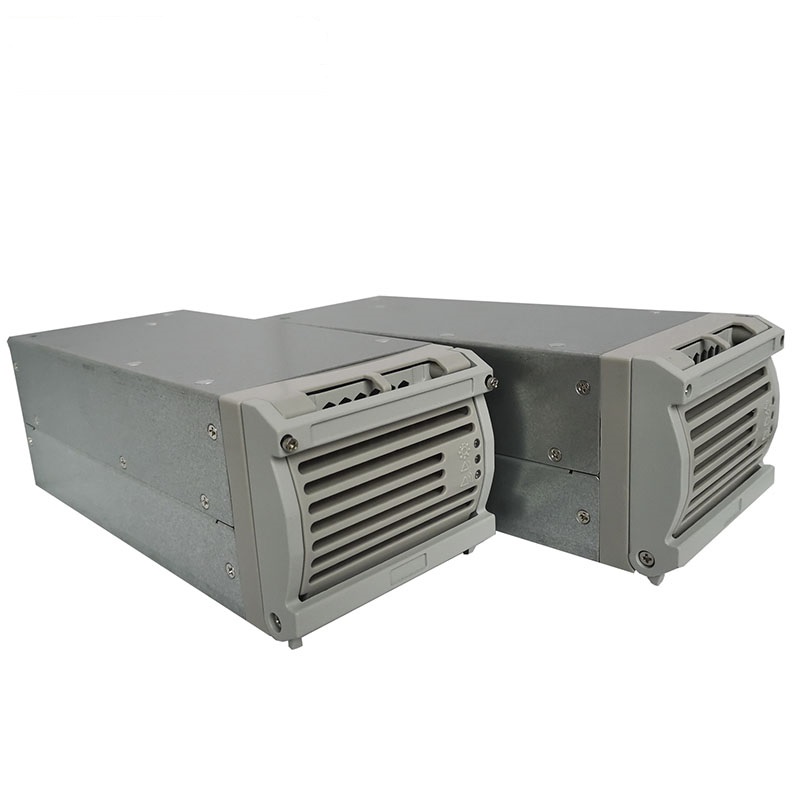

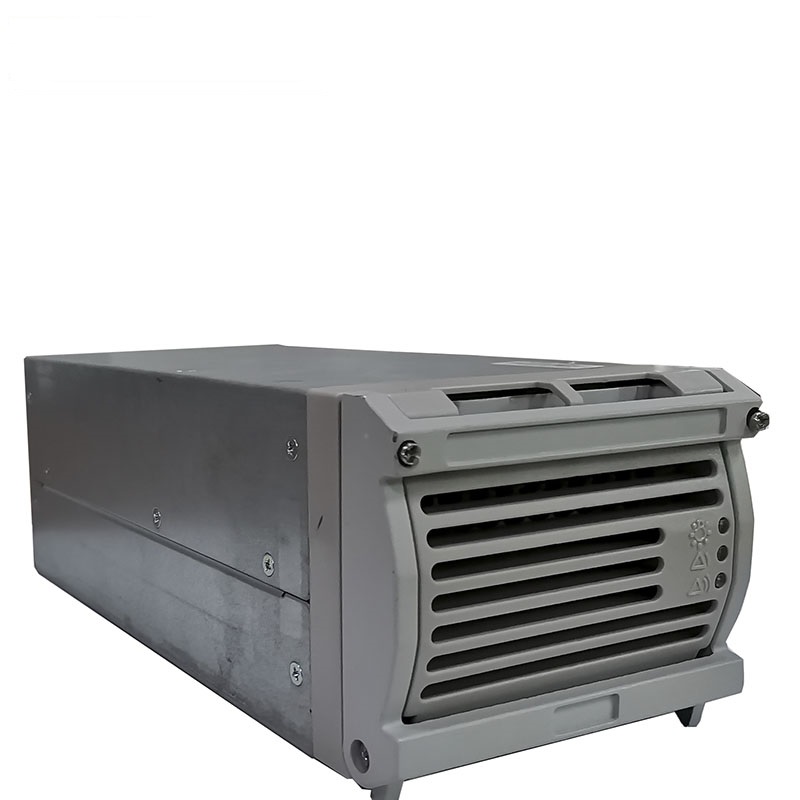

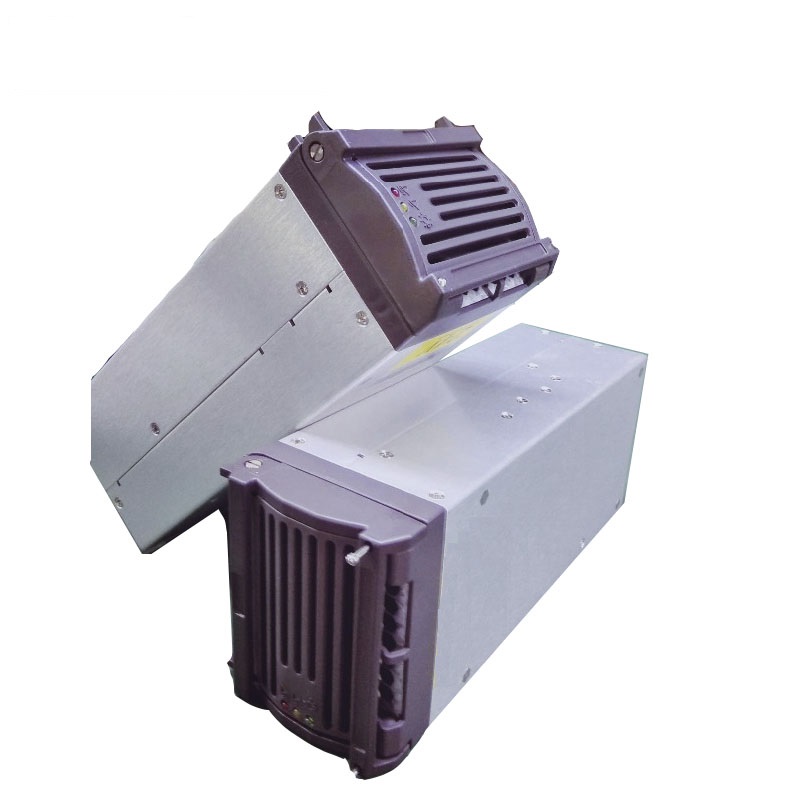

BWT 24Vdc/48Vdc Rectifier Module 90Vac To 290Vac/ 90Vdc To 400Vdc BR241800 BR483000
The rectifier module output current regulation and communication interruption ar...
The rectifier module output current regulation and communication interruption ar...
The rectifier module output current regulation and communication interruption are as follows:
The output current of the rectifier module can be adjusted according to the current command. The adjustment range of BR483000 is 1A~50A, the adjustment range of BR241800 is 1A~60A.
Communication fault more than 1 minute (Rectifier and Control monitor),A .Rectifier
module output Voltage automatic recovery default Voltage (BR483000 is 53.5V, BR241800 is 24V） and limited current function not working;b.if the rectifier modules are controller by monitor and Power off, then rectifier system will power on(if the rectifier fault, it can not be turned on again)
BR241200
Input Feature
Input | Single input |
Input Voltage Range | 90Vac to 290Vac |
Rate input Voltage | 110Vac / 220Vac |
Normal Input | 100Vac to 240Vac |
Frequency Range | 45Hz-65Hz |
Max Input Current | 6.82A±10%@176Vac/1200W |
Surge Current | Compliant Standard：ETSI300132-3 |
Efficiency | ≥90%@220Vac@ 220Vac 100% load |
PF | ≥0.99@220Vac/40A |
Leakage Current | <3.5mA@264Vac |
Input Fuse | L Wire ,Fuse 25A |
Max input Voltage | 310Vac |
Output Feature
Output Voltage | +24Vdc |
Output Voltage Regulation | +24±0.1Vdc |
Output Range adjustable Range | +21Vdc～+29Vdc |
Load sharing（50%～100% Loading） | ≤±5% |
Line regulation | ±0.1% |
Load regulation | ±0.5% |
Voltage precision | ±0.6% |
Min-current | 0A |
Rate current | 40A |
Peaking current | 44A |
Tempe. coefficient（1/℃） | ≤±0.02% |
Rate Capacity | 1200W(150Vac～290Vac) 600W(90Vac～150Vac) |
BR483000
Input Feature
Input | Single-phase two-wire |
Input Voltage | 90Vac to 290Vac，90Vdc to400Vdc |
Rate input Voltage | 220Vac |
Frequency Range | 45Hz-65Hz |
Max input Current | 18.5A±10%@155Vac/50A |
surge current | Compliant standard ：ETSI300132-3 |
Efficiency | ≥93%@220Vac 100% Load |
PF | ≥0.99@220Vac/50A |
Leakage current | <3.5mA@264Vac |
Rate capacity | 2900W(154Vac～290Vac)(215Vdc-400Vdc) 1200W(90Vac～154Vac)(90Vdc-215Vdc) |
Input Protection | L line ,Fuse 25A |
Max Input Voltage | 320Vac(Power cannot be damaged) |
Output Feature
Output Voltage | +53.5Vdc |
Output Default Voltage | +53.5±0.1Vdc |
Output Voltage adjust range | +43Vdc～+58Vdc |
Efficiency | ≥92%@220Vac 50-100% Load ≥93.2%@peak value |
Load sharing（50%～100% Loading） | ≤±5% |
Line Regulation | ±0.1% |
Load Regulation | ±0.5% |
Voltage Regulated Accuracy | ±0.6% |
Min- Current | 0A |
Rate Current | 50A |
Peaking Current | ≤55A |
Tempe. coefficient（1/℃） | ≤±0.02% |
