BWT Monitor Controller of Rectifier System 40~60Vdc M30.1.2V
The M30 is a compactsite monitoring module that captures module voltage, current...
The M30 is a compactsite monitoring module that captures module voltage, current...

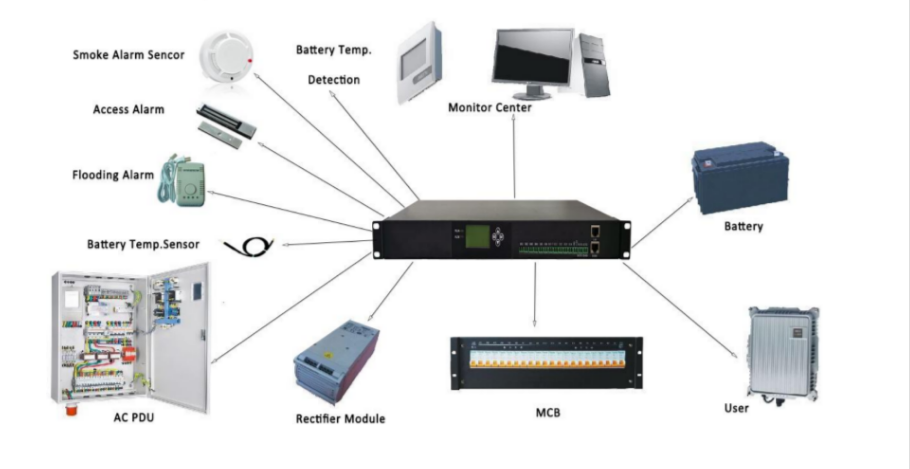

The M30 is a compactsite monitoring module that captures module voltage, current, and alarm information, and adjusts module current limit, overvoltage point, and control module power on/off. M30 provides RS485 communication interface (1 way north, 2 way south), rectifier module communication interface (support RS485 and CAN), sensor interface (ambient temperature and humidity, battery temperature), 6 input dry contact interface (can Associated access control, flooding, smoke, lightning protection, oil machine, temperature control failure, battery out of position and standby DI), 1 channel three-phase AC detection port, 6 output dry contact interface, 9 channel current detection, 2 channel battery melting Wire and 1 total load fuse detection, 5 levels power-down management, 9-channel user power record, battery management, system energy saving, etc., to meet the user's demand for power monitoring functions. The M30 supports the sound and light alarm, the access of the smart device, the dry contact upload, the RS485 upload, and the TCP/IP upload mode. The environment information and alarm information will be reported.
Technical | ||
DC Input | Voltage （V） | 40~60Vdc |
Current（A） | ≤0.5A | |
Power(W) | Less than 20W | |
Communication Interface | Rs485 | Default (Modbus Protocol RTU) |
TCP/IP | Default | |
SNMP | Customized | |
6 Dry Contact | AC Power Failure，AC Input Fault ，DC Output Fault ，Battery Over Voltage，DI Dry contact，Rectifier module output Over Voltage，Rectifier module output Under Voltage，Rectifier Module Fault，Rectifier Module Communication Fault，Rectifier Module Current Limiting，Rectifier module current non-equalize，Rectifier module Protection，Battery Power off ，Load Fuse，Battery Fuse，Battery Connect Fail | |
Signal Input | 1* Battery Temp,1*Ambient Temp,1*Air Conditioning ,. 1*Smoke Alarm.,1*Flooding Alarm.,1*Access Alarm.,1*Surge arrest,1* Fan,1*generator | |
Baud Rate | 9600 Bit/s | |
Storage Capacity | Historical Alarm Records | Up to 1000 Units |
Display Mode | LC | |
