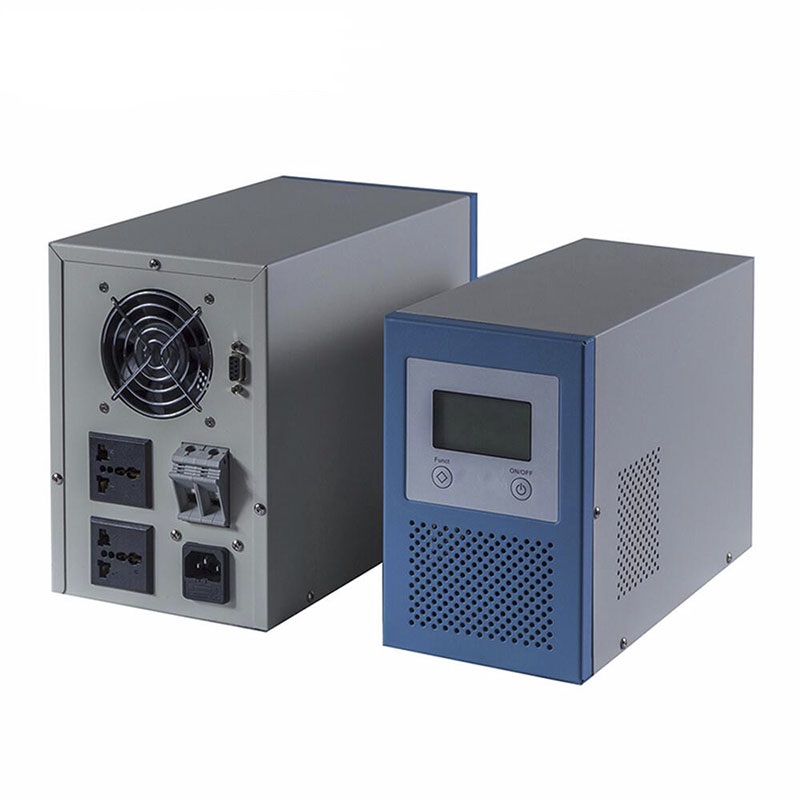

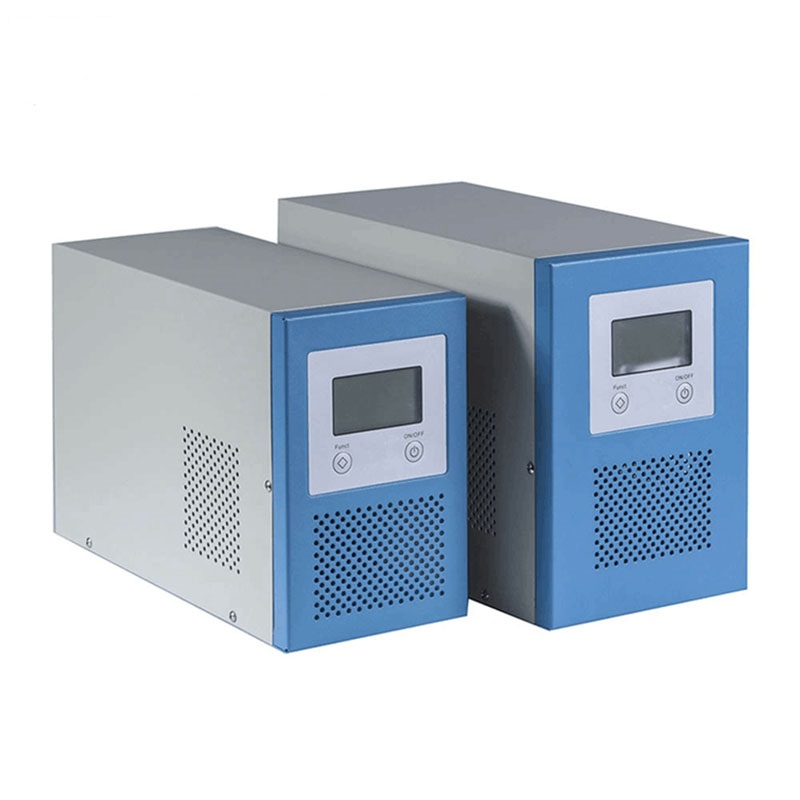

BWT Tower Pure Sine Wave Power Inverter With Charge Function 12V/24V 148-275Vac
With the double MCUs, the product provide different charge voltage and charfe cu...
With the double MCUs, the product provide different charge voltage and charfe cu...
With the double MCUs, the product provide different charge voltage and charfe current to realize chargemanagement for batteries of different types. Its mains supply preferred mode, energy-saving mode and battery preferred mode are all settable, thus makeing it easy to meet families. schools, streets, frontier defense, pasturing areas, industrial equipment, satellitecommunication equipment, military vehicle-born equipment, ambulances,police cars, ships, etc.
Pure sine wave output for compatibility with loads of different types
Visualization of operation status of the equipment through a digital LCD
A wide range of input voltage, accurate output and all automatic voltage stabilization
Settable battery type and charge current for the charge management of different batteries
Settable mains supply [referred mode, energy-saving mode and battery preferred mode for easy meeting of the needs of different user
Overall protection functions(battery overvoltage protection, battery under voltage protection, overload protection,short circuit protection and over temperature protection)
Type： | 300 | 500 | 700 | 1000 | |
Rated power | 300W | 500W | 700W | 1000W | |
Battery | Rated voltage | 12VD/24VDC | |||
Charge current | 10A | ||||
Input | Voltage range | 73-138VAC/145-275VAC | |||
Frequency | 45-65Hz | ||||
Output | Voltage range | 110VAC/220VAC；±5%( Inverter mode) | |||
Frequency | 50/60Hz±1%( Inverter mode) | ||||
Output wave | Pure sine wave | ||||
Switching time | ＜10ms( typical load) | ||||
Efficiency | ＞85%（80% Resistance load） | ||||
Overload | 110-120%/30S；＞160%/300ms； | ||||
Protection | Battery overvoltage/low voltage, overload, short circuit protection, over temperature protection, etc. | ||||
Operating ambient temperature | -10 - +40℃ | ||||
Storage ambient temperature | -15 - +50℃ | ||||
Operating/Storage ambient | 0-90% No condensation | ||||
Machine Size: L*W*H (mm) | 302*122*188 | 316*149*215 | |||
Package size: L*W*H（mm） | 375*195*260 | 410*215*480 | |||
Net weight/Gross weight(Kg) | 4.4/5.6 | 5.8/7 | 6.4/7.6 | 8.5/10 | |
