BWT 48Vdc 220Vac Hot-Swap Modular Power Inverter 1KVAS BWT48/220-1KVAS
BWT1500 serial 48Vdc &220Vdc modular parallel connection inverter is an inversio...
BWT1500 serial 48Vdc &220Vdc modular parallel connection inverter is an inversio...
BWT1500 serial 48Vdc &220Vdc modular parallel connection inverter is an inversion device that converts 48V dc/220Vdc power supplied by communication DC power supply into 220V/50Hz sinusoidal AC power. Through conversion on the input DC power, the Pure Sine wave inverter offers users stable and Non-distorted AC power. In case of a power failure in business places, it offers key devices the power of flexible output voltage and frequency.
Digital control: It adopts 32-bit DSP full digital and high-frequency SPWM technology, featuring strong anti-interference ability, fast calculation speed, high intelligence, accurate control precision and pure output waveform
N+1 parallel redundant design: It can form an N+1 parallel redundant power supply system. The modules are backup each other, with high reliability and flexible configuration.Large 128*64 digital LCD display data information,4 led display working;
No master-slave parallel technology: The operation and parallel connection of each module are independently controlled by the built-in DSP, no single point of failure, independent flow between modules.

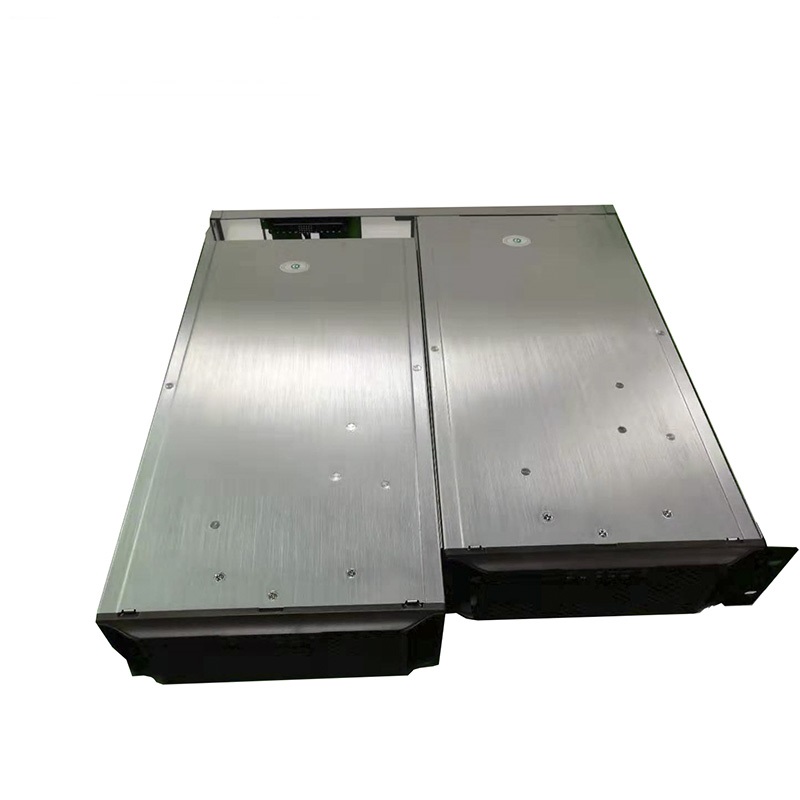

With hot plugging: no need to do any parameter setting and operation, plug and play, the module automatically enters the normal working state, maintenance and replacement is simple and fast.
Module built-in bypass: Users can choose inverter priority or bypass priority

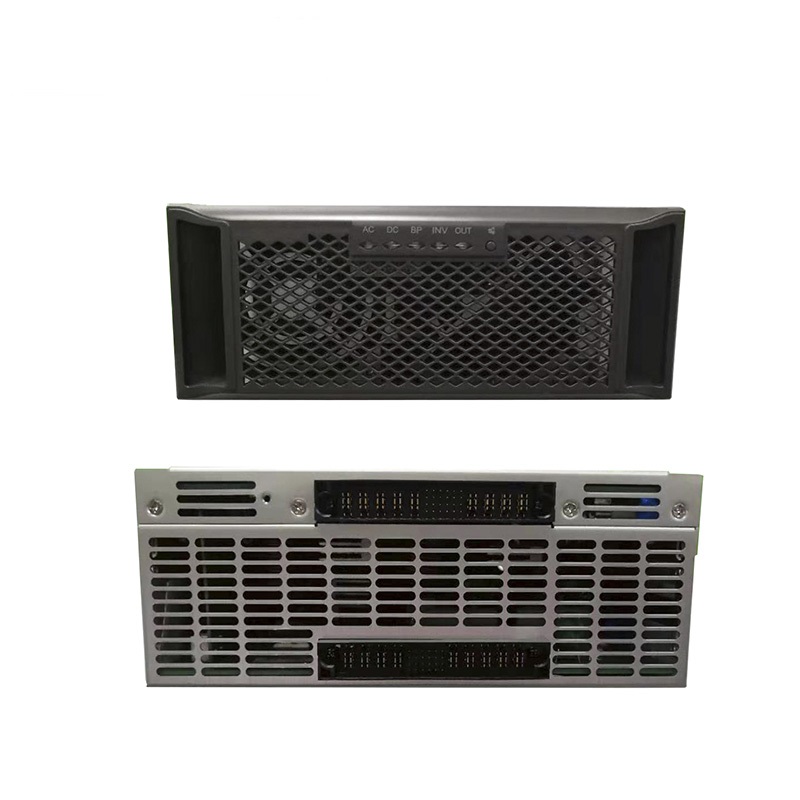

Monitoring management: indicator panel, fault sound and light alarm, RS485 communication interface and fault dry contact.
Protection function: It has the functions of input over-voltage, output over-voltage, over-temperature, short-circuit and so on.

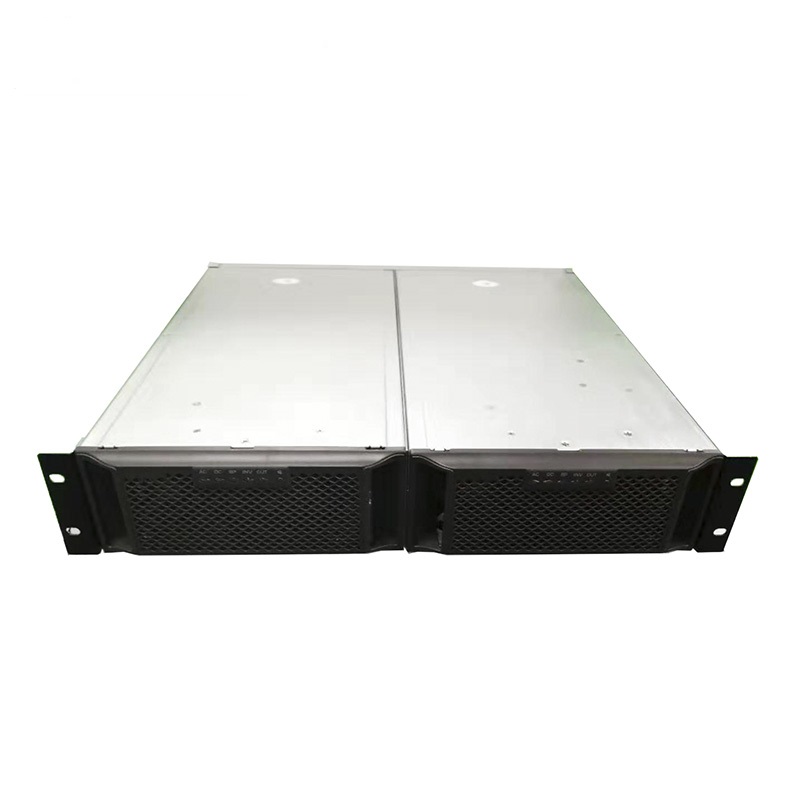

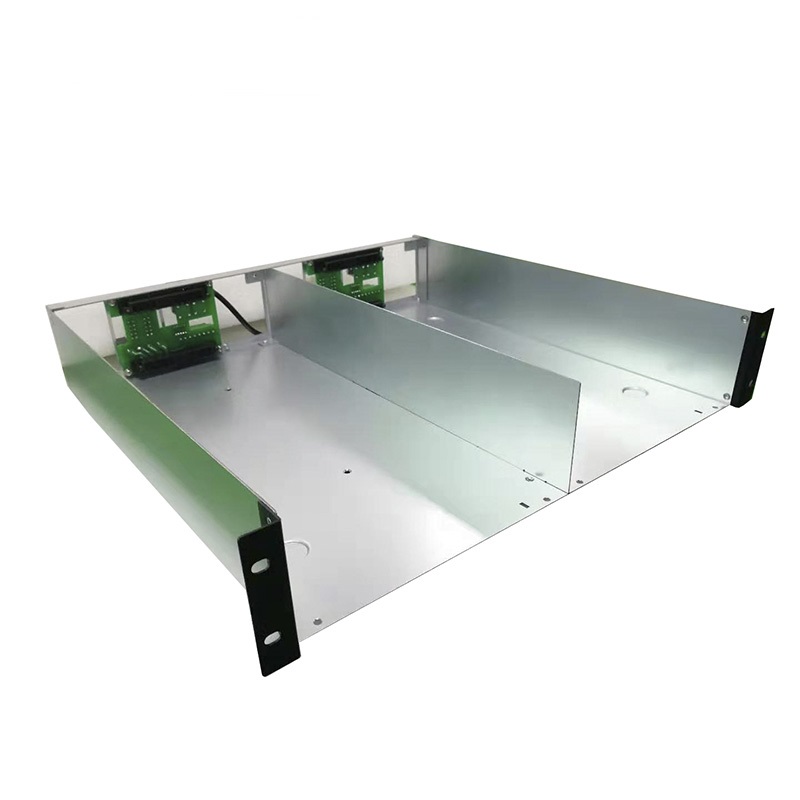

High power density: 1/2 19〞width design, the volume is only half the width of the conventional inverter, saving space and convenient parallel.
Model | BWT48/220-1KVAS |
INPUT | |
DC Input Voltage | 48Vdc |
DC Input Current | 21.0Max |
DC Input Voltage Range | 40-60V |
Backfill Noise Current | ≤10% |
PF | 0.8 |
AC BY-PASS INPUT | |
Input Voltage Range | 270V-190V(±10Vac) |
Rated Input Current | 4.5A |
Transfer Time | <12ms |
OUTPUT | |
Output Capacity | 1000VA |
Rated Output Capacity | 800W |
Rated output Voltage | 220VAC |
Rated Output Current | 3.6A |
Output Voltage Range | 220Vac(Tolerance ±1.5% ) |
Output Efficiency | ≥85% |
Output Frequency | 50Hz |
Frequency Range | 43~67Hz |
Output Wave | Pure sine wave |
THD | ≤3% (Line Load) |
Switch Time (By pass to Inverter mode) | ≤12ms (With Load) |
Output Frequency Range | 50±0.1% or 60±0.1% |
Dynamic Response Time | 5%(load 0←→100%) |
PF | 0.8 |
Output Over Current Protection | |
Over Load Capacity | Continue working 10min @105%<load<125% |
Over Load Capacity | Continue working1min @ 125%<Load<150% |
Over Temp. Protection | Yes |
short circuit Protection | Yes (Don’t test under AC Connect) |
Reverse connection protection | Yes |
ENVIRONMENT TEST PERFORMANCE | |
Ambient Temp. | -20~ +50℃ |
High temperature operation | 50±2℃ (rated load 24H) |
Low temperature operation | -20±2℃ (rated load 24H) |
High temperature storage | 80±2 ℃，24H |
Low temperature storage | -40±2℃，24H |
Humidity | 0~90%，No moisture condensation |
Operating Altitude (m) | Altitude Full power up to 2000m.derating -2% / 100m, max altitude 5000m |
PARALLEL MODE | |
Max Parallel quantities | 2 units |
