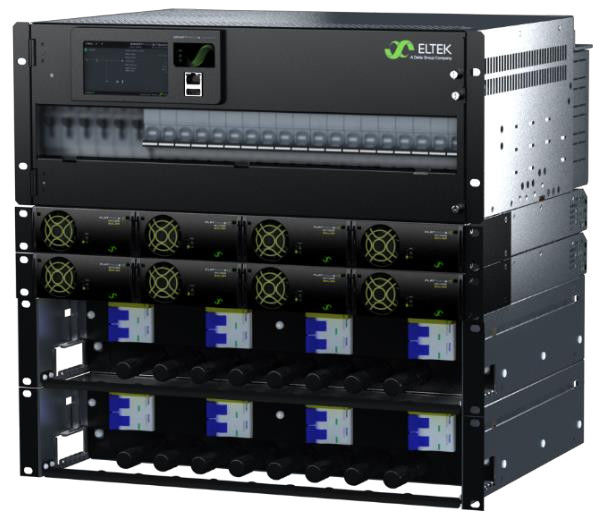

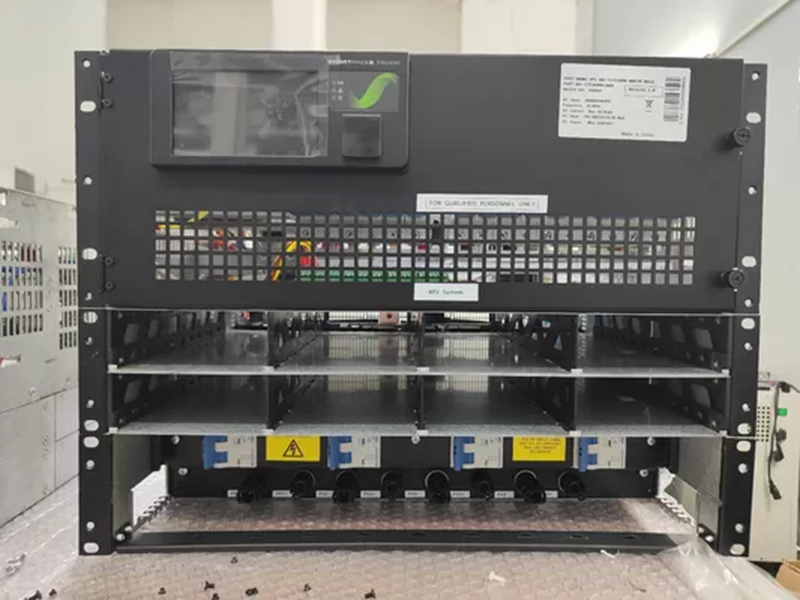

Custom made Hybrid Solar System FP2 48V 12+12.8KW 400V+N BD LD 3 phase 230V Telecom Power System with PV connection

MODEL

300A DISTRIBUTION

500A DISTRIBUTION

Part number (configured power systems)

CTOA0407S.4xxx

CTOA0810S.4xxx

POWER MODULES

Flatpack2 Solar Charger ¹⁾

Flatpack2 48/3200 HE Solar

INPUT DATA (SOLAR CHARGER)

Voltage (range)

85-420 VDC (operating range) 100-380 VDC (MPPT range)

Voltage (start-up)

150 VDC

Maximum current

20 ADC

PV CONNECTION PANEL

Service switches for PV arrays

4 pcs 2-pole

8 pcs 2-pole

DC SPD Type 2 (option)

Up to 4 pcs

Up to 8 pcs

OUTPUT DATA

Voltage

-48 VDC

-48 VDC

Current (maximum)

300 A

500 A

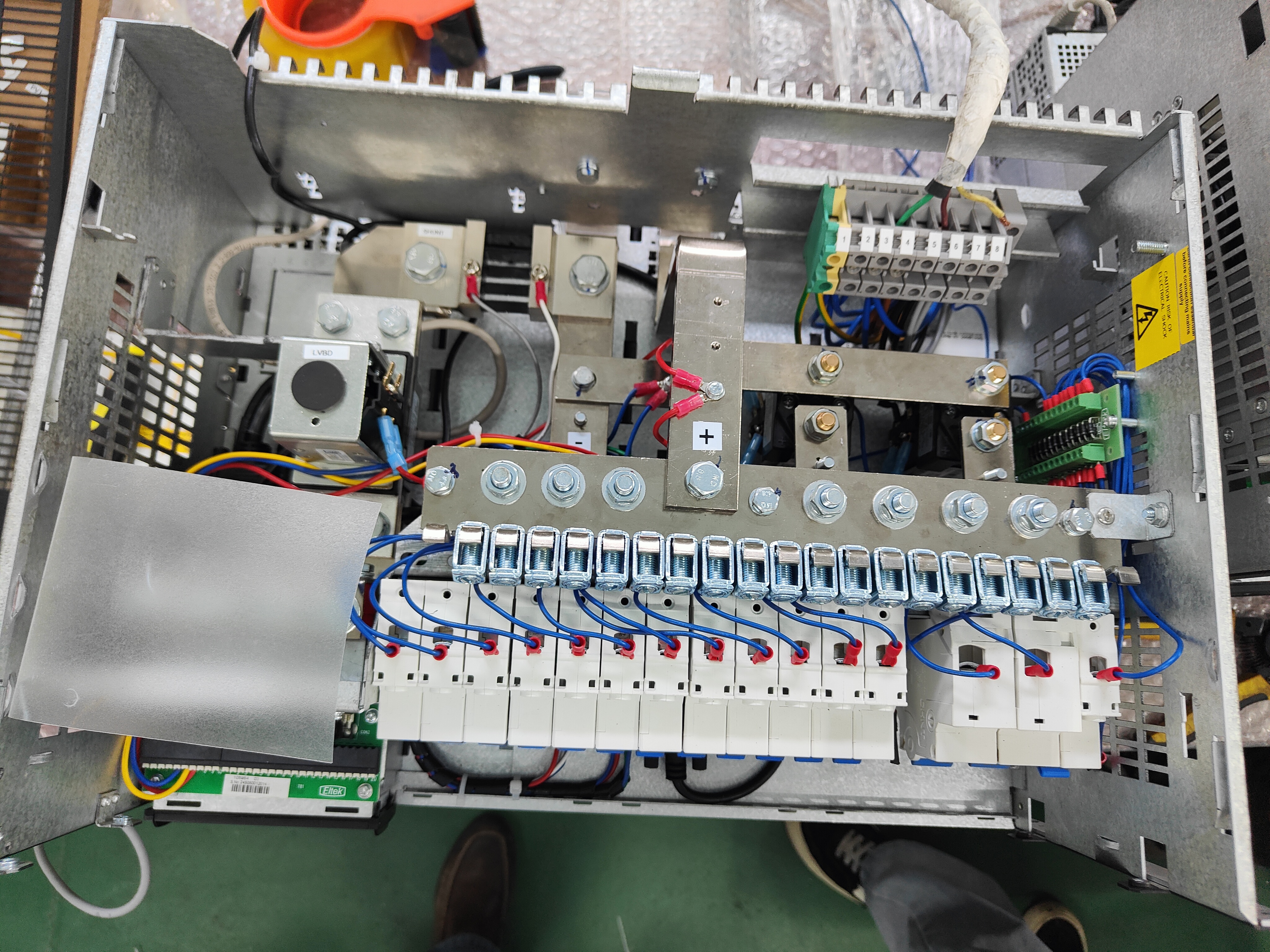

BATTERY DISTRIBUTION

Number of breaker positions

6x (single pole)

8x (single pole)

LVBD

300 A

500 A

Battery breaker type

Plug-in type (D-frame)

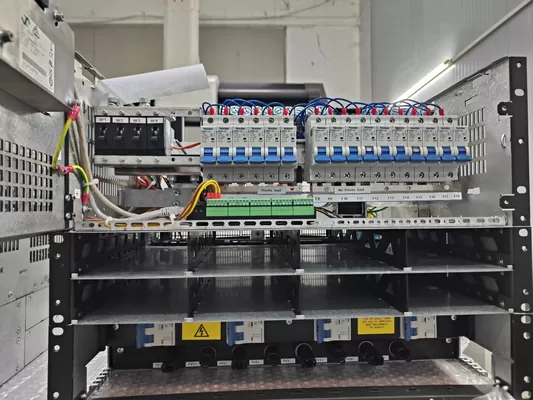

LOAD DISTRIBUTION

Number of load positions

Up to 18x 18 mm

Up to 16x 18 mm

LVLD 1

300 A

(max 12x 18 mm or 4x 27 mm + 6x 18mm)

300 A

(max 10x 18 mm or 4x 27 mm + 4x 18mm)

LVLD 2 (option)

150 A

(max 6x 18 mm or 4x 27 mm)

150 A

(max 6x 18 mm or 4x 27 mm)

Load breaker type

DIN rail mounted, 18 mm and 27 mm wide

CONTROL AND MONITORING

Control and Monitoring unit ²⁾

Smartpack2 Touch + Smartpack2 Basic + I/O Monitor Type2

Mounting location

Door panel mounted

Local operation

Menu guided operation via touch-pad and graphical colour display

Remote operation

Ethernet for remote/local monitoring and control via WEB Browser
