230VAC/3x400VAC Input Up to 90kVA Output High Efficiency Modular Inverter for Industry

Description

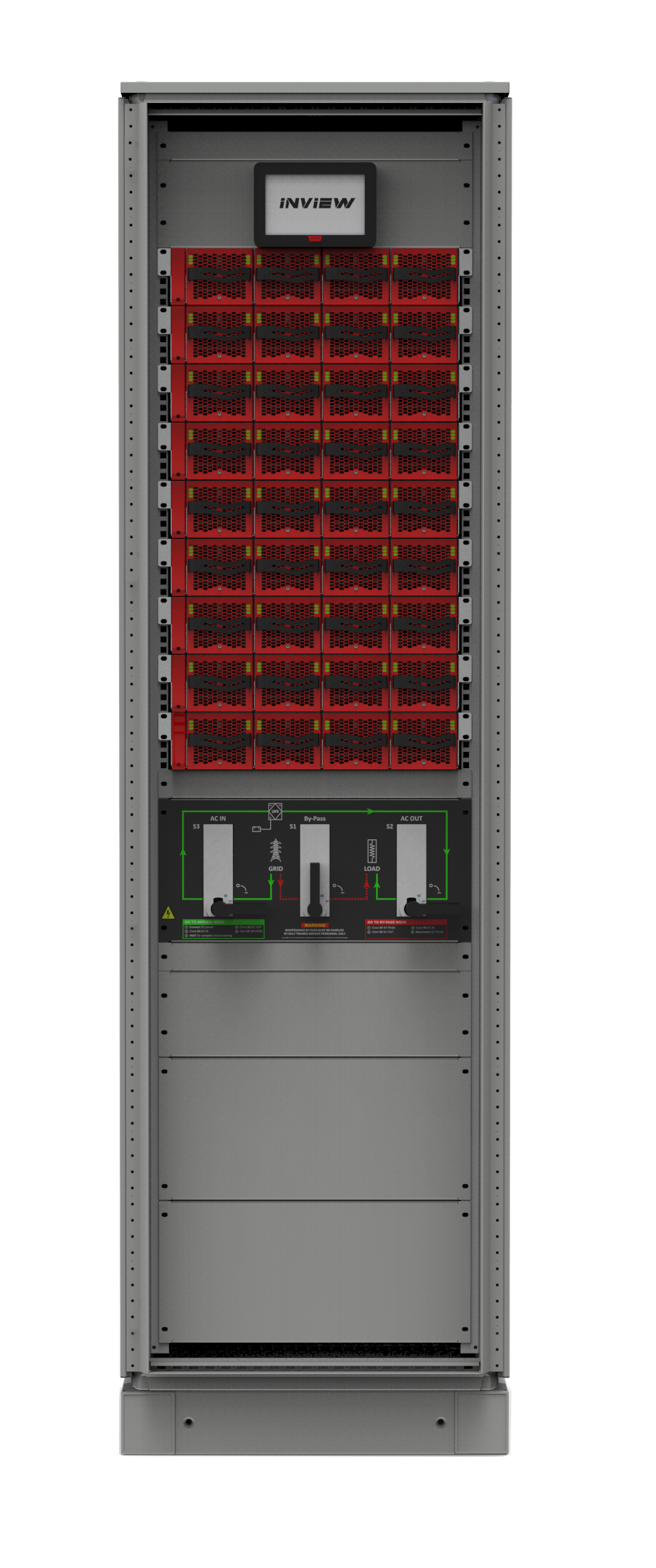

Based on the Bravo ECI, this system is a compact and modular power conversion solution providing a pure sine wave AC supply. In conjunction with a DC Power system, it provides an excellent AC backup solution. It uses the latest inverter technology, providing a conversion efficiency of up to 96% in AC to AC and above 93.7% in DC to AC. The ECI technology eliminates all single points of failure and is hot swappable (meaning a very easy and cheap maintenance).

Standard with options

These systems have been optimized to offer you the best quality at a lower price. Since they are standard system, we can also reduce the lead time to deliver even faster. And to meet as many customers’ needs as possible; we offer you options to customize our standard Bravo ECI systems. If you do not find the right solution, we can always offer customized solutions.

Main Features

• Reduced price and lead time

• Reliability: truly redundant solution (in terms of modules and power sources);

• By-pass included: natively integrated by-pass function;

• Permanent AC to AC double conversion: great disturbance rejection and 96% efficiency;

• Compact and easy to install and maintain
